Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Vibrating Shaker Table Vibration Tester
Specifications
Power :
20KW
Frequency Range :
5Hz to 3500Hz
Accuracy :
±5%
Rated Sine Force :
6000 N
Vibration Directions :
Vertical & Horizontal
Moving Coil Size :
Dia. 230 mm
Vibration Wave :
sine, random, shock
MOQ :
1
Moving Coil Weight :
6.5kg
Voltage :
380 V
Protection Class :
IP55
Max. Acceleration :
1000m/s2
Max. Loading :
180 Kg
Rated Random Force :
6000 N
Place of Origin :
Guangdong, China
Impact Displacement :
25mm
Brand Name :
ASLI
Max. Speed :
1.6m/s
Description
Vibrating Shaker Table Vibration Tester
The Vibrating Shaker Table Vibration Tester is designed to perform comprehensive vibration testing including sinusoidal vibration, broadband random vibration, and classic pulse testing (half sinusoid, trapezoid, back peak saw tooth) with shock response spectrum analysis. This system can be integrated with climate chambers for combined mechanical and environmental condition testing.
This high-frequency vibration test system serves critical applications across defense, weapons, aerospace, aviation, communications, electronics, electrical appliances, transportation, and consumer goods industries. The equipment provides comprehensive testing capabilities for multiple environmental conditions including climate and mechanical stress factors.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p)mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450

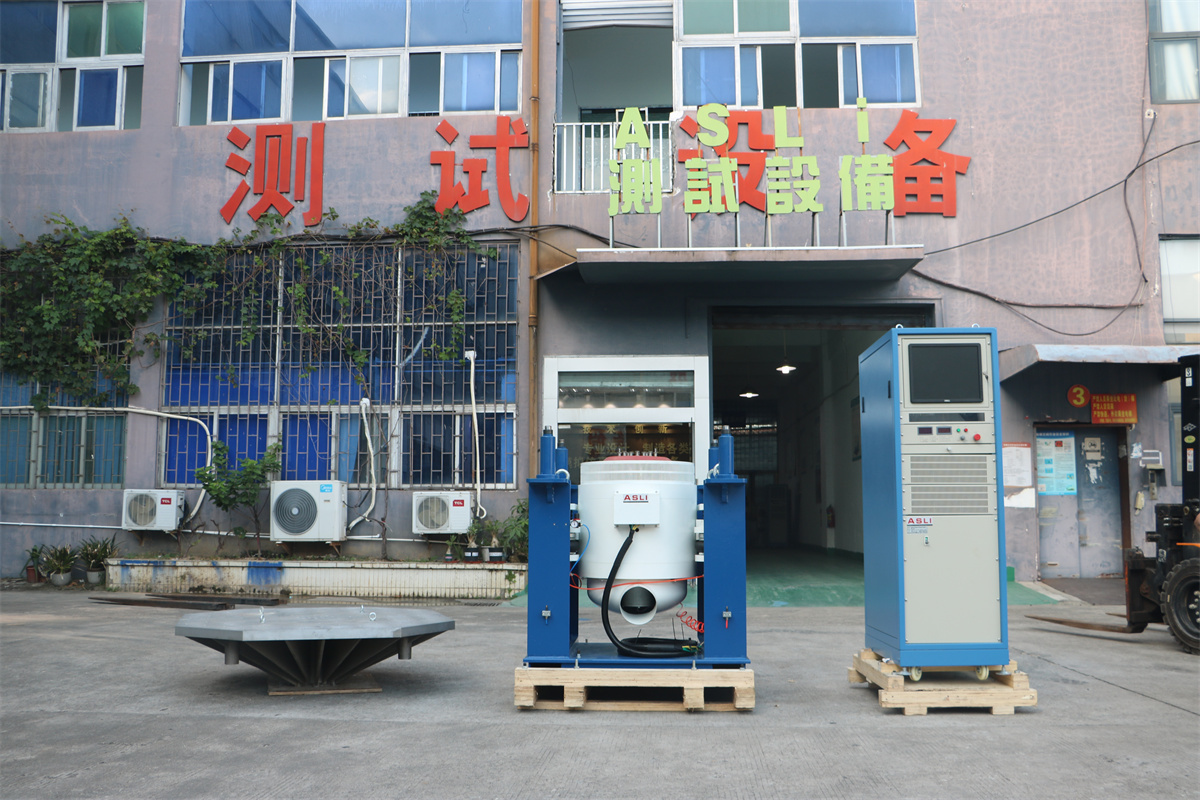

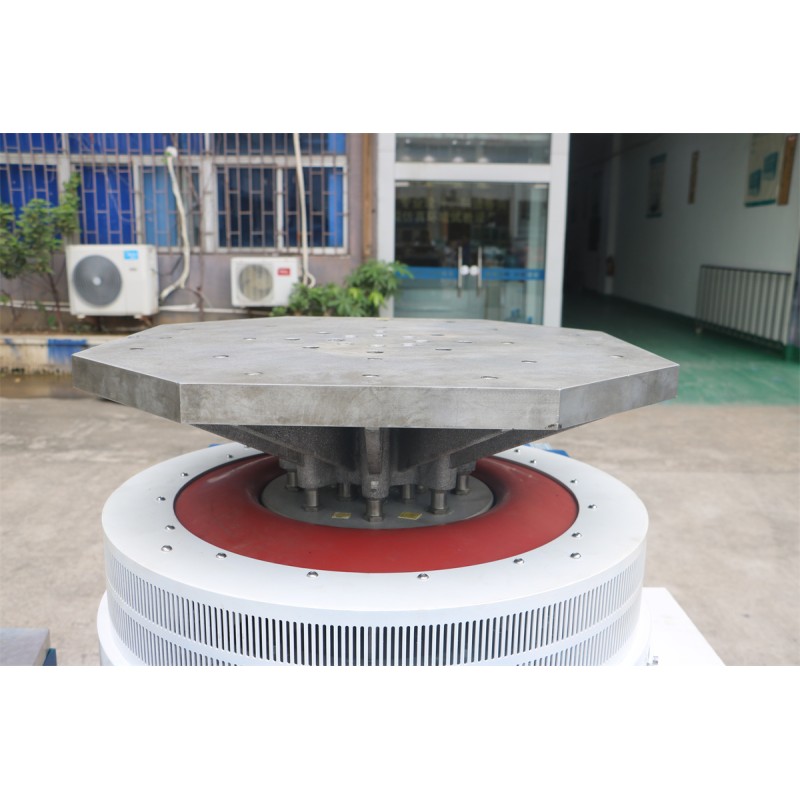

Vertical Expander System
The VT vertical extended-bench and specialized clamps are precision-calculated and elaborately designed to deliver optimal performance. These components feature perfect structure, high-quality materials, and superior workmanship to ensure customers achieve the best testing results.
Vibrating Shaker Table Vibration Tester

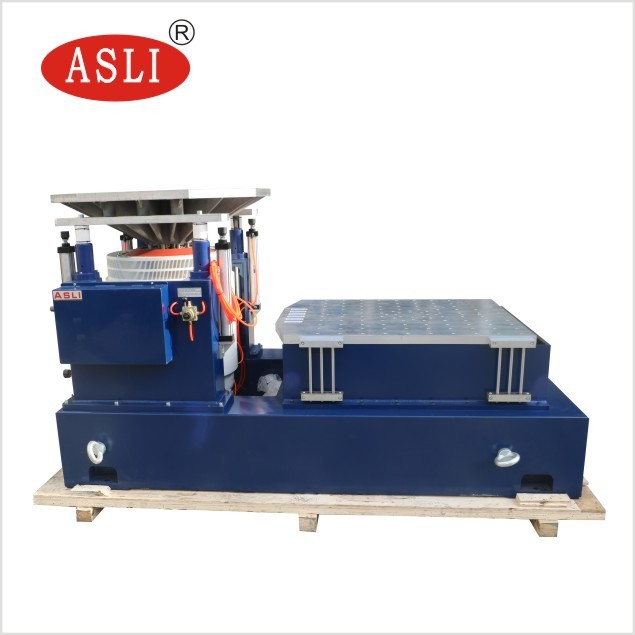

Horizontal Expander System
The horizontal expander system enables higher acceleration and working frequency with small loading benches, significantly improving the overall machine's loading capacity and performance. The horizontal bench and vibration bench are integrated as a single unit, featuring perfect structure for convenient installation and adjustment.
Key features include static pressure track with V-shape design, providing excellent slope-resistant and bias-loading resistant capabilities. The built-in oil pump offers superior structure and easy operation.
Vibrating Shaker Table Vibration Tester
Product Gallery
Vibrating Shaker Table Vibration Tester Vibrating Shaker Table Vibration Tester Vibrating Shaker Table Vibration Tester Vibrating Shaker Table Vibration Tester Vibrating Shaker Table Vibration Tester Vibrating Shaker Table Vibration Tester
Our Company
Vibrating Shaker Table Vibration Tester
With 28 years of experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our laboratory package simulated vibration test equipment with slip table represents our star product line, and we have obtained CE certification for this equipment.
Packing & Delivery
Vibrating Shaker Table Vibration Tester
Our Service Commitment
  • High quality guarantee on all equipment
  • Shipment with complete professional documentation
  • Customized packing according to customer requirements with photos provided before shipment
  • Quick response within 48 hours and solution provision within 3 working days
  • Professional after-sales service from experienced engineers
  • Comprehensive 12-month warranty period
Industry Presence
Vibrating Shaker Table Vibration Tester
Contact us today to discuss your Vibrating Shaker Table Vibration Tester requirements. Our team is ready to provide expert guidance and customized solutions for your testing needs.
