High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
High Frequency Vibration Mechanical Sieve Shaker
Specifications
Price :
$23,500
Power :
20KW(26.82hp)
Acceleration :
100g
Moving coil weight :
6.5 Kg
Displacement :
51mm
Accuracy :
+/-10%
Vibration force :
10KN
Protection Class :
IP55
Vibration direction :
vertical + horizontal
Brand Name :
ASLI
Moving coil size :
Dia. 240mm
Max. Loading :
180 Kg
Voltage :
380 V
Rated Acceleration :
1000 m/s2
MOQ :
1
Dimension of Moving coil :
Φ230 mm
Place of Origin :
Guangdong, China
Rated Speed :
1.6 m/s
Frequency Range :
3-3500Hz
Description
High Frequency Vibration Mechanical Sieve Shaker
Our High Frequency Vibration Mechanical Sieve Shaker incorporates advanced technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. This sophisticated system enables comprehensive testing capabilities across X, Y, and Z axes for sinusoidal vibration and broadband random vibration tests, as well as classical pulse testing (half-sine, trapezoidal, sawtooth wave) and shock response spectrum analysis.
Widely utilized in defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer goods industries.
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Technical Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3-3500 3-3500 3-3000 3-3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated Displacement (p-p) mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving Coil (Kg) 6.5 12 14 30
Dimension of Moving Coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, Horizontal, Vertical+Horizontal Vibration
Vertical Expander Features
VT vertical extended-bench with specified clamps features precision calculation and elaborate design to ensure optimal performance through perfect structure, high-quality materials, and superior workmanship.

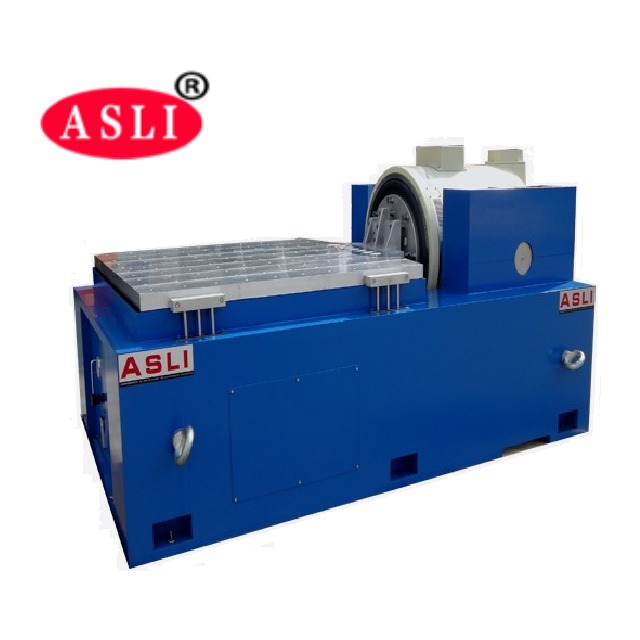

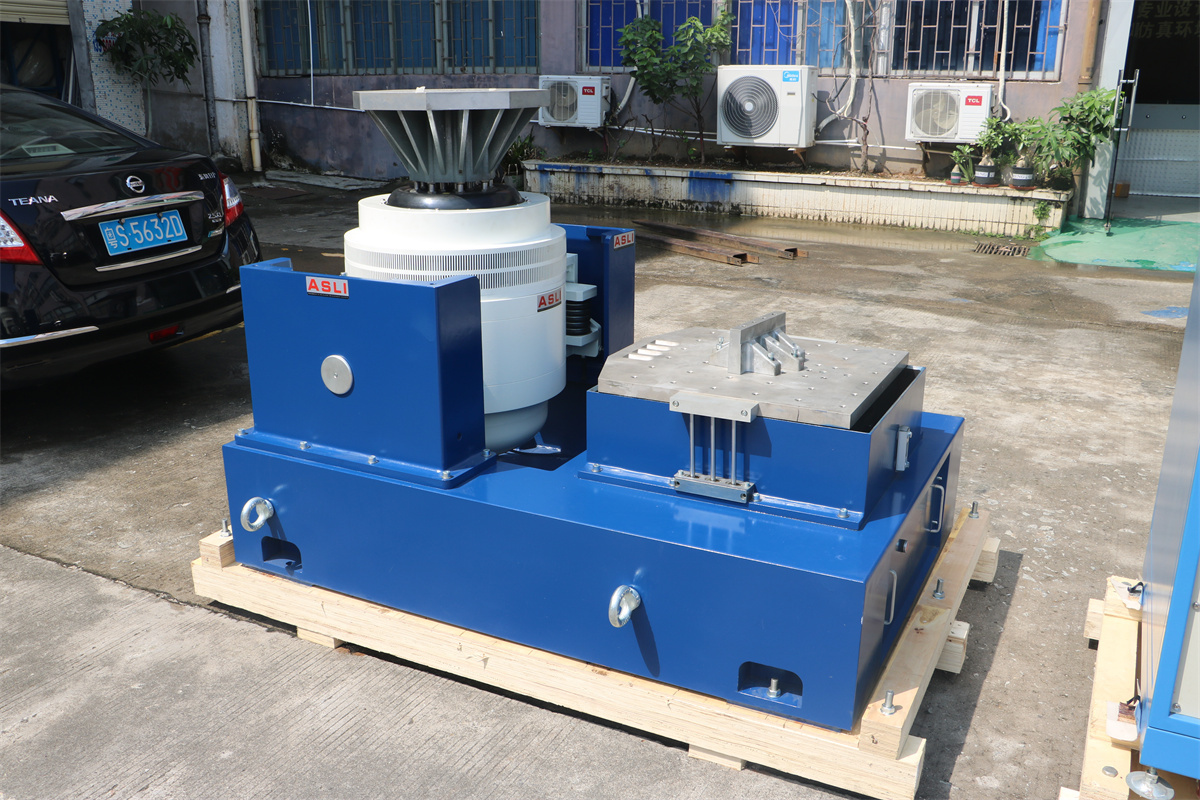

Horizontal Expander Features
  • Small loading bench design enables higher acceleration and working frequency
  • Enhanced loading capacity and overall machine performance
  • Integral horizontal bench and vibration bench with perfect structure
  • Convenient installation and adjustment
  • Static pressure track with V-shape design
  • Capacity for slope-resistant and bias-loading resistant operation
  • Built-in oil pump with optimized structure for easy operation
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Product Gallery
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Packaging & Delivery
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
We provide professional, environmentally friendly, convenient, and efficient packaging services to ensure the complete safety of your goods during transportation.
Company Profile
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Mechanical Shock Tester
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Transportation Simulator Vibration Tester
High Frequency Vibration Mechanical Sieve Shaker High Frequency Vibration Mechanical Sieve Shaker
Drop Test Machine
With 28 years of experience, we are a dedicated testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machines for packages and cartons are star products that have obtained CE certification.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DAP, DDU, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
