Specifications
Vibration Directions :
Three Directions Free Vibration
Vibration Wave :
sine, random, shock
Brand Name :
ASLI
MOQ :
1
Input :
1 channel
Sine Force :
10000N
Protection Class :
IP55
Place of Origin :
Guangdong, China
Frequency Range :
3-3000Hz
Accuracy :
+/-1%
Rated Speed :
1.8m/s
Acceleration Sensor :
1 pc
Voltage :
380 V
Power :
20kw
Rated Displacement :
51mm
Max Loading :
270Kg
Rated Random Force :
10000N
Rated Acceleration :
1000m/s2
Description
Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Advanced testing equipment designed for comprehensive evaluation of automotive shock absorbers through computerized electronic control systems.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max. Loading (Kg) Moving Coil (Kg) Dimension of Moving Coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 51 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
Technical Parameters of Vertical Expander
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Technical Parameters of Horizontal Expander
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
High Frequency Vibration Test Machine Specifications
  • Well-designed dynamic circle skeleton with higher stage axial resonance frequency
  • Two-magnetic circuit design with low magnetic flux leakage, compact and rational structure
  • Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for superior eccentric load capacity
  • Trunnion isolation foundation dedicated to hormone use with convenient mobile installation
  • Advanced technology moving system ensuring high reliability of dynamic circle
  • New duct design for enhanced cooling effect
  • High static stiffness and small dynamic stiffness bearing balloon for improved vibration table bearing capacity and low-frequency performance

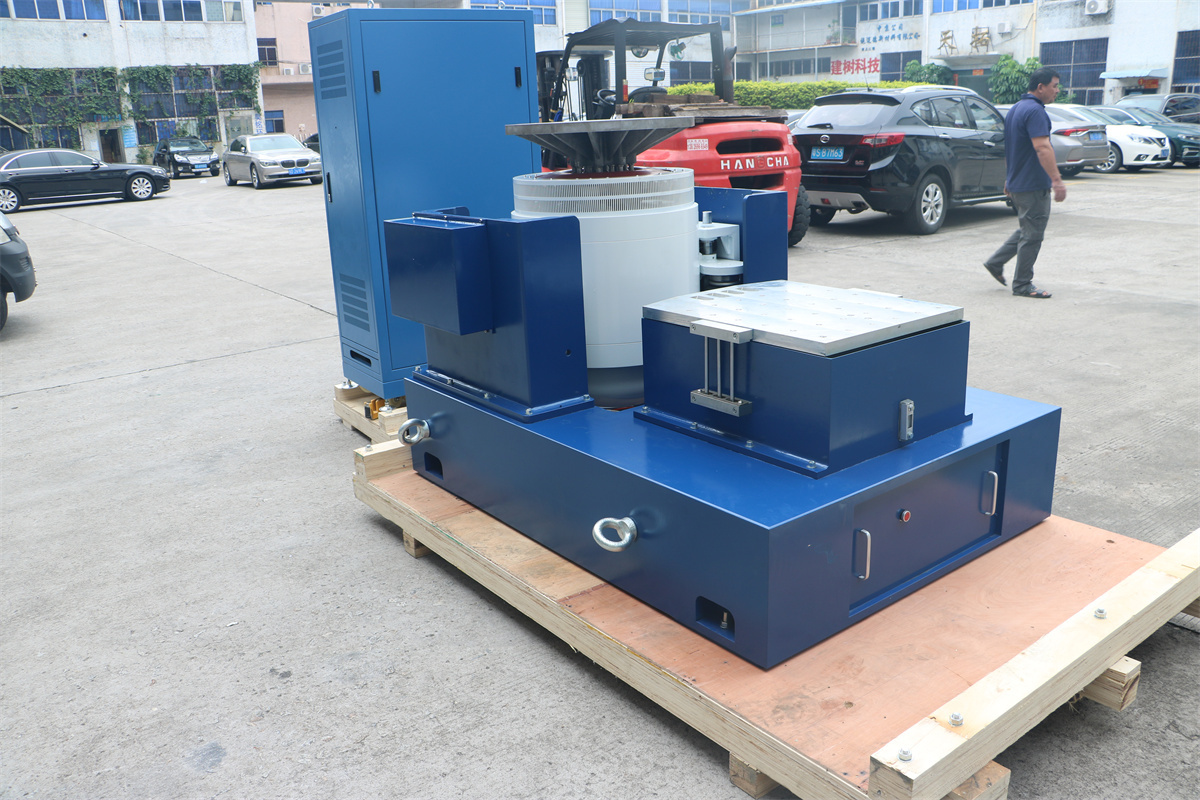

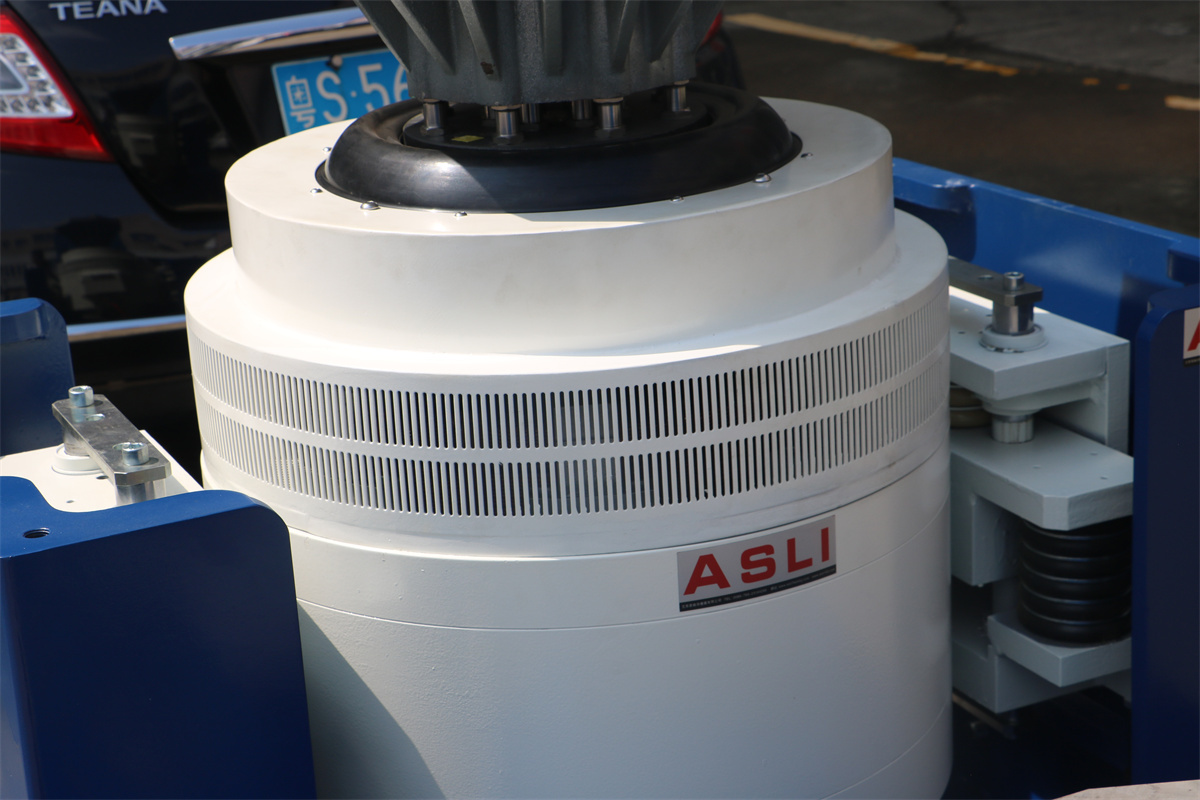

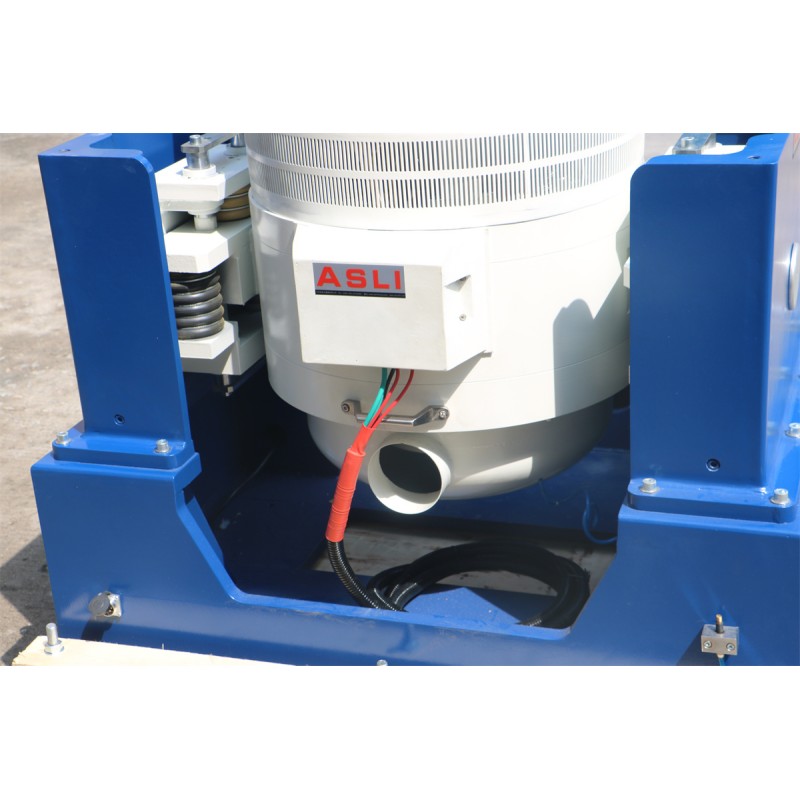

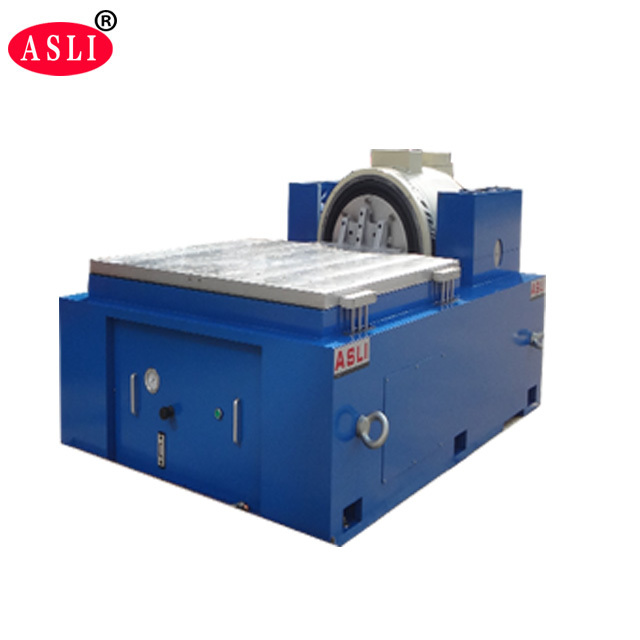

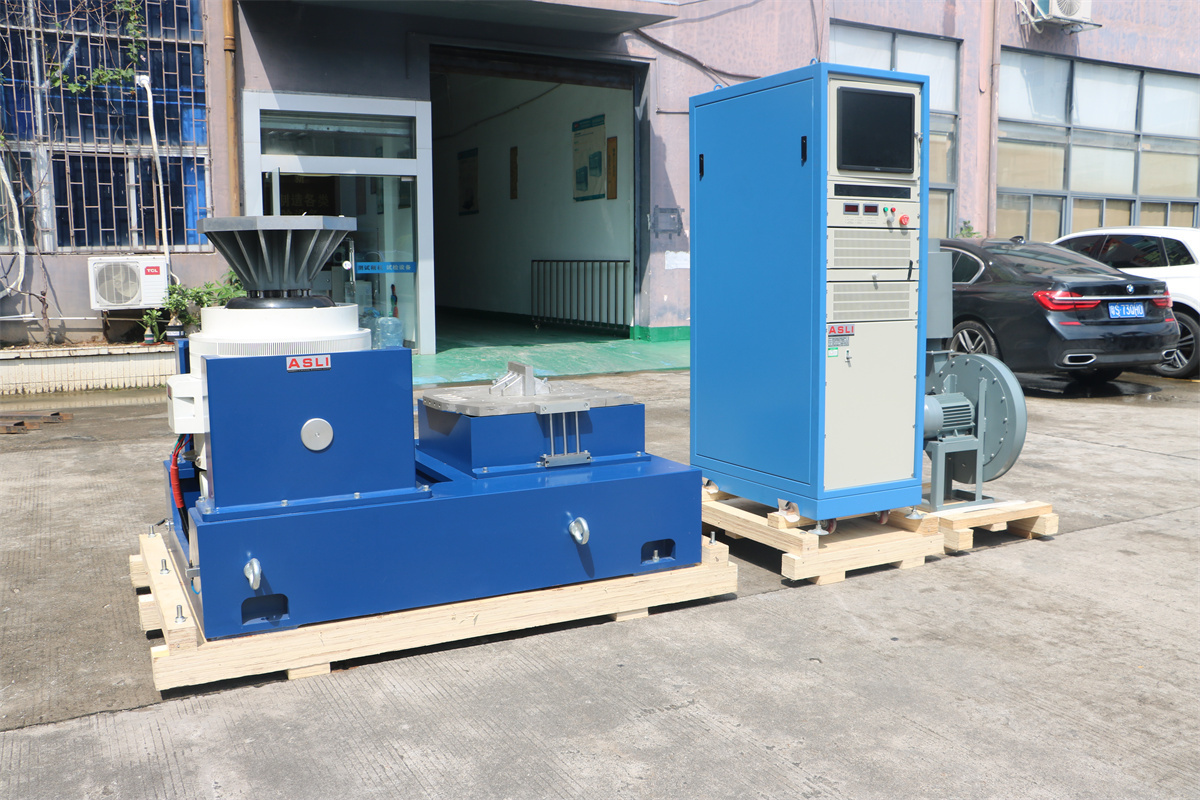

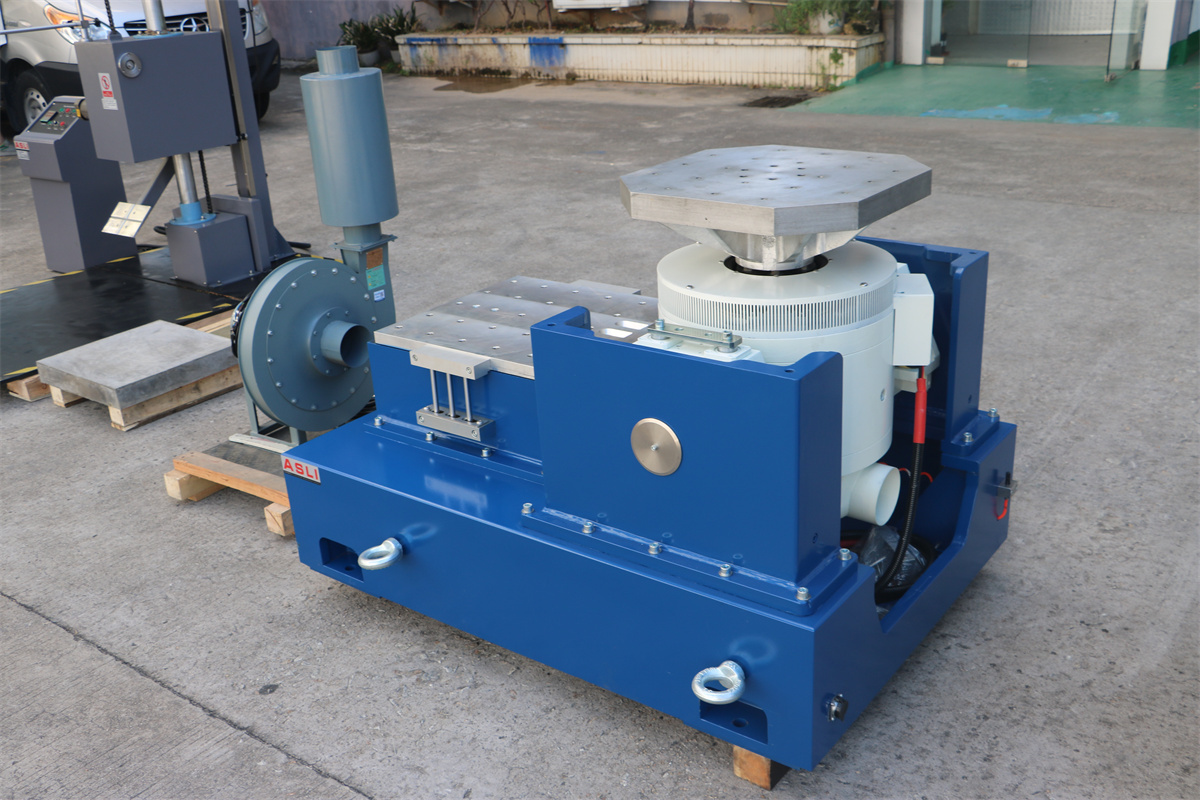

Detailed Product Images
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Other Products
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Our Company
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
ASLI specializes in manufacturing: climatic chambers, temperature chambers, humidity chambers, walk-in chambers, UV aging chambers, thermal shock chambers, xenon chambers, xenon combined UV aging chambers, PCT chambers, HAST chambers, vibration chambers, electrodynamic shakers, mechanical shock testers, and climatic combined vibration chambers.
Packing & Delivery
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Our Service
Customized Computerized Electronic Automobile Shock Absorber Testing Machine Customized Computerized Electronic Automobile Shock Absorber Testing Machine
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
For more information about our Customized Computerized Electronic Automobile Shock Absorber Testing Machine, please don't hesitate to send your inquiry.
