Specifications
Vibration Directions :
Vertical Vibration+Horizontal vibration
Voltage :
380 V
Moving Coil Weight :
14kg
Sine force :
10000N
Brand Name :
ASLI
Certification :
CE,Third party calibration qualification report
Vibration Wave :
sine, random, shock
Protection Class :
IP55
Frequency Range :
5 Hz to 3000Hz
Max. Loading :
270 Kg
MOQ :
1
Power :
20KW
Moving Coil Diameter :
Φ240
Rated Speed :
51 m/s
Place of Origin :
Guangdong, China
Accuracy :
+/-1%
Impact Displacement :
51mm
Control Method :
Amplifier
Rated Acceleration :
1000 m/s2
Description

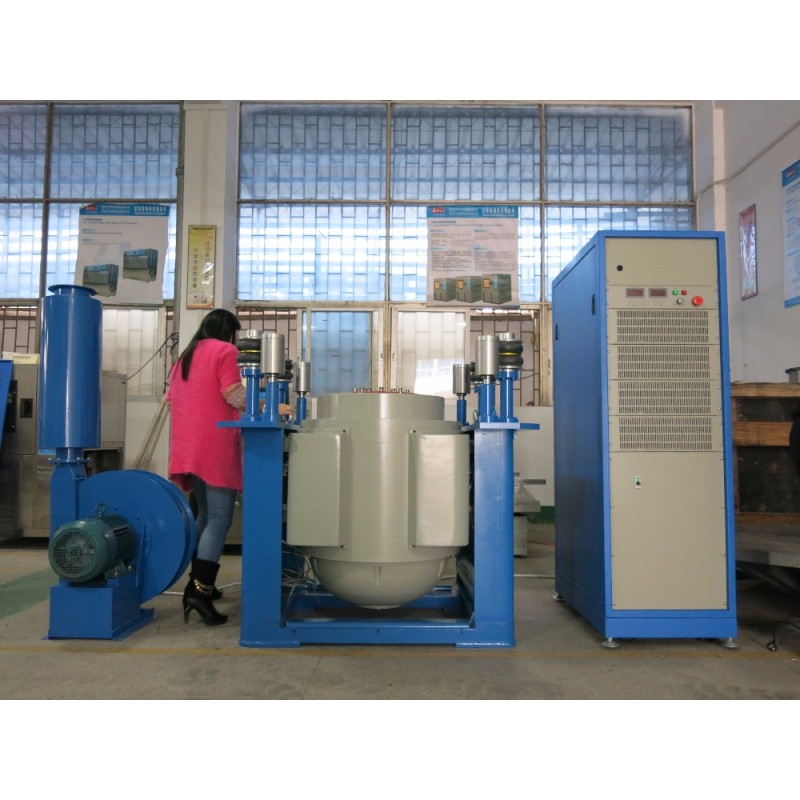

ISTA Standard Package Vibration Test Equipment
Our Package Vibration Test Equipment incorporates advanced double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, and linear guidance with trunnion isolation technology. This sophisticated design enables comprehensive X, Y, Z three-axis sinusoidal vibration testing and broadband random vibration tests, along with classical pulse testing (half-sine, trapezoidal, sawtooth wave) and shock response spectrum analysis.
These vibration testing systems are extensively utilized across defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer goods industries.
Testing Capabilities
Frequency Range: 5 Hz to 3000 Hz
Testing Modes: Fixed frequency, sweep back and forth, sine, random, shock
CE Certified High Frequency Vibration Shaker Applications
Automotive electronics devices, motor meter assemblies, automobile storage batteries, automotive electric equipment, automotive motors, water-soluble dielectric batteries, safety valves, auto air conditioning compressors, and related components.
Technical Specifications
Model Rated Sine Force (N) Rated Random Force (N) Frequency Range (Hz) Rated Acceleration (m/s²) Rated Speed (m/s) Rated Displacement (p-p) mm Max Loading (Kg) Moving Coil (Kg)
ES-3300030003-350010001.6251003.5
ES-3a300030003-35004001.6401209
ES-6600060003-350010001.6251806.5
ES-6a600060003-350010001.65125012
ES-1010000100003-300010001.85127014
ES-2020000200003-300010001.85130030
ES-3030000300003-280010001.85145040
ES-4040000400003-280010001.85150050
ES-5050000500003-270010001.85175050
ISTA Standard Package Vibration Test Equipment Supplier
Key Features
  • Carefully designed moving coil skeleton with higher first-order axial resonant frequency
  • Light armature construction with high stiffness, supporting frequencies up to 3500 Hz
  • Computer-controlled operation with immediate data storage capabilities
  • Real-time control chart display for monitoring test parameters
  • Low resistance, high-performance design for maximum efficiency and cost-effectiveness
  • High reliability with minimal operational faults

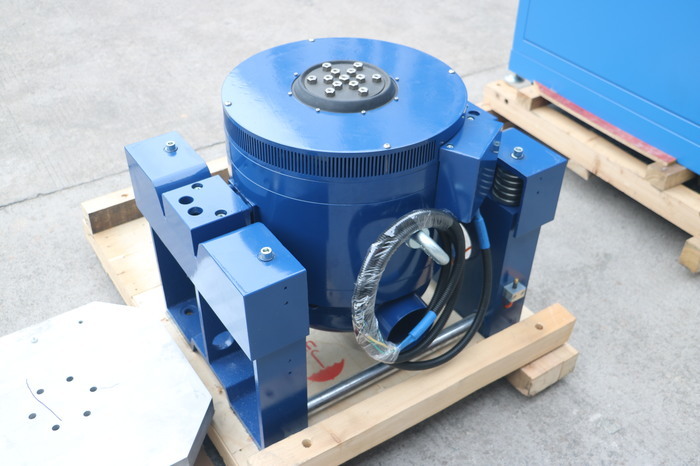

Vertical Expander System
VT vertical extended-bench and specialized clamps are precision-calculated and elaborately designed to ensure optimal performance. Customers benefit from perfect structural integrity, high-quality materials, and superior workmanship.
ISTA Standard Package Vibration Test Equipment Supplier

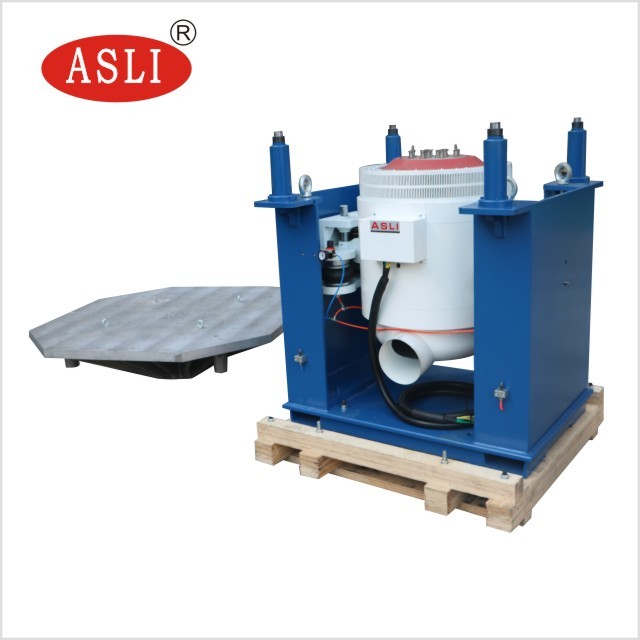

Horizontal Expander System
Our horizontal expander system enables higher acceleration and working frequency with small loading benches, significantly improving the loading capacity and overall machine performance.
The horizontal bench and vibration bench feature an integral design with perfect structure for convenient installation and adjustment.
Static pressure track with V-shape configuration provides exceptional slope-resistant and bias-loading resistant capabilities.
Built-in oil pump ensures optimal structure and easy operation.
ISTA Standard Package Vibration Test Equipment Supplier

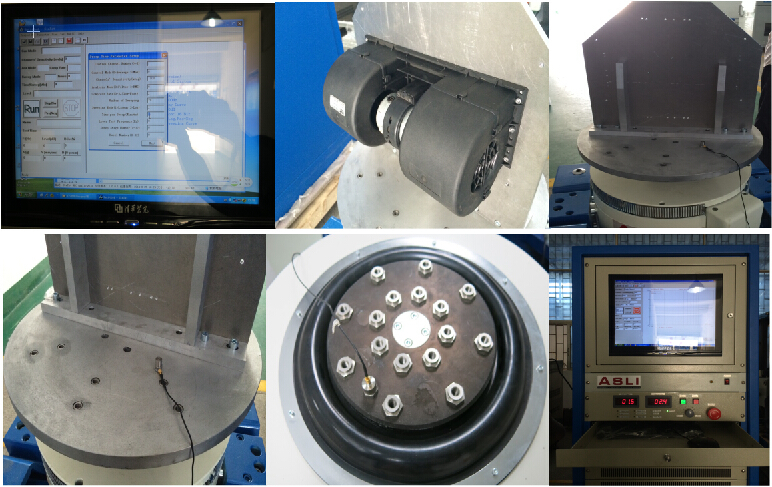

Detailed Product Images
ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier ISTA Standard Package Vibration Test Equipment Supplier

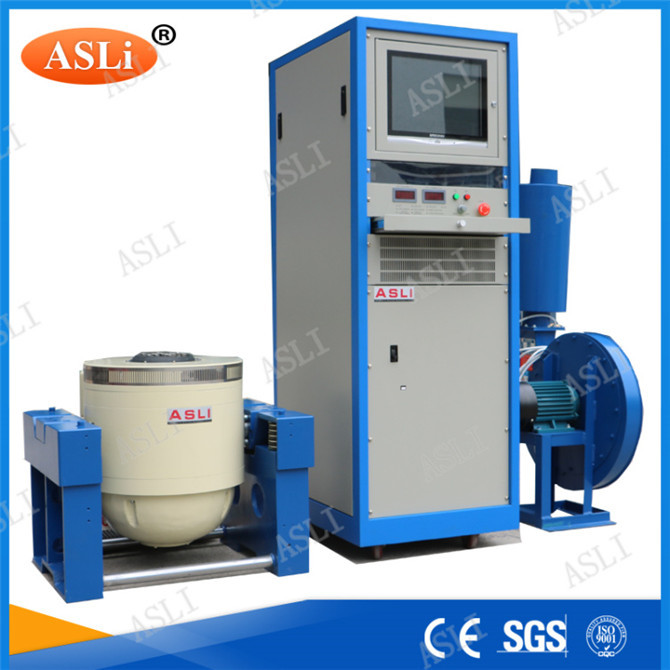

Our Testing Equipment Portfolio
ISTA Standard Package Vibration Test Equipment Supplier

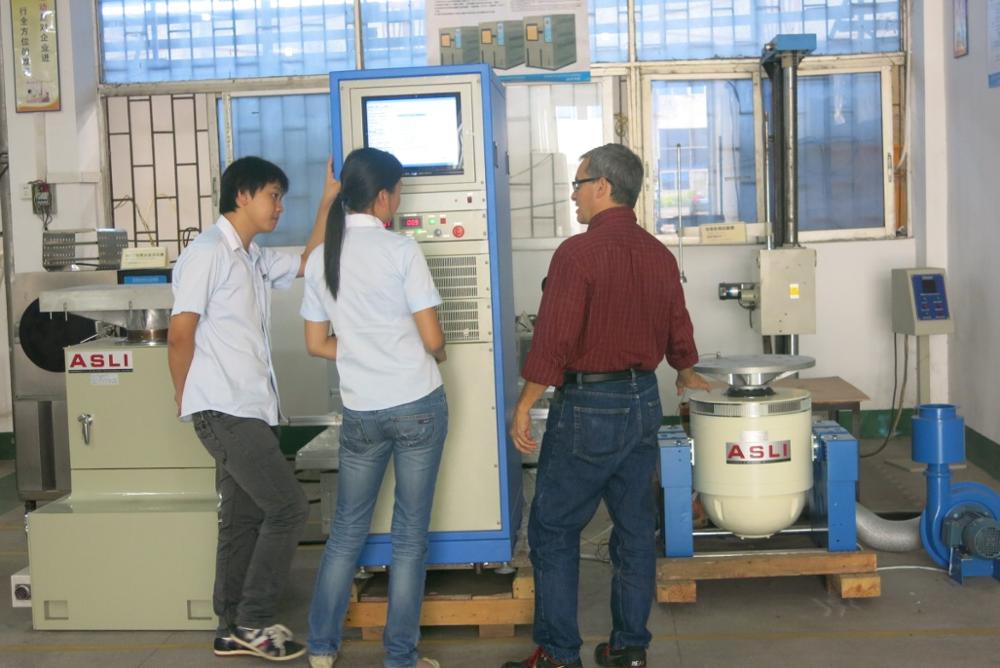

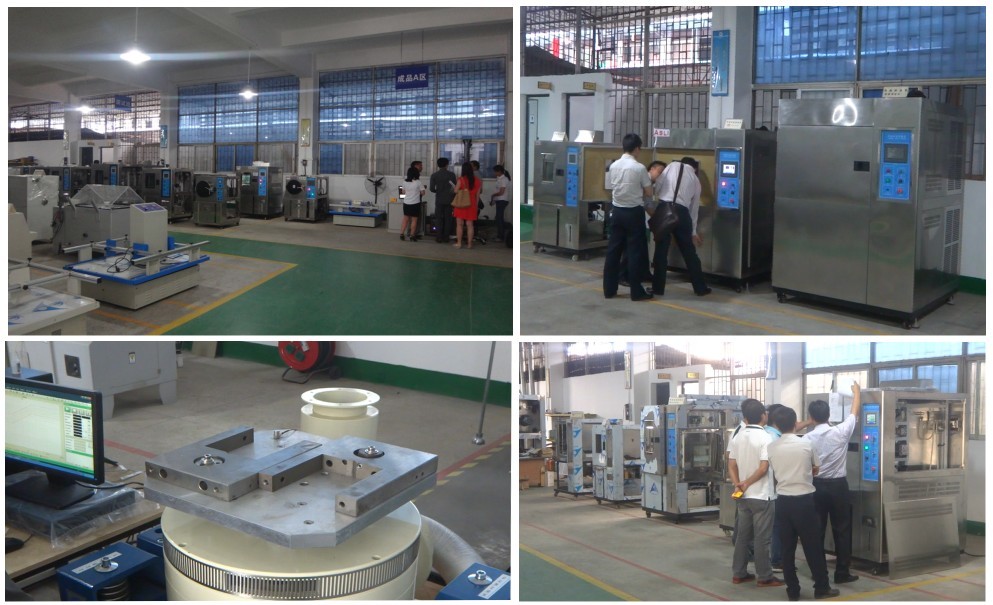

About Our Company
ISTA Standard Package Vibration Test Equipment Supplier
With 28 years of industry experience, we are a established testing equipment manufacturer specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our Package Vibration Test Equipment is a star product line that has obtained CE certification, ensuring compliance with international standards.
Packing & Delivery
ISTA Standard Package Vibration Test Equipment Supplier
Our Service Commitment
  • High quality guarantee on all equipment
  • Professional documentation included with all shipments
  • Customized packing available with photos provided before shipment
  • Prompt response within 48 hours with solutions within 3 working days
  • Professional after-sales service from experienced engineers
  • Comprehensive 12-month warranty period
Industry Exhibitions
ISTA Standard Package Vibration Test Equipment Supplier
For more information about our ISTA Standard Package Vibration Test Equipment, please contact our technical team for detailed specifications and pricing.
