New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
New Lab Equipment High Frequency Vibration Shaker Machine
Specifications
Acceleration :
100g
Moving coil size :
Dia. 240mm
Brand Name :
ASLI
Rated Acceleration :
1000 m/s2
Voltage :
380 V
Protection Class :
IP55
Power :
20kw
Max. Loading :
180 Kg
Vibration force :
10KN
Rated Speed :
1.6 m/s
Price :
$23,500
Place of Origin :
Guangdong, China
Vibration direction :
vertical + horizontal
Displacement :
51mm
MOQ :
1
Accuracy :
±10%
Moving coil weight :
6.5 Kg
Dimension of Moving coil :
Φ230 mm
Frequency Range :
3-3500 Hz
Description

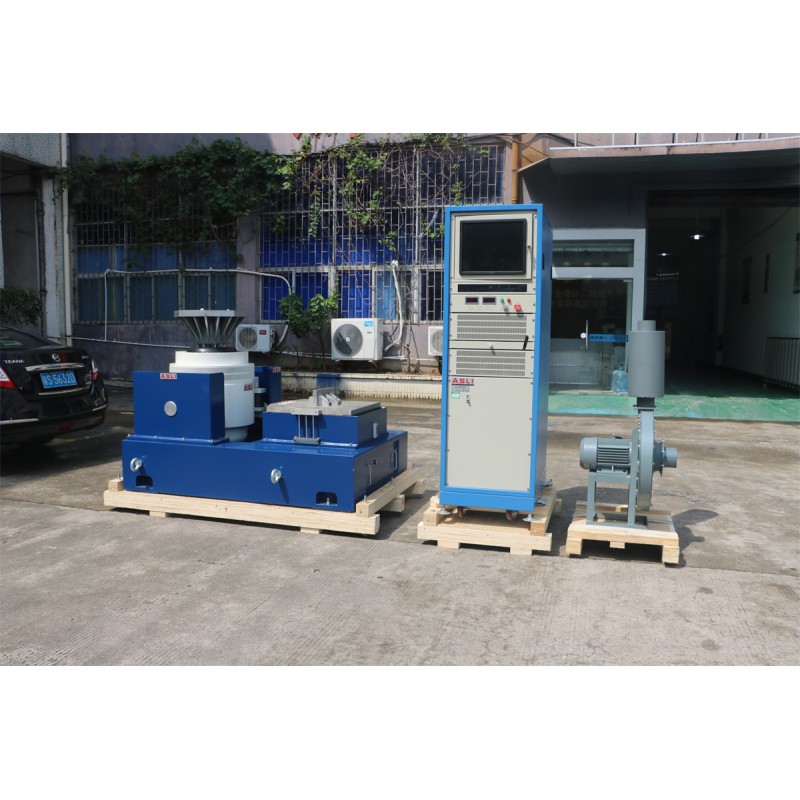

New Lab Equipment High Frequency Vibration Shaker Machine

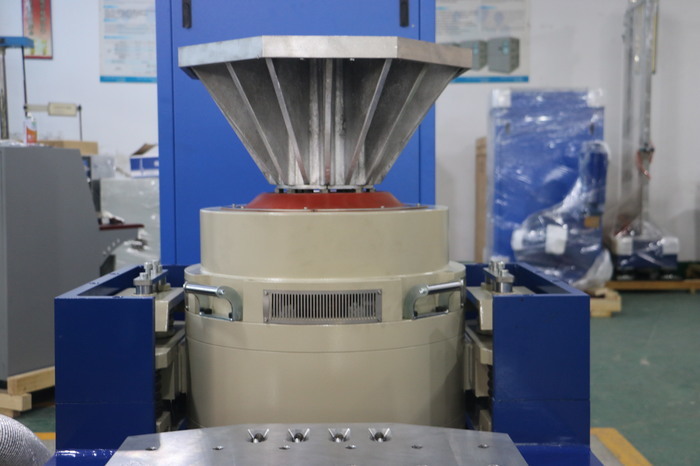

This advanced high frequency vibration shaker machine incorporates cutting-edge technologies including double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings with linear guidance, and trunnion isolation. It performs comprehensive vibration testing across X, Y, and Z axes for sinusoidal vibration and broadband random vibration tests, as well as classical pulse testing (half-sine, trapezoidal, sawtooth wave) and shock response spectrum analysis.
Widely utilized in defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and consumer goods industries.
New Lab Equipment High Frequency Vibration Shaker Machine
Technical Specifications
Model ES-6 ES-6a ES-10 ES-20
Rated Sine Force (N) 6000 6000 10000 20000
Frequency Range (Hz) 3-3500 3-3500 3-3000 3-3000
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.6 1.6 1.8 1.8
Rated Displacement (p-p) mm 25 51 51 51
Max. Loading (Kg) 180 250 270 300
Moving Coil (Kg) 6.5 12 14 30
Dimension of Moving Coil (mm) Φ230 Φ230 Φ240 Φ320
Vibration Direction Vertical, Horizontal, Vertical+Horizontal Vibration
Vertical Expander Features
VT vertical extended-bench with specified clamps features precision calculation and elaborate design to ensure optimal performance. Constructed with high-quality materials and superior workmanship for perfect structural integrity.

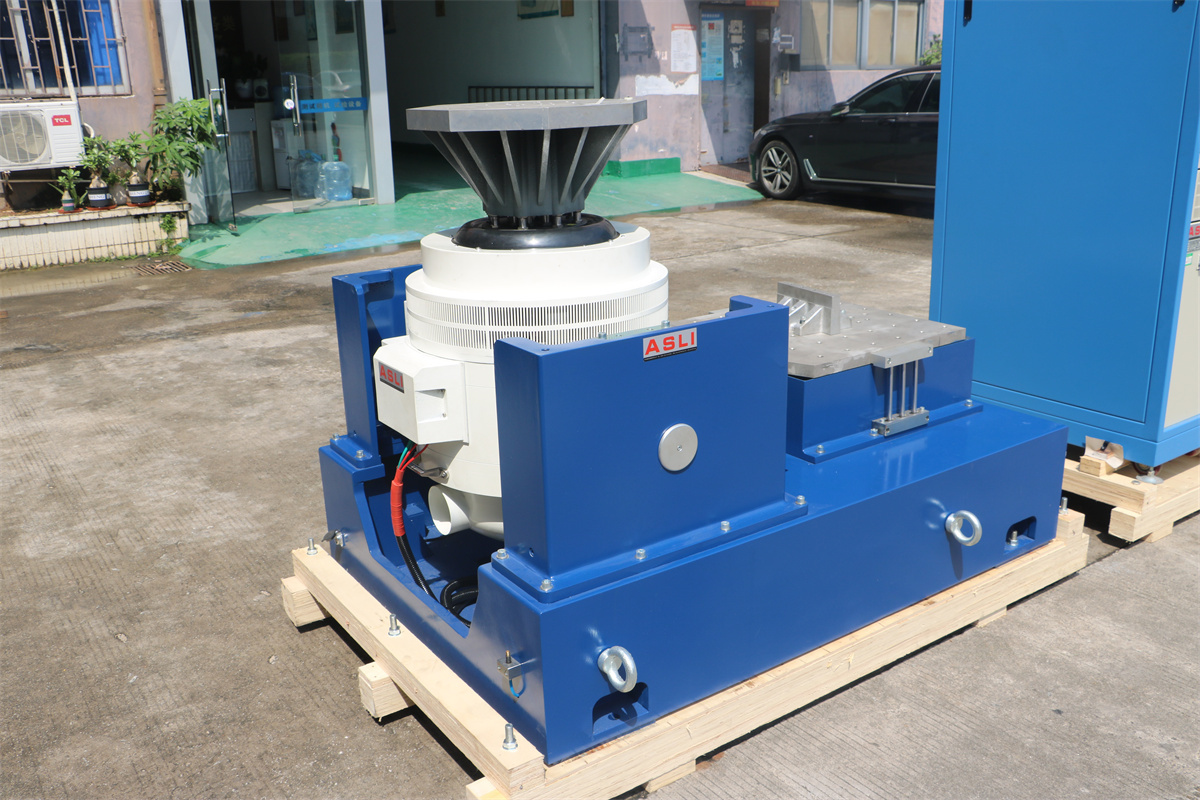

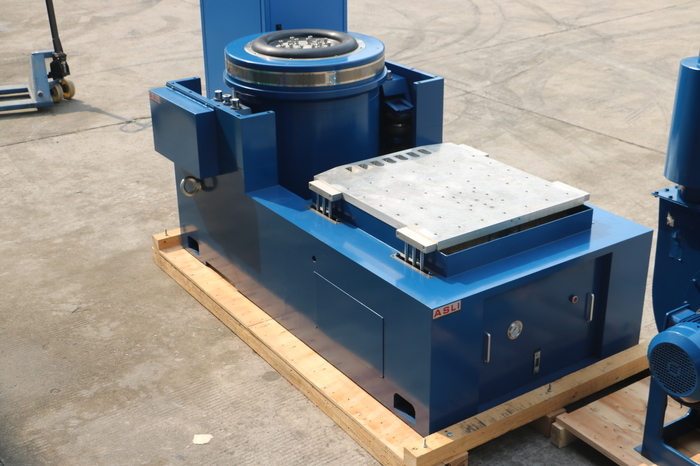

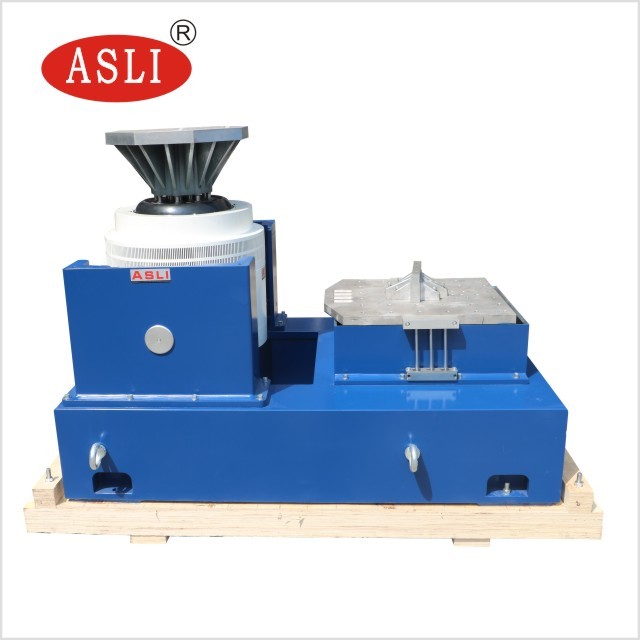

Horizontal Expander Features
  • Small loading bench design enables higher acceleration and working frequency
  • Improves loading capacity and overall machine performance
  • Integral type horizontal bench and vibration bench for perfect structure
  • Convenient installation and adjustment capabilities
  • Static pressure track with V-shape design
  • Capacity for slope-resistant and bias-loading resistant operation
  • Built-in oil pump with optimized structure for easy operation
New Lab Equipment High Frequency Vibration Shaker Machine

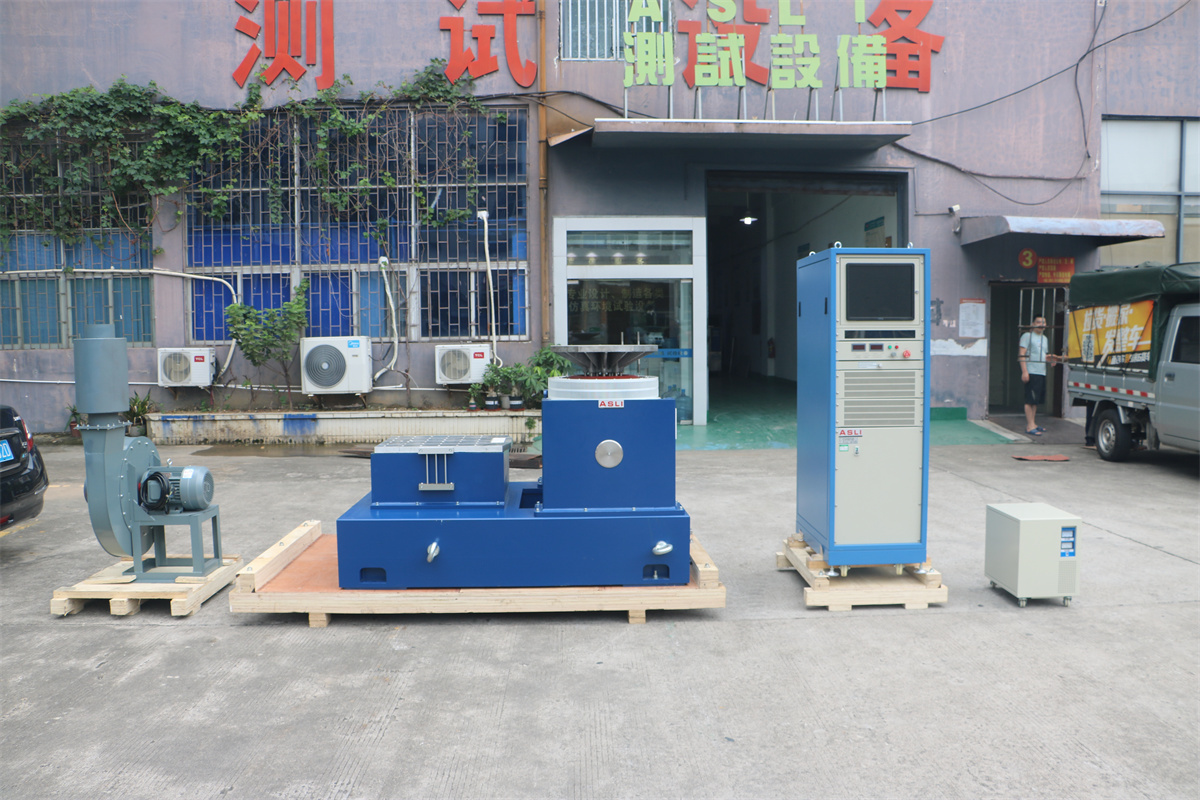

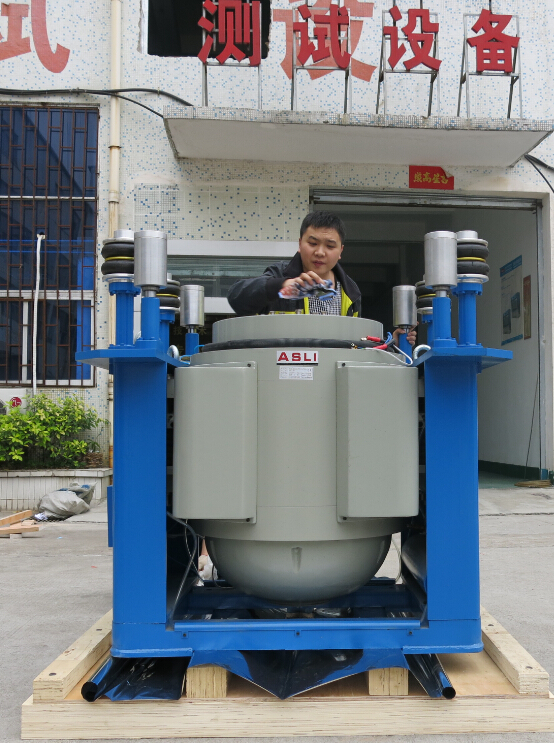

Product Gallery
New Lab Equipment High Frequency Vibration Shaker Machine New Lab Equipment High Frequency Vibration Shaker Machine New Lab Equipment High Frequency Vibration Shaker Machine New Lab Equipment High Frequency Vibration Shaker Machine New Lab Equipment High Frequency Vibration Shaker Machine New Lab Equipment High Frequency Vibration Shaker Machine
Packaging & Delivery
New Lab Equipment High Frequency Vibration Shaker Machine
We provide professional, environmentally friendly, convenient and efficient packaging services to ensure the complete safety of your goods during transportation.
Manufacturer Profile
New Lab Equipment High Frequency Vibration Shaker Machine
With 28 years of experience, we are a specialized testing equipment manufacturer dedicated to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our vibration testing machines for packages and cartons are star products, and we have obtained CE certification for these machines.
Related Products
New Lab Equipment High Frequency Vibration Shaker Machine

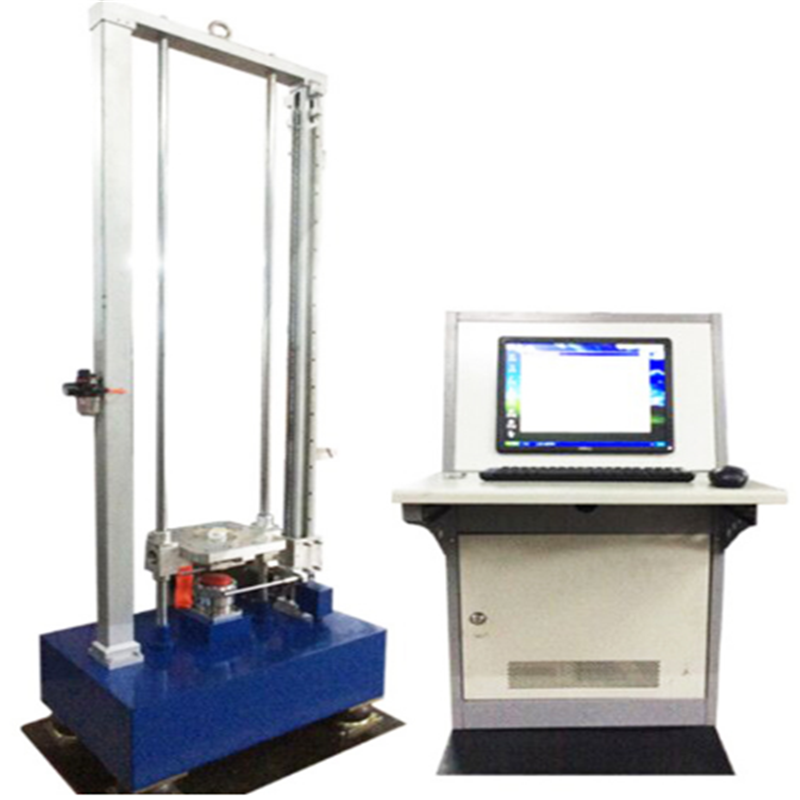

Mechanical Shock Tester
New Lab Equipment High Frequency Vibration Shaker Machine

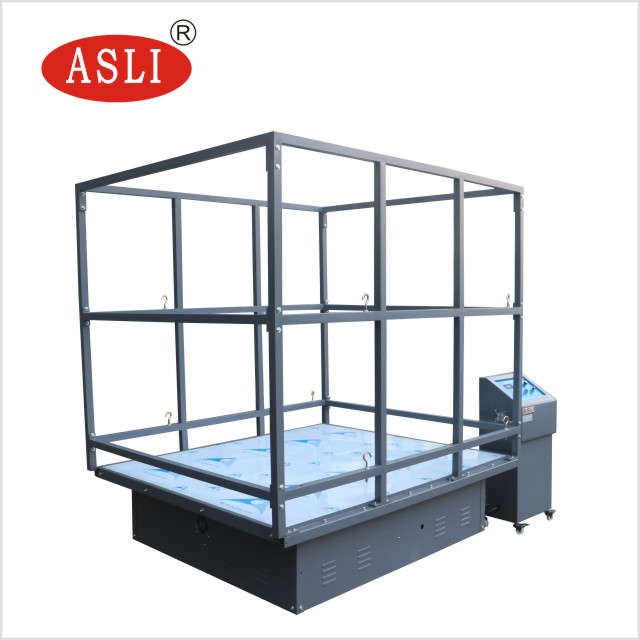

Transportation Simulator Vibration Tester

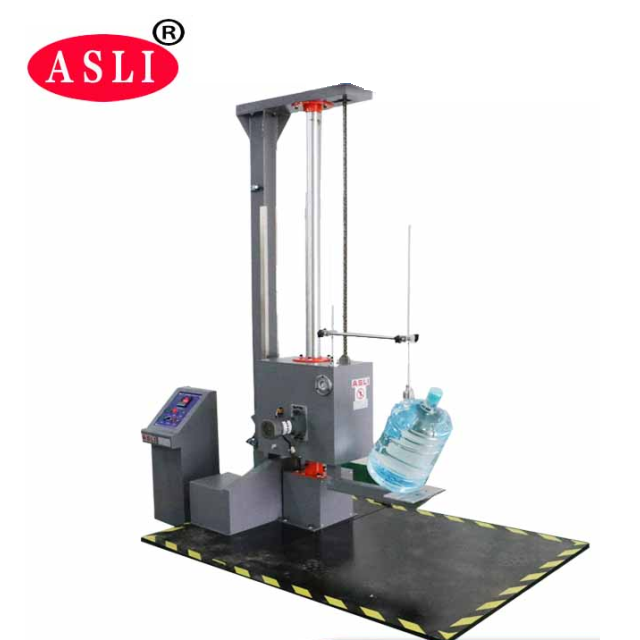

Drop Test Machine
Frequently Asked Questions
What is your terms of packing?
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
What is your terms of delivery?
EXW, FOB, CIF, DAP, DDU, DDP
How about your delivery time?
Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the New Lab Equipment High Frequency Vibration Shaker Machine, please don't hesitate to contact us.
