Specifications
Brand Name :
ASLI
control method :
computer control
Protection Class :
IP55
vibration force :
20KN
MOQ :
1
Max. Loading :
270Kg
Frequency Range :
3-3000Hz
Rated Acceleration :
1000m/s2
Voltage :
380 V
Price :
$26,890
acceleration :
100g
power :
17kw
Rated Speed :
1.8m/s
Place of Origin :
Guangdong, China
vibration direction :
vertical vibration
Accuracy :
+/-10%
frequency :
3~3500hz
moving coil weight :
30kg
Rated Sine Force :
10000N
Description

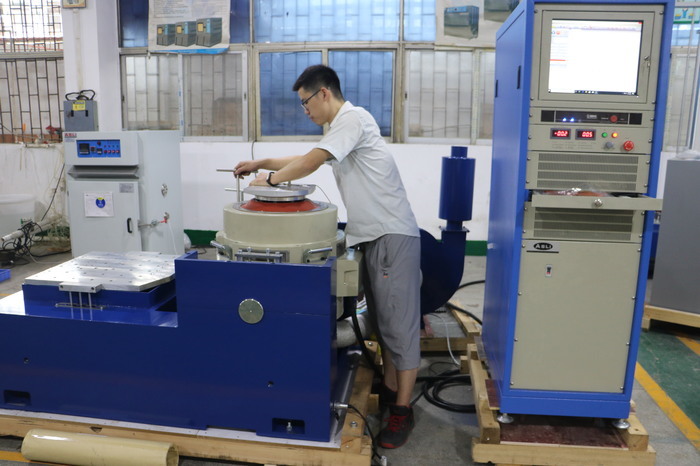

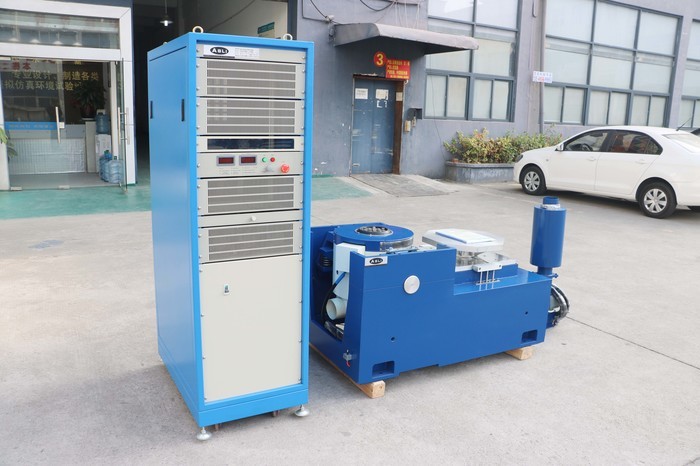

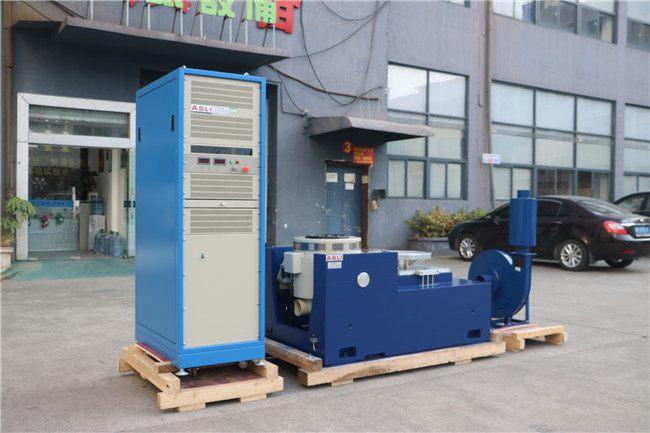

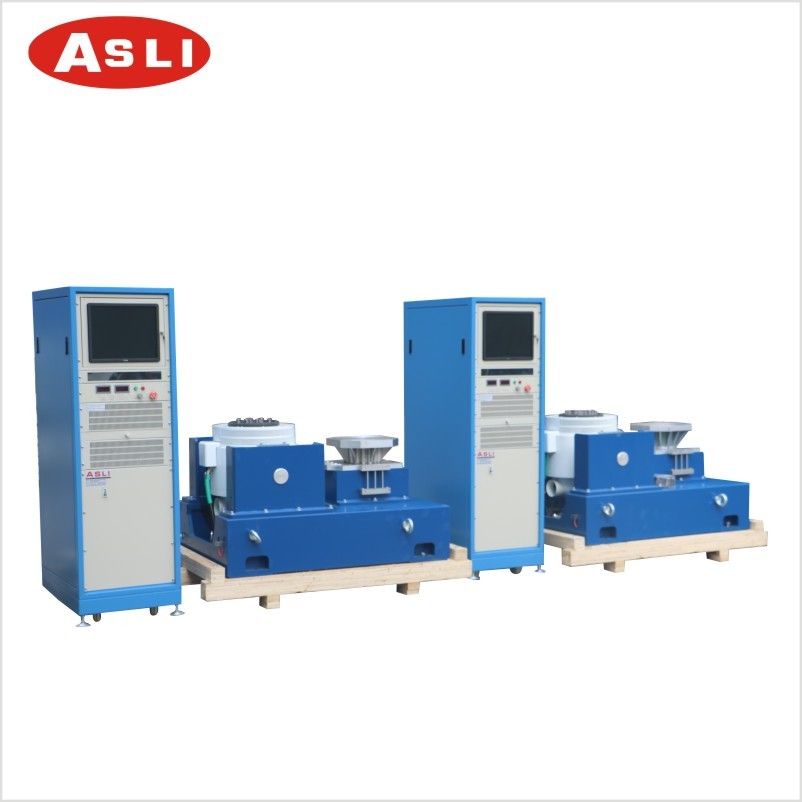

Electromagnetic Vibration Test Equipment
Electromagnetic Vibration Test Equipment is primarily used for product vibration and shock environmental testing, environmental stress screening tests, and reliability testing. This equipment serves various industries including aerospace, communications, electronics, electrical, and home appliances. It provides a comprehensive test platform that meets multiple international standards including IEC, MIL-STD, JIS, and ASTM specifications.
Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment
Technical Specifications
Model ES-10 ES-20 ES-30 ES-40
Rated Sine Force (N) 10000 20000 30000 40000
Frequency Range (Hz) 3-3000 3-3000 3-2800 3-2800
Rated Acceleration (m/s²) 1000 1000 1000 1000
Rated Speed (m/s) 1.8 1.8 1.8 1.8
Rated Displacement (p-p) mm 70 80 11100 100
Max. Loading (Kg) 270 300 450 500
Moving Coil (Kg) 14 30 40 50
Dimension of Moving Coil (mm) Φ240 Φ320 Φ450 Φ450
Product Features
  • Flexible suspension system and straight line guide providing strong bearing capacity, excellent guidance performance, and high stability
  • Central load airbag with large static stiffness and small dynamic stiffness for superior bearing capacity and dynamic performance
  • Rapid self-examination diagnosis and chain protection for high safety and reliability
  • Air bag isolating and damping device eliminates the need for special foundation, perfectly reproduces vibration waves, and reduces vibration transmission
  • Provides different horizontal and vertical expansion platforms for versatile applications
  • Compatible with various vibration controllers for simple operation

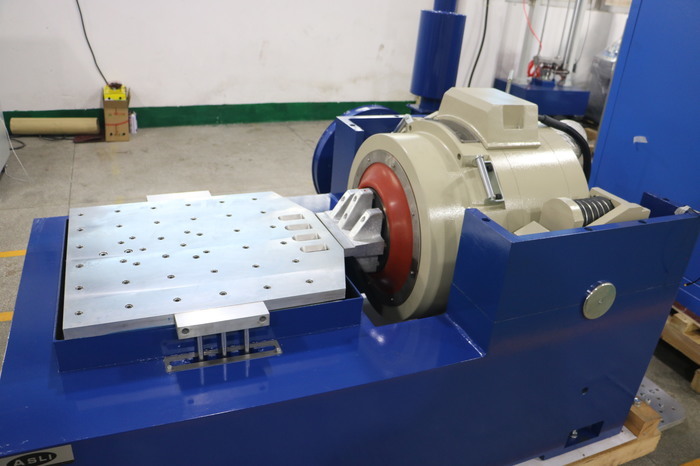

Horizontal Stand Features
  • Small loading bench design enables higher acceleration and working frequency, improving overall machine loading capacity and performance
  • Integral design of horizontal bench and vibration bench provides perfect structure with convenient installation and adjustment
  • Static pressure track with V-shape design offers excellent slope-resistant and bias-loading resistant capabilities
  • Built-in oil pump with good structure for easy operation
Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment
Packaging & Delivery
Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment
To ensure the safety of your goods, we provide professional, environmentally friendly, convenient and efficient packaging services.
Company Profile
Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment Elector-magnetic Vibration Test Equipment
We are a testing equipment manufacturer with 28 years of experience, specializing in simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration testers are star products, and we have obtained CE certification for these machines.
Frequently Asked Questions
Q1. What is your terms of packing?
A: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF, DDU, DAP, DDP
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about Electromagnetic Vibration Test Equipment, please feel free to contact us.
