MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
Specifications
Brand Name :
ASLI
Model Number :
ES-30
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
40 workdays
Packaging Details :
export wooden case
Frequency :
5~2000Hz
vibration force :
3000N
test standard :
MIL STD 810G
Max. displacement :
25mm
max. speed :
1.6 m/s
cooling method :
Air cooling
Description

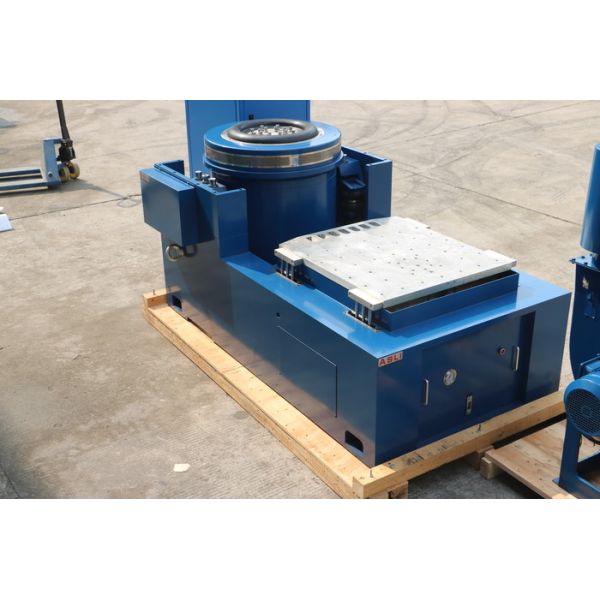

MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment/ lab vibrating table

Vibration Shaker specification

Model ES-3
Max sine exciting force(Kg.f) 300 Kg.f
Vibration body dimensions 730*550*650 mm (L*W*H)
Table size(mm) Customized
Frequency range(Hz) 5~2000Hz
Weight of vibration body (Kg) About 450kg
Moving coil diameter (mm) 150mm
Max Displacement(p-p)mm 25mm
Max acceleration (m/s2) 980 m/s2 (100g) (Without load)
Max speed(m/s) 1.6 m/s
Working environment Temperature: 0-40℃,humidity<80%(Non-condensate)
Cooling type Air cooling
Power supply AC 3 phase 380V 50Hz
MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment
Vibration Shaker Table Manufacturer is widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Product Description

Vibration Shaker Table adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.

MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment

Product features

1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency .
2 Light armature, high stiffness, 4500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment

MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment

any doubt or needs about MIL STD 810G Simulated Transport Vibration Testing Machine/Vibration test equipment/ lab vibrating table, please don't hesitate to send your inquiry.
