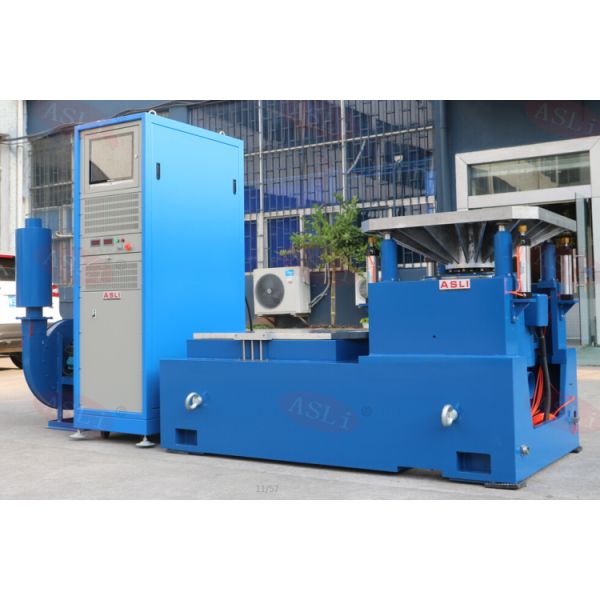

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine
Specifications
Brand Name :
ASLI
Model Number :
ES-40
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
40000 dollars per month
Payment Terms :
T/T
Supply Ability :
30 Sets per Month
Delivery Time :
20 working days
Packaging Details :
Standard Export Poly Wood Case
Vibration Force :
Customized
Brand :
ASLI
Power :
Electronic
Certificate :
ISO 9001:2008
Packing Material :
Poly wood case
Vibration :
Vertical and Horizontal
Table Size :
Customized
Max Load :
500 Kg
Description

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

Technical parameters of horizontal expander:

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

technical parameters of vertical expander:

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

Technical Parameters
Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

 Rated Acceleration (m/s2) Rated Speed (m/s)

Rated displacement

(p-p)mm

 Max. Loading (Kg) moving coil (Kg)

Dimension of

Moving coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500
Product Pictures

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing MachineUN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

Packaging & Shipping

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

UN38.3 battery Vibration Testing Machine 3 Axis Vibration Table Lab Testing Machine

Product tags

vibration testing machine

,

vibration table testing equipment

,

vibration lab equipment
