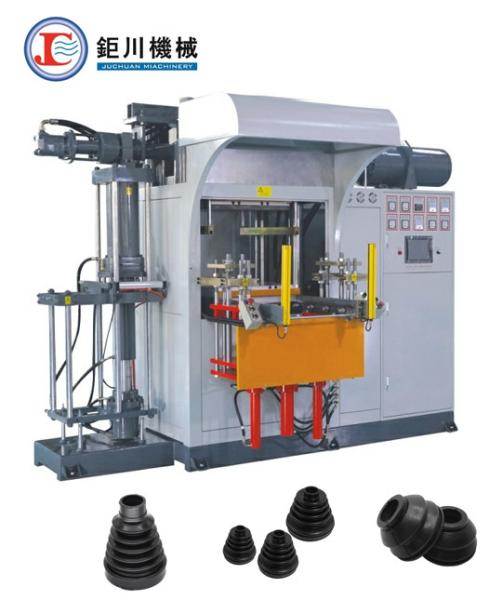

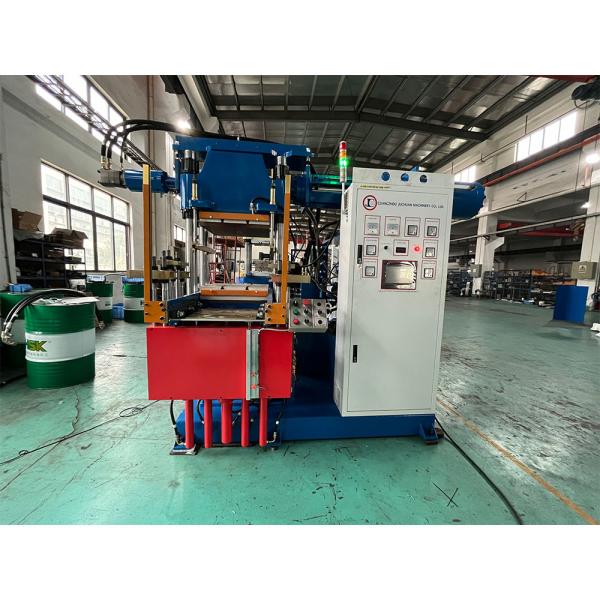

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Horizontal Rubber Injection Molding Machine For Making Insulators Customizable
Specifications
Brand Name :
JUCHUAN
Model Number :
JC- HI-FL
Certification :
ISO9001-2015
Place of Origin :
China Guangzhou
MOQ :
1set
Price :
USD$32200-USD$45800/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Set/Month
Delivery Time :
45 days
Packaging Details :
Fixed with hard straps
Control System :
Japan Mitsubishi
Clamping Force :
200
Injection Pressure :
2000kgf/cm2
Mold Type :
Injection Molding
Mold Openning Type :
2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max Operating Pressure :
20Mpa
Injection Volume :
2000cc
Type :
Horizontal
Description

China Factory Price Horizontal Rubber Injection Molding Machin for making insulators

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable

Machine Features:

* Special two step feeding system structure, which has the fuction of making the silicone material and get the best exhaust effect without aging.

* Large-capacity storage barrel design, easy and quickly feeding silicone material.

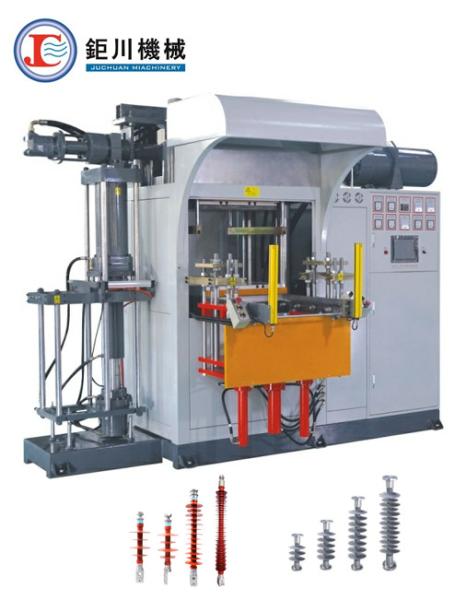

* This machine is suitable for making silicone products with hardness less than 60 degrees, such as silicone insulators, lightening arresters, cable accessories and other silicone products.

Technical Parameters:

MODEL 200HI-FL 250HI-FL 300HI-FL 400HI-FL 500HI-FL 550HI-FL 600HI-FL 800HI-FL
Clamp Force(Ton) 200 250 300 400 500 550 600 800
Injection Volume(cc) 2000 2500 3000 4000 16000 10000 (16000) 6000 8000
Injection Pressure(kgf/cm2) 2000 2000 2000 2000 2000 2000 2000 2000
Platen Size(mm) 550*560 600*700 700*700 700*700 900*1100 900*1100 850*850 1000*1000
Plunger Diameter(mm) Φ360 Φ400 Φ450 Φ500 Φ560 Customized Customized Customized
Min. Mold Thickness(mm) 100 100 200 200 110 260 200 250
Plunger Stroke(mm) 500 500 400(600) 400 700 700 500 500
Heating Plates Distance(mm) 600 600 600 600 800 960 700 750
Tie Bar Distance(mm) 640*310 705*400 820*395 820*395 1105*475 850*640 970*500 1240*590
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure(MPa) 20 20 20 20 20 20 20 20
Motor Power(KW) 11 11 11 11 11 15 15 15
Heating Power(KW) 15.3 18 24 24 26.4 45 29.75 35
Total Power(KW) 26.3 29 35 35 37.4 60 44.75 50
Gross Weight(Ton) 7.3 8 9.5 10.5 30 25 14.5 18.5
Machine Size L*W*H(mm) 3400*2400*2600 3400*2500*2650 3500*2600*2700 3500*2600*2700 4810*3800*3200 5200*2600*3500 3800*2800*2800 4000*3050*2900

Applications Products:

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable

Product Details:

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable

Our Main Products:

Vertical Solid Silicone Injection Molding machine

Vertical Rubber Injection Molding machine

Horizontal Silicone Injection Molding machine

Horizontal Rubber Injection Molding machine

Liquid Silicone Injection Molding machine

Vacuum compression Molding machine

Hydraulic Vulcanizing Hot Press machine

Brake Pads Brake Lining Hot Press Machine

Company Information:

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable

Horizontal Rubber Injection Molding Machine For Making Insulators Customizable

Our Service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
