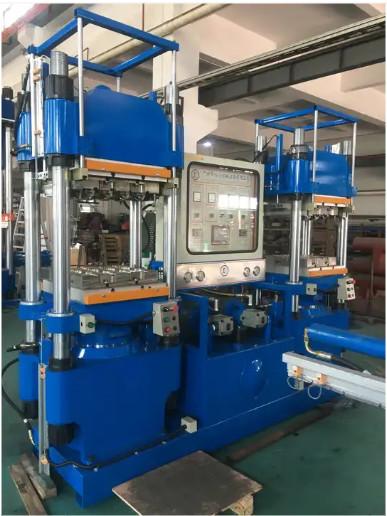

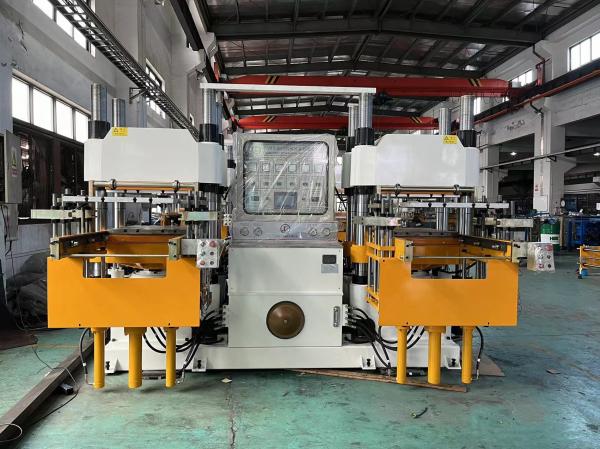

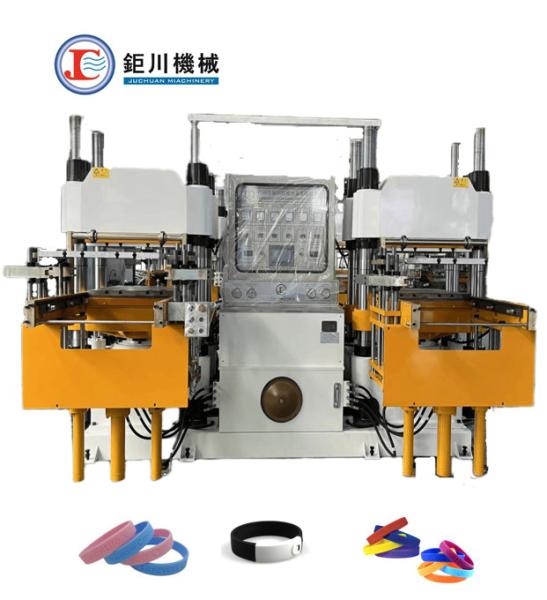

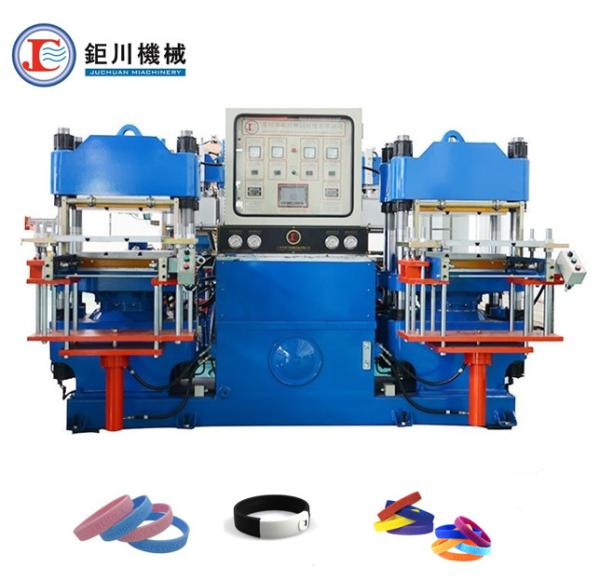

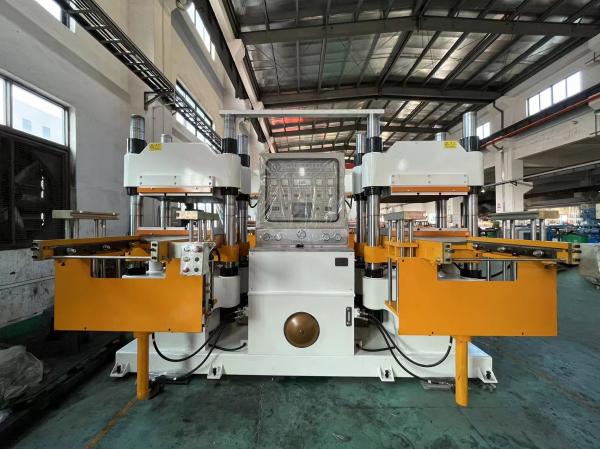

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Specifications
Place of Origin :
Guangdong, China
Model Number :
JC-HF
Brand Name :
JUCHUAN
Packaging Details :
Fixed with hard straps .
Supply Ability :
100 Set/Sets per Month
Price :
$16800-$23,000.00/sets >=1 sets
Certification :
ISO9001:2015
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45 days
Condition :
New
Style :
VERTICAL
Ejector Stroke(mm) :
400 mm
Ejector Force(kN) :
2000 kN
Theoretical Shot Volume(cm³) :
2000 cm³
Injection Rate (g/s) :
100 g/s
Machine Type :
Hydraulic
Injection Weight (g) :
2000 g
Screw diameter (mm) :
35 mm
Weight (KG) :
8000 kg
Type :
Plate Vulcanizing Machine
Open Stroke(mm) :
400 mm
Power (kW) :
40 kW
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Motor, Pump, PLC, Pressure vessel, Screw
Automatic :
yes
After-sales Service Provided :
Engineers available to service machinery overseas
Injection Rate :
Adjustable
Plunger Stroke :
200~350
After Warranty Service :
Video technical support
Port :
Guangzhou
Description

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

HF Series Vulcanizing Molding Machine For Two Sides Operation

Machine Feature

1.Able to assemble / install separate Ejection mechanism that suitable for bigger size molding part

2.Efficient production of rubber part for railway, mining, shipbuilding industries.

3.Multi-pillar plate vulcanizing machine.

4.Anti-collision Molding System prevent mold damage occurring from misalignment (Patented).

Model Unit 100HF 160HF 200HF 250HF 300HF 400HF 500HF 1200HF
Clamping Force Ton 100 160 200 250 300 400 500 1200

Operation table size

 mm 400*460 500*520 550*560 650*600 700*800 850*850 1000*1000 1600*2200
Plunger stroke mm 200 250 250 250 300 300 350 350

Distance of

Thermo-plate

mm 200~300 250~350 250~350 250~350 300~400 300~400 350~450 350~550
Distance of Tie bar mm 490*230 590*270 640*310 745*310 785*380 940*450 1105*475 6 posts
Die sinking type Track-Suspension-2RT-3RT-4RT

Max Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5*2(5.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 10*2(7.5kw*2) 15*2(11kw*2) 15(11kw) 25(18.5kw)

Electric Heating

Power

 Kw 7.2*2 11.7*2 13.5*2 15.3*2 24*2 26.4*2 36 126
Total Power Kw 25.4 38.4 42 45.6 63 74.8 47 144.5
Gross weight Ton 5 6 7.8 11 15 17 13.5 28.5
Dimension(L*W*H) mm

2500*2080

*1950

2800*2260

*1900

2930*2350

*2050

3190*2780

*2230

3360*2970

*2250

3660*3050

*2350

1460*3600

*2380

2350*5400

*2950

Hydraulic Vulcanizing Hot Press Machine for Silicone BraceletsHydraulic Vulcanizing Hot Press Machine for Silicone BraceletsHydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

Application

Hydraulic Vulcanizing Hot Press Machine for Silicone BraceletsHydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

Product Features

Hydraulic Vulcanizing Hot Press Machine for Silicone BraceletsHydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

Related Products

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets
Company Information

Hydraulic Vulcanizing Hot Press Machine for Silicone BraceletsHydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

FAQ

Hydraulic Vulcanizing Hot Press Machine for Silicone Bracelets

If you have any queries and suggestions, please feel free to let us know.
