100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products
Specifications
Brand Name :
JUCHUAN
Model Number :
JC-100LV-1
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1set
Price :
USD42000 set
Payment Terms :
L/C, T/T
Supply Ability :
1set per 70 days
Delivery Time :
15 - 20 working days
Packaging Details :
container
Clamp Force(Ton) :
100
Max. injection Rate(cc/s) :
300
Injection Volume(cc) :
2000
Plunger Stroke(mm) :
350
Max. Operating Pressure(MPa) :
20
Heating Power(KW) :
10
Gross Weight(Ton) :
6
Platen Size(mm) :
400*400
Min. Mold Thickness(mm) :
51
Mold Opening Type :
2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die
Machine Size L*W*H(mm) :
2400*1650*3200
Plunger Diameter(mm) :
250
Description

100LV-1 White Vertical Liquid Silicone Injection Molding Machine

for making Medical & Baby Silicone Products

Machine Features

* Big injection pressure, mainly for liquid silicone products with multi cavities or big volume of silicone.

* Servo control system to save energy up to 40%.

* Mainly for all types of electric cable auxiliary parts.

Main Technical Parameters

Model 100LV-1 200LV-1 300LV-1
Clamping Force (Ton) 100 200 300
Max. Injection Rate (cc/s) 300 300 400
Injection Pressure (kgf/cm²) 1000 1000 1200
Injection Volume (cc) 2000 3000 5000
Platen Size (mm) 400*400 550*560 700*700
Plunger Diameter (mm) Φ250 Φ360 Φ450
Plunger Stroke (mm) 350 400 600
Min. Mold Thickness (mm) 51 110 110
Heating Plates Distance (mm) 300-400 500-600 600-700
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20
Heating Power (KW) 10 15.3 24
Gross Weight (Ton) 6 7.3 11
Machine Size L*W*H (mm) 2400*1650*3200 2600*2000*4000 2750*2265*4200

About us

* Guangzhou JuChuan Machinery Co.,Ltd has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our Products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Exhibition

Our Customer

Logistics

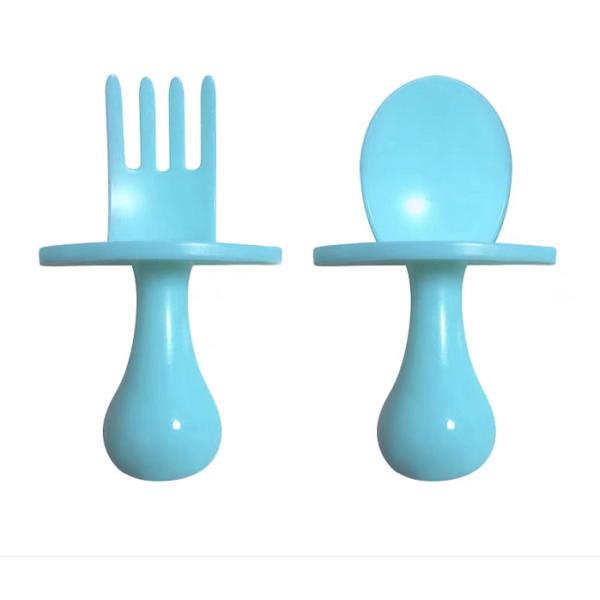

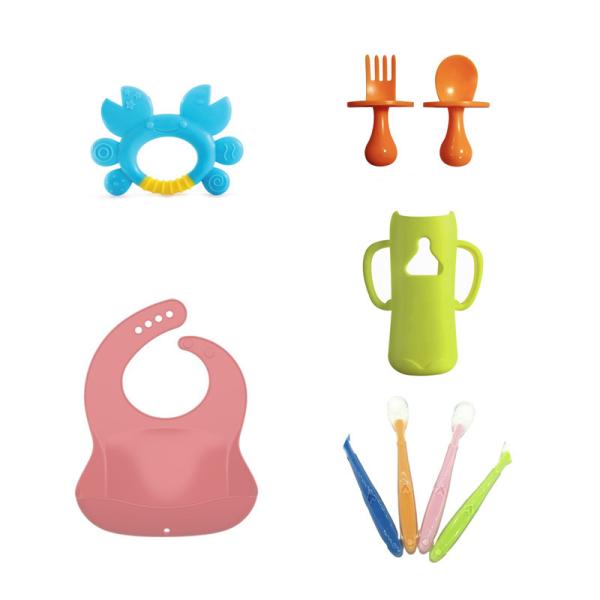

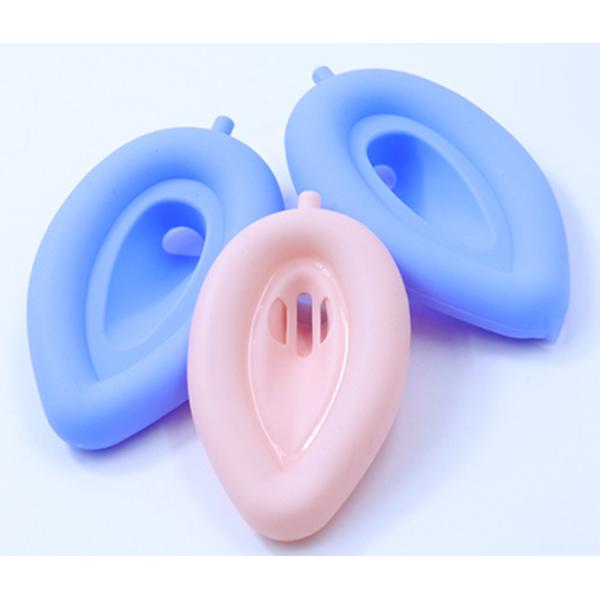

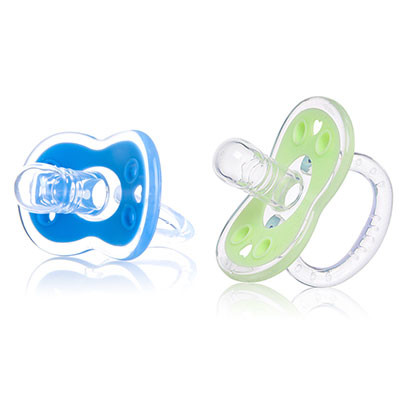

Application Products

100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products

100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products100LV-1 White Vertical Liquid Silicone Injection Molding Machine for making Medical & Baby Silicone Products

Our Services

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
