Specifications
Place of Origin :
China
Model Number :
JC-VI-AO
Brand Name :
JUCHUAN
Certification :
ISO9001:2015
Packaging Details :
container
Supply Ability :
100 Sets per Month
Price :
USD 25000 - 40000/set
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45 days
Clamp Force(Ton) :
200
Injection Volume(cc) :
2000
Injection Pressure(kgf/cm2) :
2000
Platen Size(mm) :
300*300~1200*1200
Min. Mold Thickness(mm) :
100
Plunger Stroke(mm) :
400
Heating Plates(Distance(mm) :
500-600
Tie Bar Distance(mm) :
640*310
Mold Opening Stroke :
2RT-3RT-4RT Upper hanging Die-Lower Hanging Die
Max. Operating Pressure(MPa) :
20
Heater Power(KW) :
153
Open Stroke(mm) :
400 mm
Power (kW) :
40 kW
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Showroom Location :
None
Plastic Type :
Thermoplastic
Automatic :
yes
After-sales Service Provided :
Engineers available to service machinery overseas, Video technical support, Online support
Injection Rate :
Adjustable
Injection Weight :
500~10000cc
Injection Pressure(kgf/xm2) :
1800
Plunge Stroke(mm) :
300~500
Heater Capacity(kw) :
8.4~42
After Warranty Service :
Video technical support, Online support
Local Service Location :
Russia, South Africa
Clamping Force (kN) :
2000 kN
Port :
Guangzhou
Description

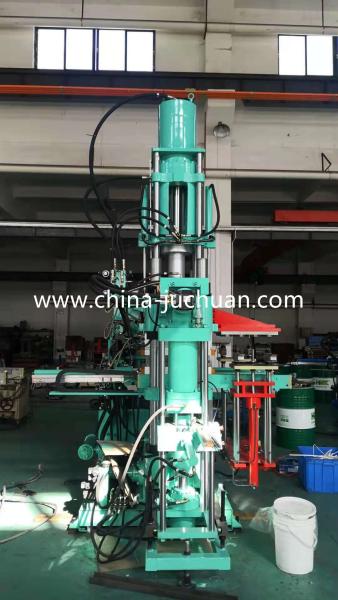

Full Automatic Energy-Saving Silicone Rubber Injection Molding Machine

for making Mobile Phone

VI-AO Series Vertical "all-in-out" Silicone/Ssynthetic Rubber Injeciton Molding Machine

Feature:

• Suitable for automotive and electronic rubber parts, high/cold temp precision rubber parts, especially NBR products

• All-in-out structure, sprueless injection without material loss controllable injecting material temperature

• Excellent for high precision molding part

• 5-10 times better accuracy than conventional injection machine the measuring precision of 1000cc injection volume is up to ±0.1 g

• Anti-collision Molding System prevent mold damage occurring from misalignment (Patented)

• Servo-Controlled system -Up to 40% energy saving

• Proportional backpressure controlling characteristic

Model Unit 50VI-AO 100VI-AO 200VI-AO 300VI-AO 400VI-AO 600VI-AO 800VI-AO 1000VI-AO
Clamping Force Ton 50 100 200 300 400 600 800 1000
Injection Capacity cc 500 500 2000 3000 4000 6000 8000 10000
Injection pressure kgf/cm² 1800 1800 1800 1800 1800 1800 1800 1800
Operation table size mm 300*300 400*400 550*560 700*700 700*700 850*850 1000*1000 1200*1200
Min. Mold Thickness mm 50 50 100 100 100 100 150 150
Plunger stroke mm 300 350 400 400 400 500 500 500
Distance of Thermo-plate mm 350~450 400~500 500~600 500~600 500~600 600~700 650~800 650~800
Distance of Tie bar mm 400*140 515*230 640*310 820*395 820*395 970*500 1140*600 1340*800
Die sinking type 2RT-3RT-4RT-Upper Mold-Lower Mold

Max. Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20
Motor Power hp 7.5 10 15 15 15 20 20 25

Electric Heating Power

 Kw 8.4 10 15.3 24 24 29.75 35 42
Total Power Kw 16.9 20.5 30.3 39 39 48.75 54 64.5
Gross weight Ton 5.5 6 7.5 9 10 14.2 17.5 21

Dimension

(L*W*H)

 mm

2000*1500

*H2800

2400*1650

*3200

2600*2000

*4000

2750*2265

*4200

2750*2265

*4200

3200*2500

*4350

L3450*W2750

*H4500

3750*3050

*5000
