Specifications
Brand Name :
Juchuan
Model Number :
JC-LV-1
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
1set
Price :
USD 21800-40000one set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Set/Sets per Month
Delivery Time :
45 days
Packaging Details :
container
Automatic :
Yes
Color :
Green
Key Selling Points :
Competitive Price
Max Clamping Force :
120 Tons
Motor :
Servo Motor
Motor Power :
22 KW
Mould Opening Stroke :
100-500mm
Opening Stroke :
300mm
Plastic Processed :
silicone
Plunger Diameter :
450mm
Power :
11~20Kw
Style :
VERTICAL
Type :
Injection molding machine
Usage :
Baby Silicone Teether
Useful :
LSR machine for silicone products
Description

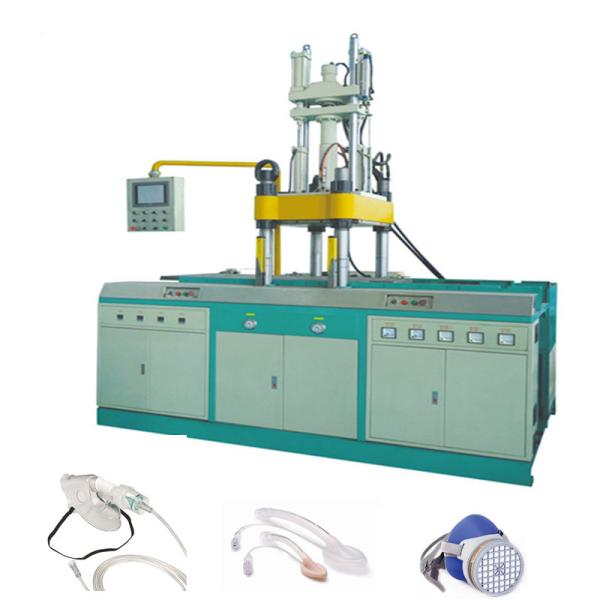

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products
China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products
China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Application Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Machine Features

* Big injection pressure, mainly for liquid silicone products with multi cavities or big volume of silicone.

* Servo control system to save energy up to 40%.

* Mainly for all types of electric cable auxiliary parts.

Technical Parameters

Model 100LV-1 200LV-1 300LV-1
Clamping Force (Ton) 100 200 300
Max. Injection Rate (cc/s) 300 300 400
Injection Pressure (kgf/cm²) 1000 1000 1200
Injection Volume (cc) 2000 3000 5000
Platen Size (mm) 400*400 550*560 700*700
Plunger Diameter (mm) Φ250 Φ360 Φ450
Plunger Stroke (mm) 350 400 600
Min. Mold Thickness (mm) 51 110 110
Heating Plates Distance (mm) 300-400 500-600 600-700
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20
Heating Power (KW) 10 15.3 24
Gross Weight (Ton) 6 7.3 11
Machine Size L*W*H (mm) 2400*1650*3200 2600*2000*4000 2750*2265*4200

Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Trade Show

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
