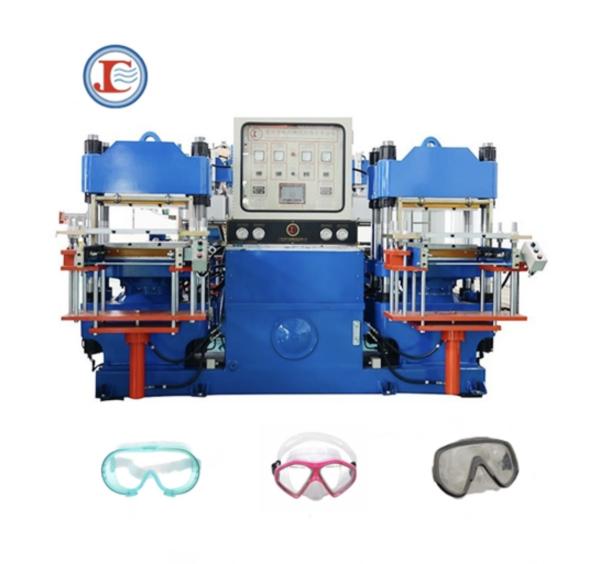

China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products
Specifications
Brand Name :
JUCHUAN
Model Number :
JC-400HF
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
1set
Price :
USD 15000- 26800 set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1set per 30 days
Delivery Time :
45 days
Packaging Details :
container
Clamp Force (Ton) :
400
Platen Size (mm) :
850*850
Plunger Stroke(mm) :
300
Heating Plates Distance(mm) :
300-400
Tie Bar Distance(mm) :
940*450
Color :
Blue
Mold Opening Type :
2RT-3RT-4RT-Track-Suspension
Max. Operation Pressure(MPa) :
20
Motor Power (KW) :
11
Heating Power(KW) :
26.4*2
Total Power(KW) :
74.8
Gross Weight(Ton) :
17
Machine Size L*W*H(mm) :
3660*3050*2350
Description

China Easy to operate 400Ton Blue Hydraulic Hot Press molding Machine

for making rubber silicone products

Product Description

* Adaptable with different demolding methods like 2RT/3RT/4RT.

* Accurate mold-in and mold-out position to ensure no damage to the molding.

* Dual motor design for safe independent working of the twin station.

Technical parameter
Model 100HF 200HF 250HF 300HF 350HF 400HF 500HF 1200HF
Clamp Force(Ton) 100 200 250 300 350 400 500 1200
Platen Size (mm) 400*460 550*560 650*600 700*800 750*750 850*850 1000*1000 1600*1200
Plunger Diameter (mm) Φ250 Φ360 Φ400 Φ450 Φ480 Φ500 Φ560 Customized
Plunger Stroke (mm) 200 250 250 300 300 300 350 350
Heating Plates Distance (mm) 200 - 300 250 - 350 250 - 350 300 - 400 300 - 400 300 - 400 350 - 450 350 - 550
Tie Bar Distance (mm) 490*230 650*320 745*310 785*380 / 940*450 1105*475 Six Tie Bars
Mold Opening Type 2RT- 3RT - 4RT - Track - Suspension
Max. Operating Pressure (MPa) 20 20 20 20 20 20 20 20
Motor Power (KW) 5.5*2 7.5*2 7.5*2 11*2 11*2 11 11 11
Heating Power (KW) 7.2*2 13.5*2 15.3*2 24*2 24*2 26.4*2 36 126
Total Power (KW) 25.4 42 45.6 63 70 74.8 47 144.5
Gross Weight (Ton) 5 7.8 11 15 / 17 13.5 28.5
Machine Size L*W*H (mm) 2500*2080*1950 2930*2350*2050 3190*2780*2230 3360*2970*2250 Customized 3660*3050*2350 1460*3600*2380 2350*5400*2950

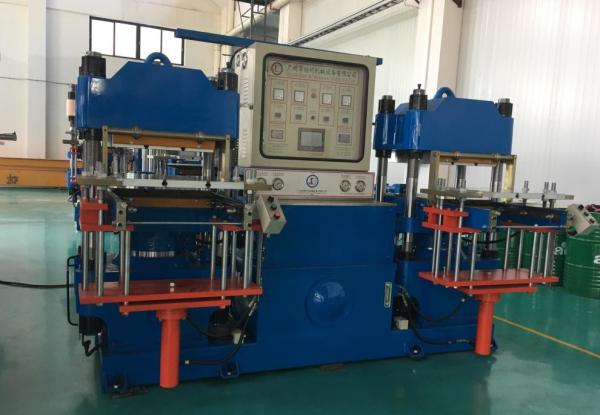

Product show

Related Products

Packaging & Shipping

Company Information

China Easy to Operate 400Ton Blue Hydraulic Hot Press molding Machine for making rubber silicone products

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Trade show

Our Services

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
