High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine
Specifications
Place of Origin :
Guangdong, China
Model Number :
HI-FL
Brand Name :
JuChuan
Certification :
CE ISO9001:2015
Supply Ability :
100Set/Sets per Month
Price :
$20,000.00 - $45,000.00/sets
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
45 days
Condition :
New
Style :
Horizontal
Injection Rate (g/s) :
100
Machine Type :
Hydraulic
Injection Weight (g) :
200
Screw diameter (mm) :
40
Distance between Tie Bars :
TBD
Weight (KG) :
7800
Type :
Injection molding machine
Power (kW) :
15.3
Warranty :
1 Year
Key Selling Points :
Competitive Price
Applicable Industries :
Manufacturing Plant
Automatic :
Yes
After-sales Service Provided :
Video technical support, Online support, Engineers available to service machinery overseas
Clamping Force (kN) :
200
Clamp Force(Ton) :
200~1200
Injection Volume(cc) :
2000~40000
Injection Pressure(kgf/xm2) :
2000
Plunger Stroke(mm) :
400~700
Heater Capacity(kw) :
30.3~150
Gross Weight(Ton) :
7.3~650
Model :
HI-FL
Port :
45 days after payment Guangzhou
Description

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine

HI-FL Series Horizontal Silicone/Ssynthetic Rubber Injeciton Molding Machine

Feature

1.Equip with infrared camera and automatic alarm function in machine safety controlling.

2.Unique Two-Stage material injecting mechanism for better de-gasing purpose.

3.Improvement desigh of injection molding machine seat that able to enhance molded part quality and cosmectic.

4.Anti-collision Molding System prevent mold damage occurring from misalignment(Patented)

5.Equipable with silicone rubber device.

6.Suitable for all kind of rubber with hardness less than 80 shore A,silcone rubber parts,fire retardant parts etc

Model Unit 200HI-FL 250HI-FL 300HI-FL 400HI-FL 550HI-FL 600HI-FL 800HI-FL 1000HI-FL 1200HI-FL
Clamping Force Ton 200 250 300 400 550 600 800 1000 1200
Injection Capacity cc 2000 2500 3000 4000 10000(12000) 6000 8000 10000 40000
Injection pressure kgf/cm² 2000 2000 2000 2000 2000 2000 2000 2000 2000
Operate table size mm 550*550 600*700 700*700 700*700 700*1500 850*850 1000*1000 1200*1200 850*3600
Min. Mold Thickness mm 100 100 200 200 510 200 250 250 210
Plunger stroke mm 500 500 400 400 700 500 500 500 650
Distance of Thermo-plate mm 600 600 600 600 960 700 750 750 850
Distance of Tie bar mm 640*310 705*400 820*395 820*395 820*640 970*500 1240*590 1340*800 8 posts
Die sinking type 2RT-3RT-4RT-Upper ejector-Bottom ejector

Max. Operating

Pressure

 Mpa 20 20 20 20 20 20 20 20 20
Motor Power hp 15(11kw) 15(11kw) 15(11kw) 15(11kw)

30/7.5

(22kw/5.5kw)

 20(15kw) 20(15kw) 25(18.5kw)

30+20

(22+15kw)
Heater Power Kw 15.3 18 24 24 45 29.75 35 42 90
Total Power Kw 30.3 33 39 39 80 48.75 54 64.5 150
Gross weight Ton 7.3 8 9.5 10.5 25 14.5 18.5 22 650
Dimension(L*W*H) mm

3400*2400

*2600

3400*2500

*2650

3500*2600

*2700

3600*2600

*2700

5200*2600

*3500

3800*2800

*2800

4000*3050

*2900

4150*3250

*3200

7100*5500

*3800

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding MachineHigh Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding MachineHigh Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine

Product Features

Application

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine


Applications:

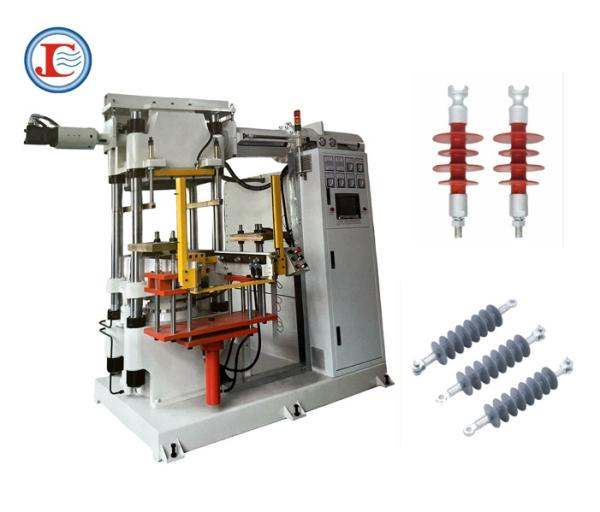

Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding MachineHigh Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine

Company Information:

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine

Trade show

High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine


High Efficiency Energy-Saving Horizontal Silicone/Synthetic Injection Molding Machine

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
