Specifications
Brand Name :
Juchuan
Model Number :
JC-600HI-FL
Certification :
ISO9001:2015
Place of Origin :
China Guangzhou
MOQ :
1set
Price :
USD45000-55000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets per Month
Delivery Time :
45 days
Packaging Details :
Fixed with hard straps
Mold Openning Type :
2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Motor Power :
11kw
Injection Volume :
6000cc
Max Operating Pressure :
20Mpa
Clamp Force :
600ton
Injection Pressure :
2000kgf/cm2
Platen Size :
900*1100mm
Plunger Diameter :
560mm
Min Mold Thickness :
110mm
Plunger Strok :
700mm
Heating Plates Distance :
800mm
Tie Bar Distance :
1105*475mm
Mold Opening Type :
2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die
Heating Power :
26.4KW
Total Power :
37.4KW
Gross Weight :
30ton
Machine Size L*W*H :
4810*3800*3200mm
Description

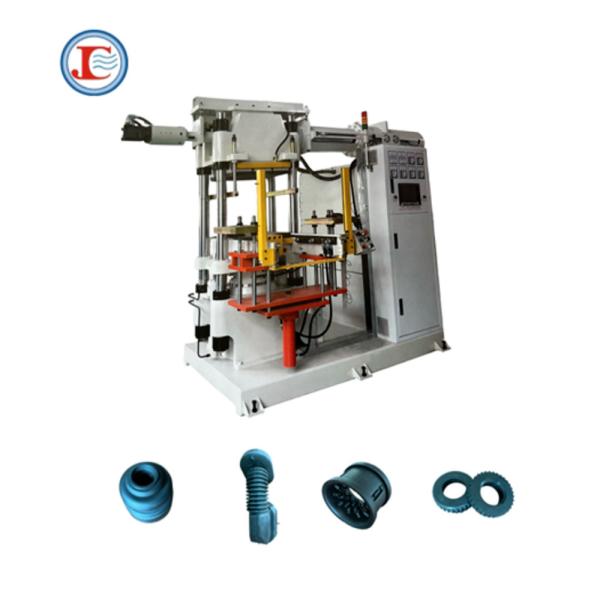

High accuracy & Factory Price 600ton Horizontal Rubber Injection Molding Machine for making rubber silicone products

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System

Machine Features

* Special two feeding system structure, which has the fuction of making the silicone material and get the best exhaust effect without aging.

* Large-capacity storage barrel design, easy and quickly feeding silicone material.

* This machine is suitable for making silicone products with hardness less than 60 degress, such as silicone insulators, lightening arresters, cable accessories and other silicone products.

Main Technical Parameters:

Model 200HI-FL 300HI-FL 400HI-FL 500HI-FL
Clamping Force (Ton) 200 300 400 500
Injection Volume (cc) 2000 3000 4000 8000
Injection Pressure (kgf/cm²) 2000 2000 2000 2000
Platen Size (mm) 550*560 700*700 700*700 900*900
Plunger Diameter (mm) Φ360 Φ450 Φ500 Φ560
Min. Mold Thickness (mm) 100 200 200 200
Plunger Stroke (mm) 400 400(600) 400 500
Heating Plates Distance (mm) 500-600 600 600 700
The Bar Distance (mm) 640*310 820*395 820*395 1105*475
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20 20
Motor Power (KW) 11 11 11 11
Heating Power (KW) 15.3 24 24 24.2
Total Power (KW) 26.3 35 35 35.2
Gross Weight (Ton) 7.8 9.5 10.5 28
Machine Size L*W*H (mm) 3400*2400*2600 3500*2600*2700 3500*2600*2700 5100*3400*3000


Applications:

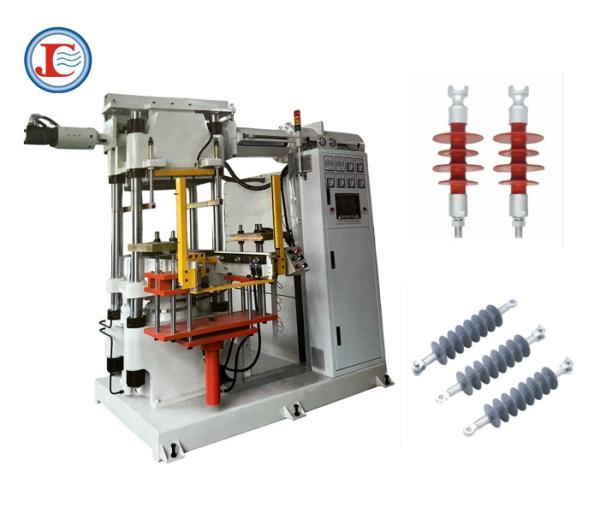

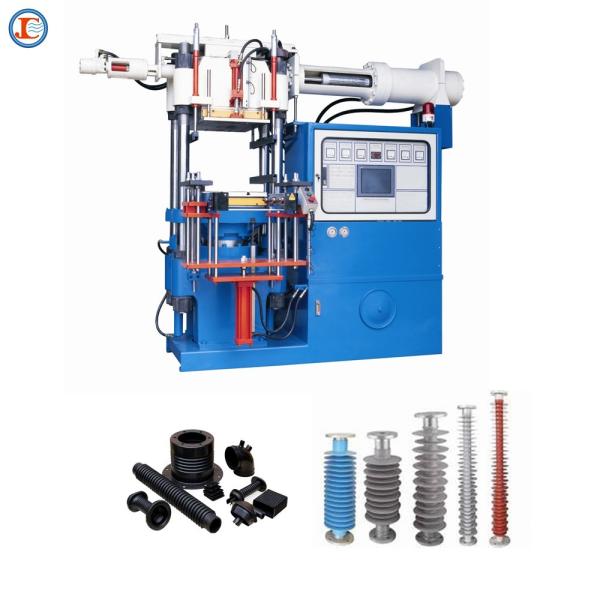

Juchuan HI-FL Horizontal Rubber Injection Molding Machine is perfect for producing rubber insulator and silicon insulator. This machine is made in China Guangzhou and has a max operating pressure of 20Mpa. It is equipped with an injection molding mold type and Japan Mitsubishi control system. It has a clamping force of 300 and motor power of 11kw, making it an ideal choice for silicon insulator making machine and Silicon Insulator Injection Machine.

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding SystemHigh Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System

Company Information:

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System

Trade show

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System


High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

High Accuracy 600ton Horizontal Rubber Injection Molding Machine Two Feeding System
