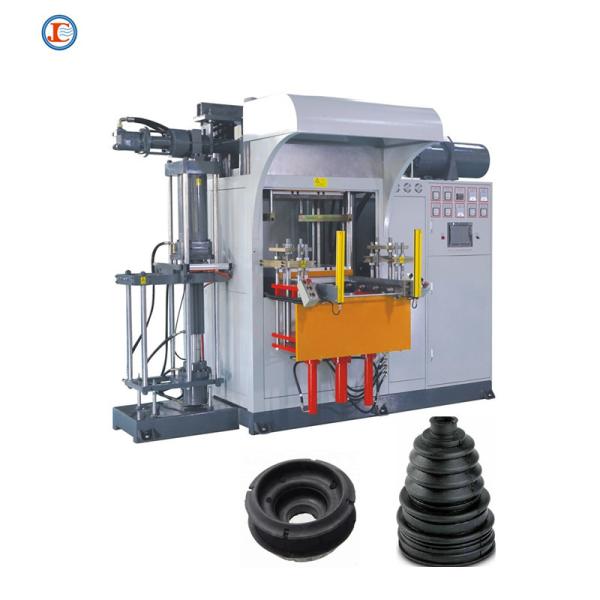

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
Specifications
Brand Name :
Juchuan
Model Number :
JC-500HI-FL
Certification :
ISO9001:2015
Place of Origin :
China Guangzhou
MOQ :
1set
Price :
USD45000-55000/set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 Sets per Month
Delivery Time :
45 days
Packaging Details :
container
Mold Openning Type :
2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Motor Power :
11kw
Injection Volume :
16000cc
Max Operating Pressure :
20Mpa
Clamp Force :
500ton
Injection Pressure :
2000kgf/cm2
Platen Size :
900*1100mm
Plunger Diameter :
560mm
Min Mold Thickness :
110mm
Plunger Strok :
700mm
Heating Plates Distance :
800mm
Tie Bar Distance :
1105*475mm
Mold Opening Type :
2RT-3RT-4RT-Upper Hanging Die-Lower Hanging Die
Heating Power :
26.4KW
Total Power :
37.4KW
Gross Weight :
30ton
Machine Size L*W*H :
4810*3800*3200mm
Description

Factory Price & Automatic 500ton Horizontal Silicone Injection Molding Machine for making insulator / auto parts

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Machine Features:

* Special two feeding system structure, which has the fuction of making the silicone material and get the best exhaust effect without aging.

* Large-capacity storage barrel design, easy and quickly feeding silicone material.

* This machine is suitable for making silicone products with hardness less than 60 degress, such as silicone insulators, lightening arresters, cable accessories and other silicone products.

Main Technical Parameters:

MODEL 200HI-FL 250HI-FL 300HI-FL 400HI-FL 500HI-FL 550HI-FL 600HI-FL 800HI-FL
Clamp Force(Ton) 200 250 300 400 500 550 600 800
Injection Volume(cc) 2000 2500 3000 4000 16000 10000 (16000) 6000 8000
Injection Pressure(kgf/cm2) 2000 2000 2000 2000 2000 2000 2000 2000
Platen Size(mm) 550*560 600*700 700*700 700*700 900*1100 900*1100 850*850 1000*1000
Plunger Diameter(mm) Φ360 Φ400 Φ450 Φ500 Φ560 Customized Customized Customized
Min. Mold Thickness(mm) 100 100 200 200 110 260 200 250
Plunger Stroke(mm) 500 500 400(600) 400 700 700 500 500
Heating Plates Distance(mm) 600 600 600 600 800 960 700 750
Tie Bar Distance(mm) 640*310 705*400 820*395 820*395 1105*475 850*640 970*500 1240*590
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure(MPa) 20 20 20 20 20 20 20 20
Motor Power(KW) 11 11 11 11 11 15 15 15
Heating Power(KW) 15.3 18 24 24 26.4 45 29.75 35
Total Power(KW) 26.3 29 35 35 37.4 60 44.75 50
Gross Weight(Ton) 7.3 8 9.5 10.5 30 25 14.5 18.5
Machine Size L*W*H(mm) 3400*2400*2600 3400*2500*2650 3500*2600*2700 3500*2600*2700 4810*3800*3200 5200*2600*3500 3800*2800*2800 4000*3050*2900


Applications:

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Company Information:

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Trade show:

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts


Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts

Our service:

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.

Automatic 500ton Horizontal Silicone Injection Molding Machine For Insulator / Auto Parts
