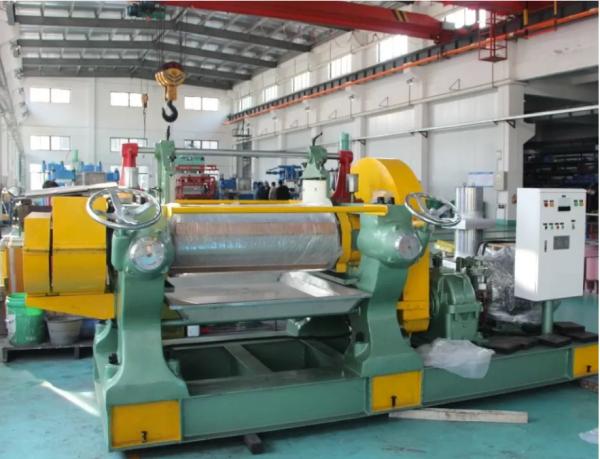

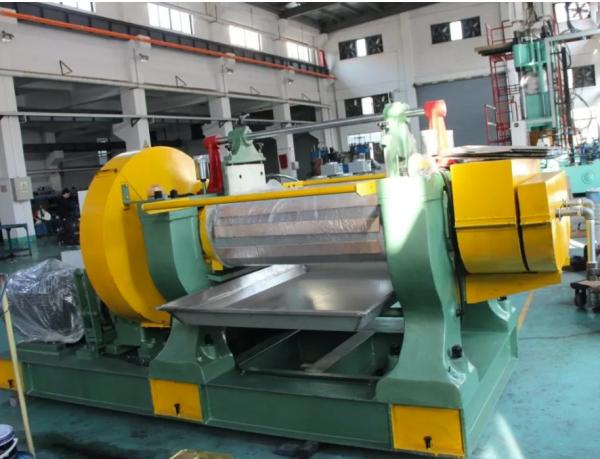

400MM Roller Rubber Compounding Equipment Rubber Mixing Machine For Solid Silicone
400MM Roller Rubber Compounding Equipment Rubber Mixing Machine For Solid Silicone
400MM Roller Rubber Compounding Equipment Rubber Mixing Machine For Solid Silicone
400MM Roller Rubber Compounding Equipment Rubber Mixing Machine For Solid Silicone
Specifications
Brand Name :
Juchuan
Model Number :
JC-XK-400
Certification :
SGS CE
Place of Origin :
China
MOQ :
1set
Price :
USD 21800-40000one set
Payment Terms :
L/C, T/T
Supply Ability :
1000sets
Delivery Time :
50days
Description
Detailed Product Description
Roller Diameter: 400x100mm Input Material: 25-35kg
Roller Rate: 1:1.27 Motor Power: 45KW
Dimension: 4200x1800x1800 Gross Weight: 8300kg
High Light:

rubber mixing equipment

,

rubber compounding equipmen

Easy operate Open Rubber Mixer Machine Two Roll Rubber Mixer Machine For Raw Material

What's Open Rubber Mixer Machine?

Open rubber mixer machine is mainly used for mixing natural rubber or renewable rubber desulfurization after mixing, plastic refining, tabletting.

The composition of the machine:

The machine is mainly composed : a base, a frame, front and rear rollers, transmission gears, a reducer, a pitch adjusting device, a roller temperature adjusting device, a safety switch and an electric control system.

Roller material is alloy chilled cast iron, with high hardness and wear resistance, roll temperature adjustment device can be introduced into the roller steam or cooling water to adjust the roll temperature to meet the process requirements.

Main features:

A. The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof. The internal cavity is processed to make temperature well proportioned on the roll surface.

B. The machine is equipped with an overload protection device to prevent the main components from being damaged.

C. The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.

D. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.

E. The base frame is a whole framework, which is convenient for installation.

Main Technical Parameters:

Specifications XK-360 XK-400 XK-450
Roller Diameter 360x900mm 400x1000mm 450x1200mm
Material Input 20-25kg 25-35kg 30-50kg
Roller Rate 01:01.3 01:01.3 01:01.3
Motor Power 30KW 45KW 55KW
Dimension 3800x1700x1700mm 4200x1800x1800mm 5100x1800x1800mm
Gross Weight 6300kg 8300kg 1300kg
