Specifications
plastic processed :
PA, TR
style :
VERTICAL
plasticizing capacity(g/s) :
230
mold height(mm) :
160 - 400 mm
ejector number :
Other
ejector stroke(mm) :
75
ejector force(kn) :
27
theoretical shot volume(cm³) :
145
injection rate (g/s) :
120
machine type :
Hydraulic
injection weight (g) :
130
screw speed (rpm) :
1 - 300 rpm
screw diameter (mm) :
25
Screw L/D Ratio :
24
distance between tie bars :
570mm
weight (kg) :
9000
Place of Origin :
Guangdong, China
open stroke(mm) :
400
Model Number :
JTT-1700-2V2R
Brand Name :
JINTONG
power (kw) :
45.2
warranty :
1 Year
key selling points :
Multifunctional
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, Motor, Pump, PLC, Pressure Vessel, Screw
Opening Stroke :
270MM
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
25MM
oil tank :
800L
Product name :
TR glasses spectacle frame two color injection molding machine 170T
rotary table diameter :
1080mm
max daylight :
550mm
min old height :
250mm
ejector force :
2.7T
MOQ :
1
Price :
$59,000-61,000
Description

Get the Hightlights

  • Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
  • Clamping force: 170T
  • Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
  • One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
  • Injection system can be used individually
  • two color/material inject at the same time, suitable for all kinds of mold
  • samples: tooth brush, trademark, different kinds of accessories,handle of bicycle or electric vehicles

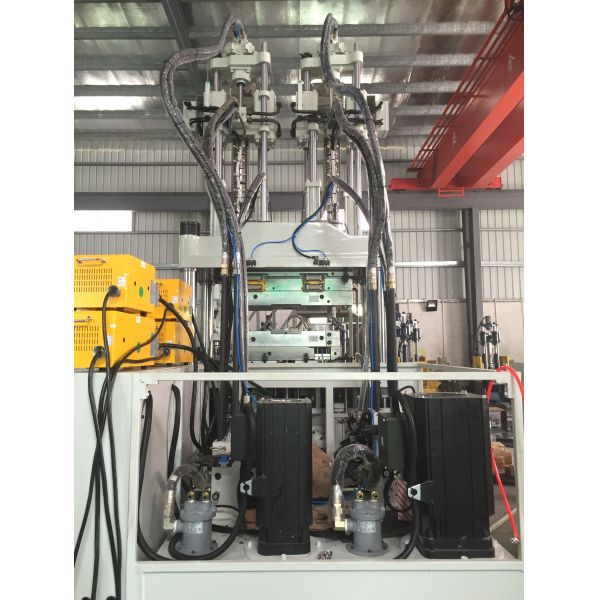

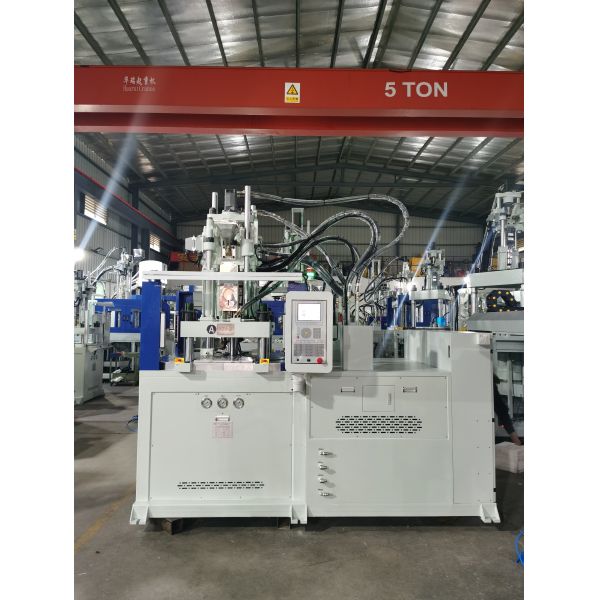

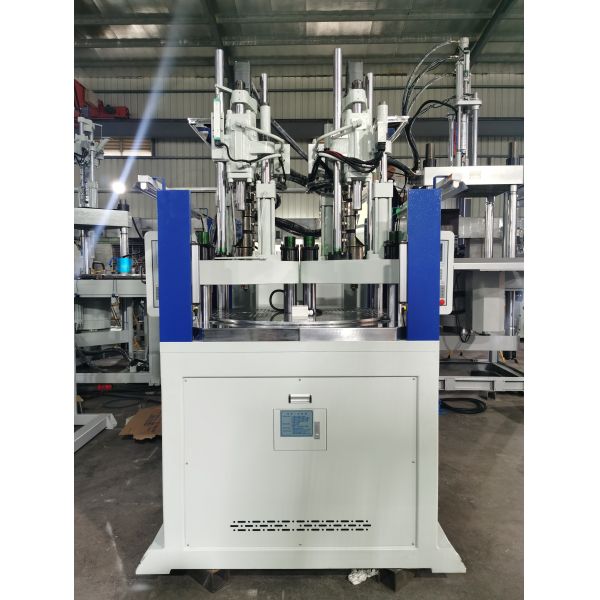

DETAIL SHOT
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.

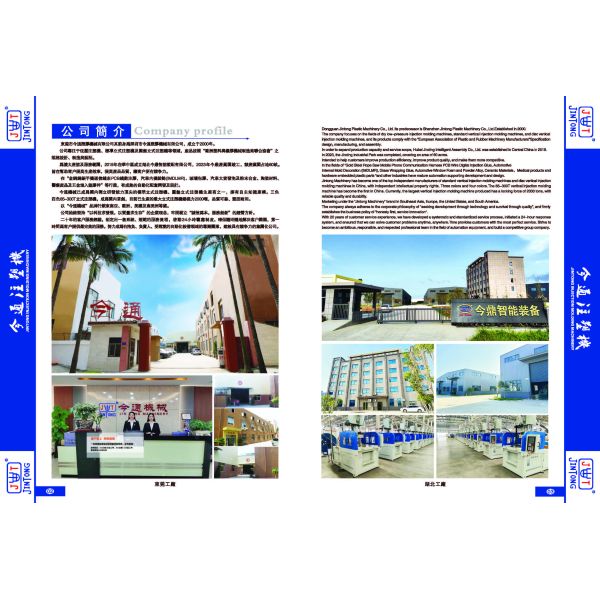

COMPANY OVERVIEW
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
COMPETITIVE ADVANTAGES
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing

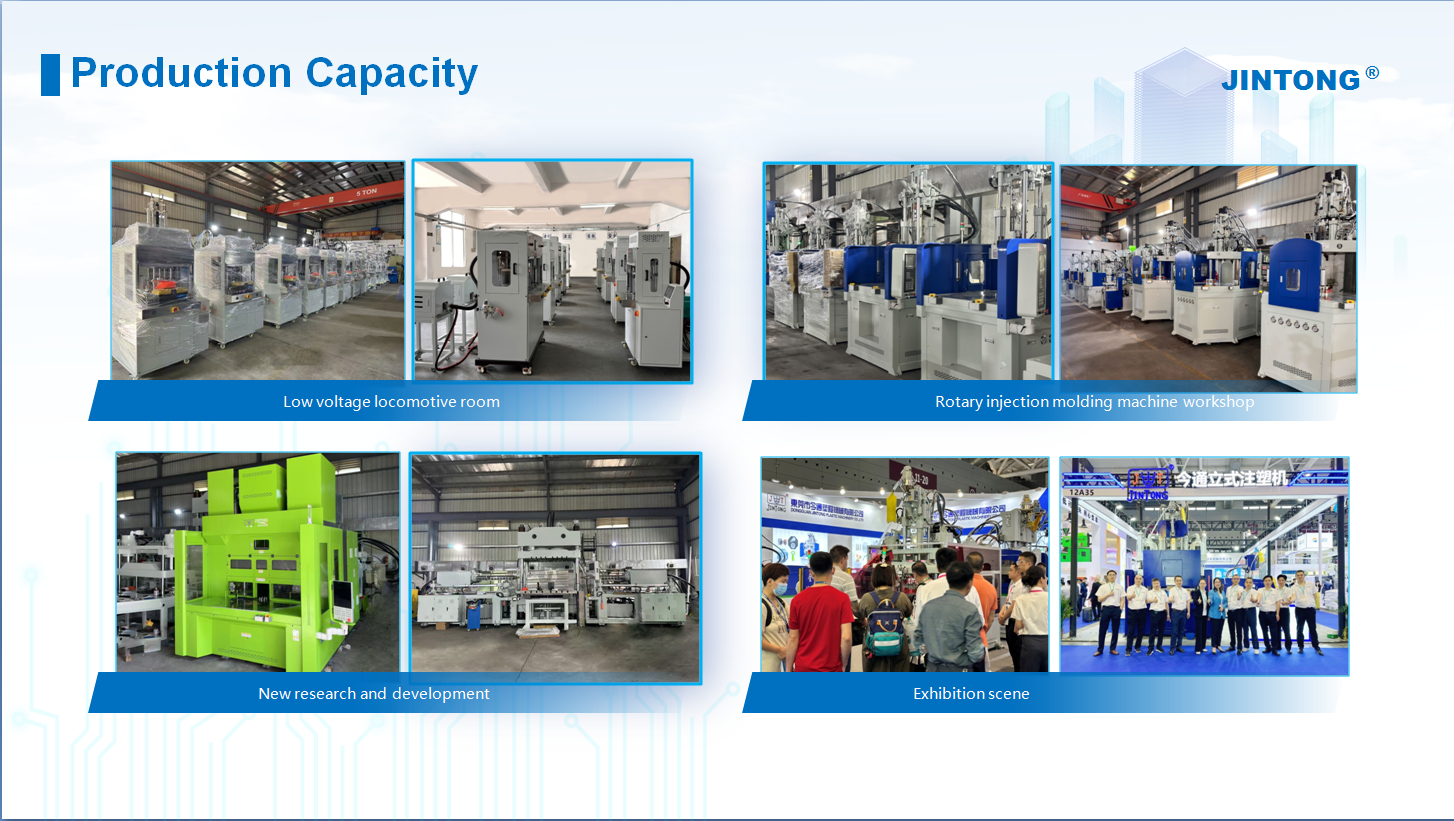

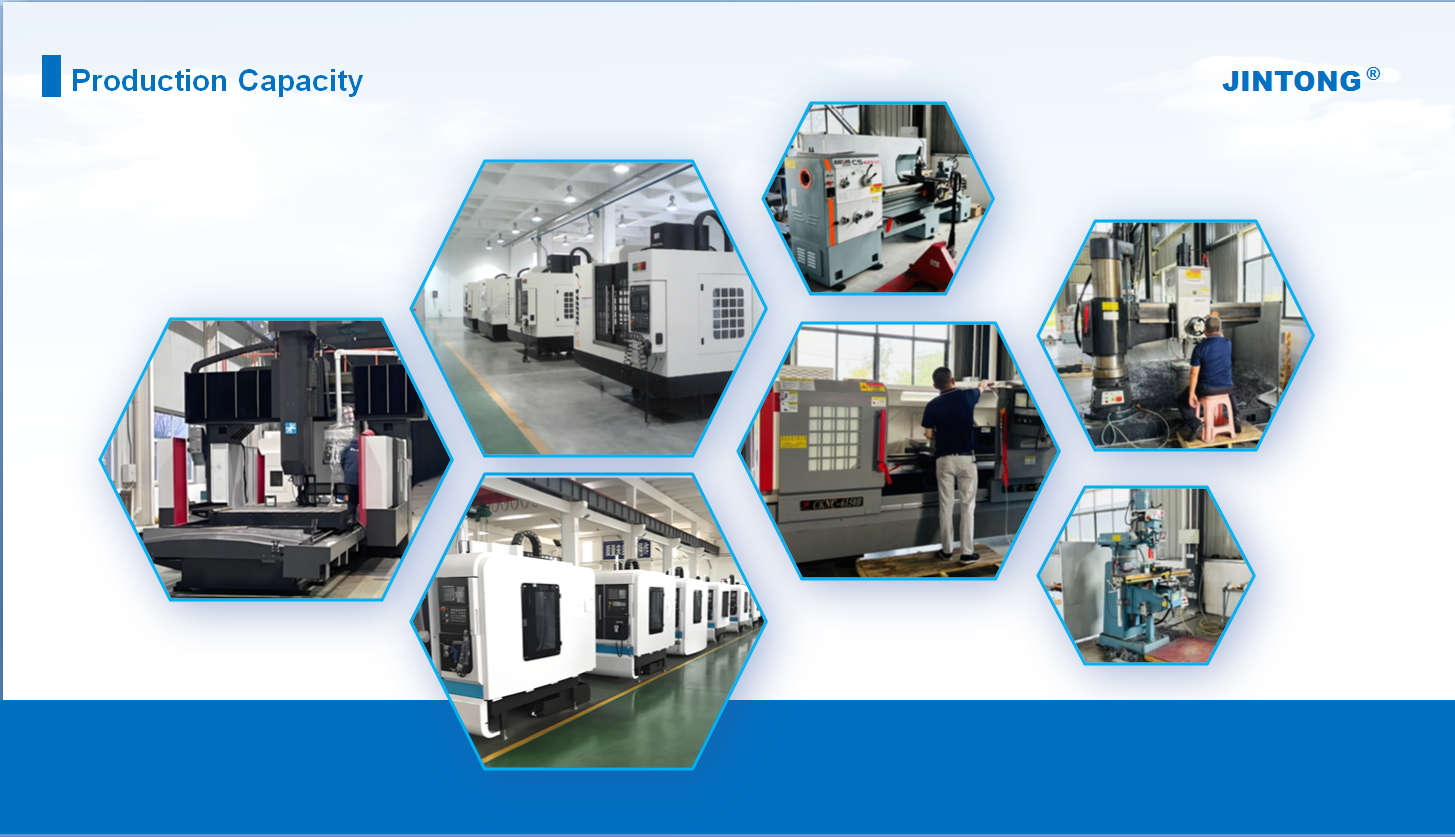

FACTORY PROFILE
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing

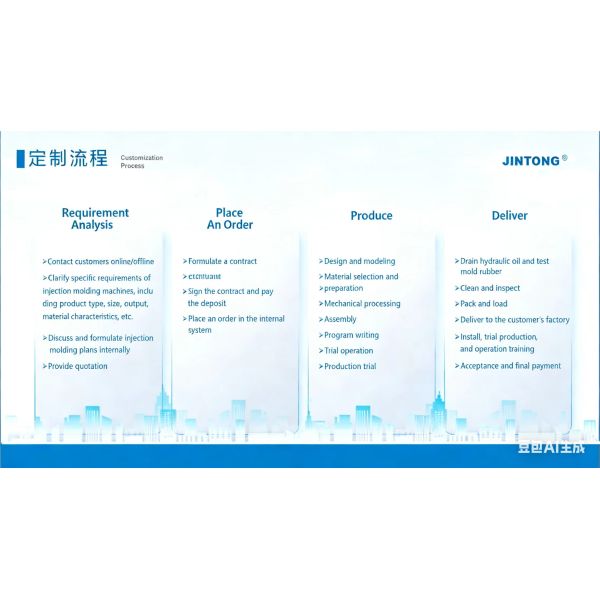

CUSTOMIZATION CAPABILITIES
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
PRODUCTION WORKFLOW
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing

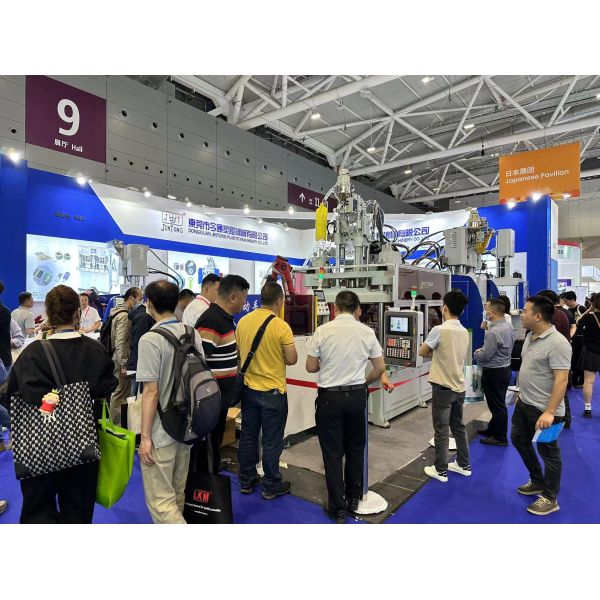

TRADE SHOW PARTICIPATION
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing

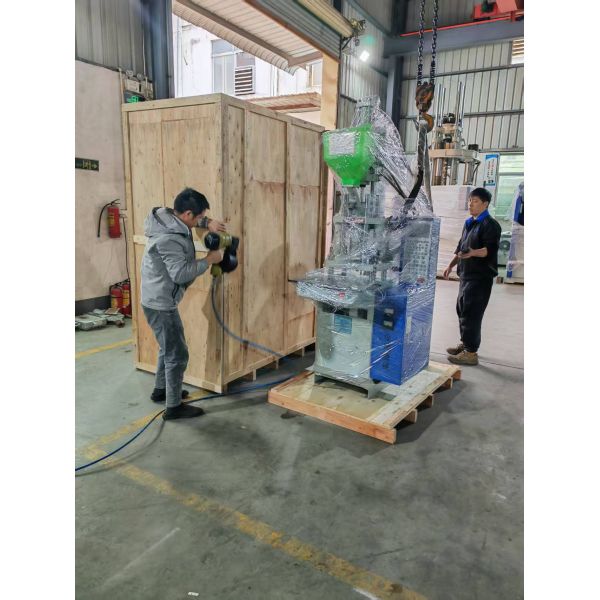

PACKAGING & SHIPPING SPECIFICATIONS
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
TR Glasses Spectacle Frame Two Color Vertical Injection Molding Machine 170T with PLC Pump Motor & Bearing for PA Processing
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
