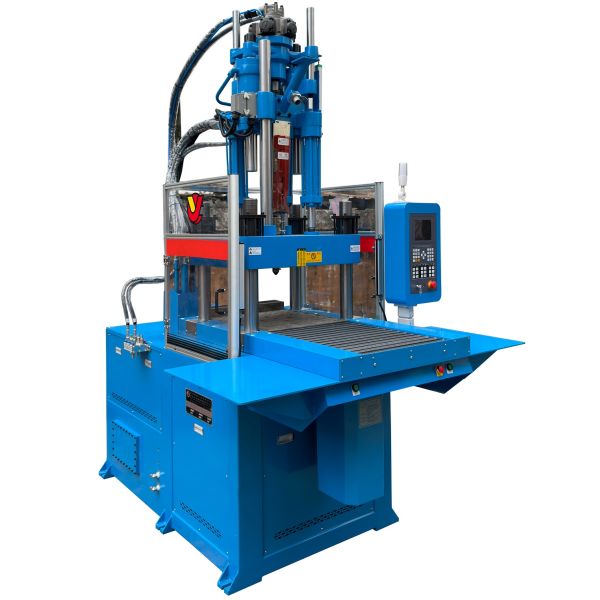

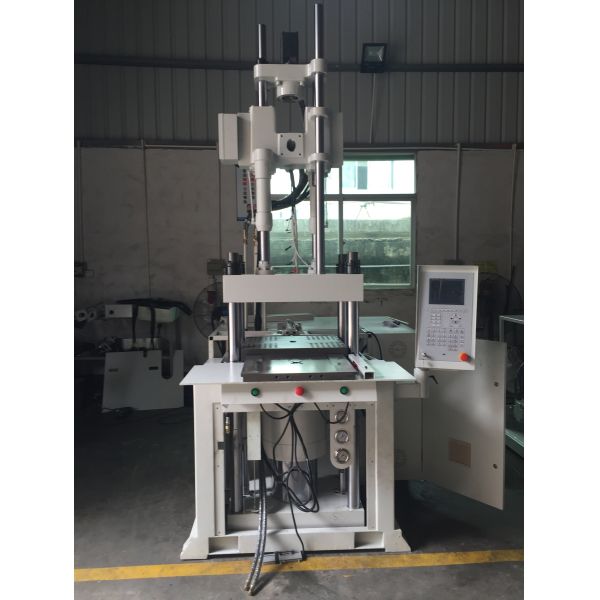

Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Specifications
plastic processed :
PC, PA, BMC
style :
VERTICAL
plasticizing capacity(g/s) :
150
mold height(mm) :
260 - 450 mm(10.24-17.72in)
ejector number :
1
ejector stroke(mm) :
45
ejector force(kn) :
13
theoretical shot volume(cm³) :
175
injection rate (g/s) :
177
machine type :
Hydraulic
injection weight (g) :
320
screw speed (rpm) :
1 - 200 rpm
screw diameter (mm) :
45
Screw L/D Ratio :
22
distance between tie bars :
460
weight (kg) :
2300
Place of Origin :
Guangdong, China
open stroke(mm) :
400
Model Number :
JTT-1200D
Brand Name :
JINTONG
power (kw) :
22.5
warranty :
1 Year
key selling points :
High Safety Level
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, PLC, Pressure Vessel, Engine
Opening Stroke :
250mm
After-sales Service Provided :
Engineers available to service machinery overseas
screw diameter :
35mm 40mm 45mm
screw stroke :
140mm
Product name :
Single Shuttle Slider Hydraulic Vertical Plastic Injection JTT-1200D
platen size :
840*500mm
max daylight :
500mm
min old height :
250mm
MOQ :
1
Price :
$24,200-25,000
Description

Get the Hightlights

  • Vertical clamping, vertical injection D single slide table(one up die and one low die)
  • clamping force: 120T
  • Single slide table offer operation convenience
  • Optional saving energy motor
  • Fixed low die and movable up die to avoid insert part shift;
  • oil hydraulic unit under low die to ejector finshed products;
  • ejector speed and stroke adjusted by actual demand Combined with conveyor system used on production line
CUSTOMIZATION CAPABILITIES
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
PRODUCTION WORKFLOW
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand

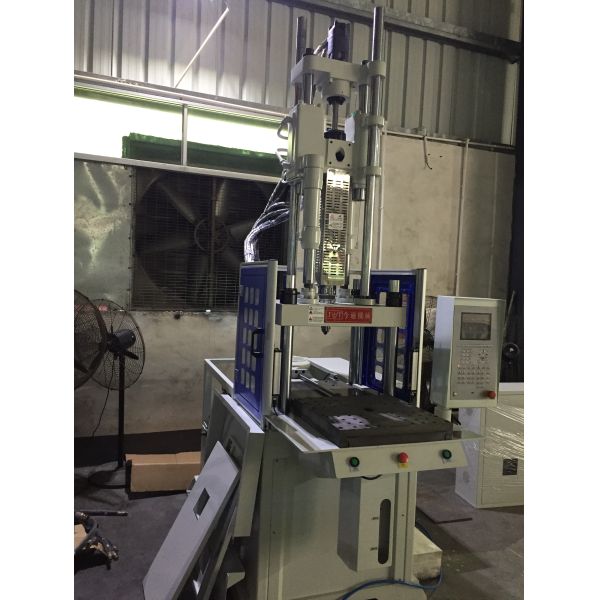

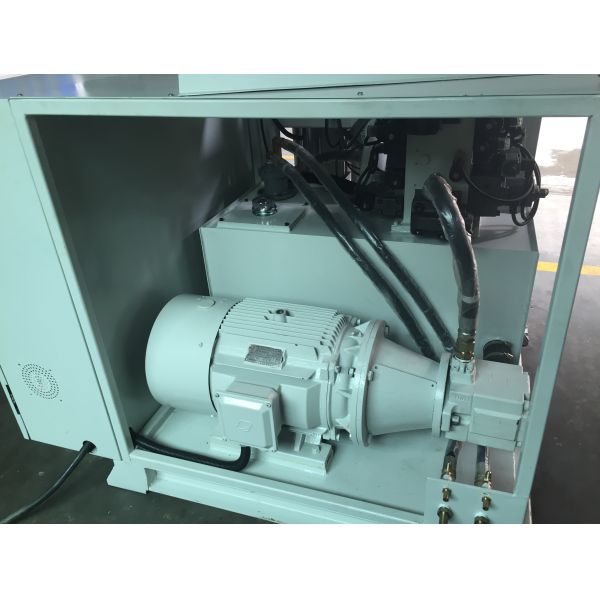

DETAIL SHOT
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
ABOUT THE SUPPLIER
Dongguan Jintong Plastic Machinery Co., Ltd. specializes in vertical injection molding machines, offering advanced solutions for diverse industries. With 2000T clamping force capabilities and proprietary IP, the company delivers high productivity, precision, and reliability. Certified to European standards, Jintong provides comprehensive service and export solutions across Southeast Asia, Europe, and South America.
COMPANY OVERVIEW
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
COMPETITIVE ADVANTAGES
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand

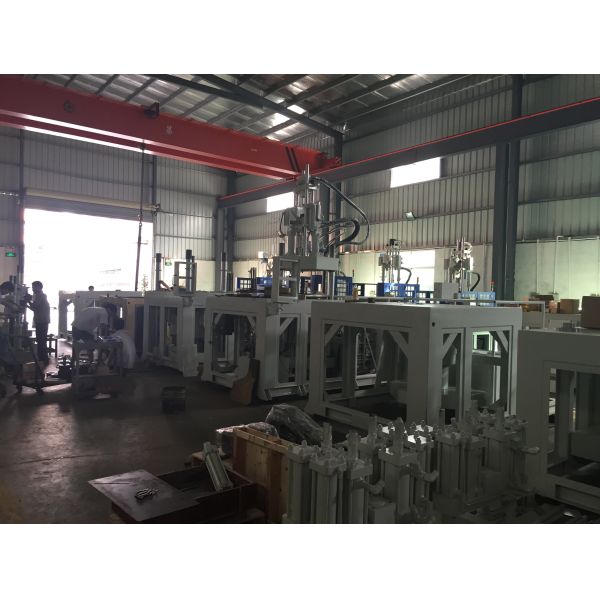

FACTORY PROFILE
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
TRADE SHOW PARTICIPATION
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
PACKAGING & SHIPPING SPECIFICATIONS
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
Single Shuttle Slider Hydraulic Vertical Plastic Injection Molding Machine 120T PLC Controlled PA/PC Compatible JINTONG Brand
FAQs
Q: Are you trading company or factory?
A: We are factory to produce vertical injection molding machine more than 20 years.
Q: What is your machine warranty period?
A: 1 year against BL on board time
