55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
55T Clamping Force High-accuracy Rotary Table Plastic Injection Molding Machine with 1 Year Warranty
Specifications
Place of Origin :
Guangdong, China
Model Number :
JTT-550R
Brand Name :
JINTONG
MOQ :
1 piece
Price :
$19,000-21,000 / piece
Plasticizing capacity :
150 g/s
Mold height :
160 - 300 mm
Ejector number :
2
Ejector stroke :
60 mm
Ejector force :
1.8 kN
Theoretical shot volume :
170 cm³
Injection rate :
113 g/s
Injection weight :
141 g
Screw speed :
0 - 215 rpm
Screw diameter :
40 mm
Screw L/D Ratio :
22
Distance between tie bars :
510 mm
Weight :
2400 kg
Open stroke :
540 mm
Power :
12.8 kW
Description
Product Description

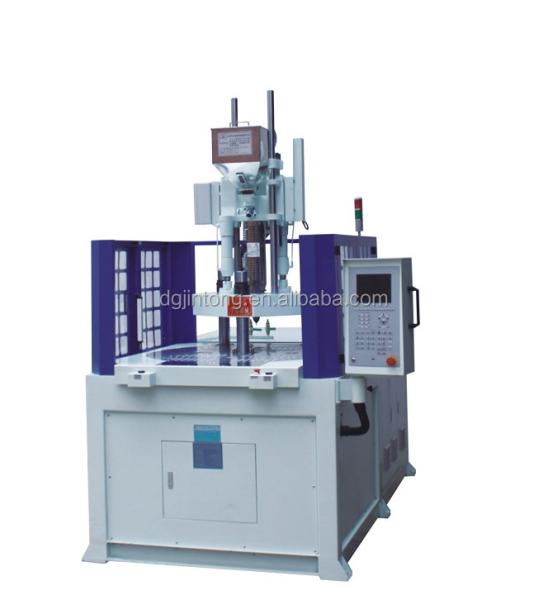

Best seller rotary table plastic injection molding machine JTT-550R

Clamping Force: 55T

Injection Weight: 80-141g


Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor


Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications

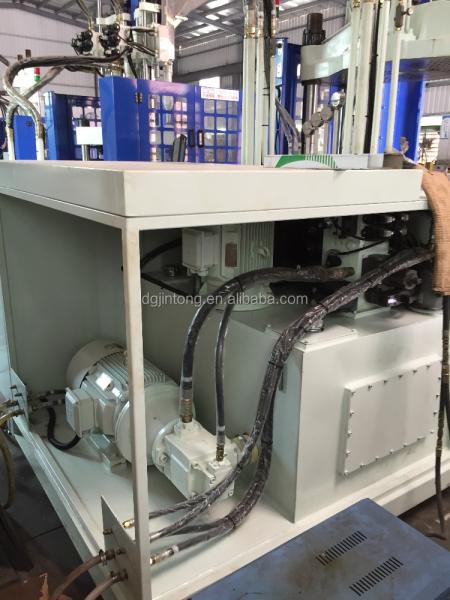

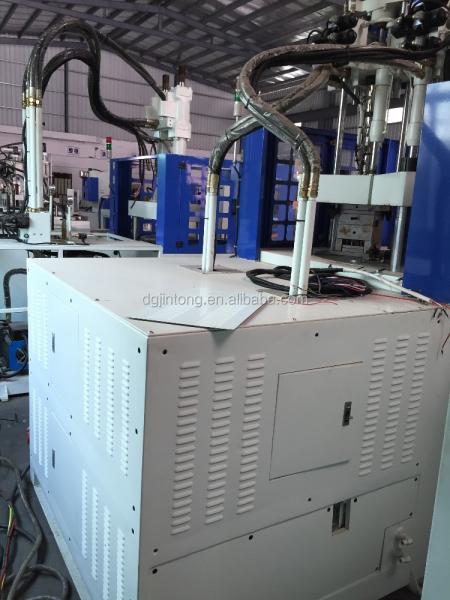

Detailed Images
Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE


17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
