Specifications
Place of Origin :
China
Model Number :
JTT-2000R
Brand Name :
JINTONG
Certification :
ISO9001 CE
MOQ :
1 piece
Price :
$62,000-66,000 / piece
Clamping Force :
200T
Injection Weight :
456-662g
Ejector Stroke :
75 mm
Ejector Force :
48 kN
Shot Volume :
678 cm³
Injection Rate :
212 g/s
Screw Diameter :
60 mm
Tie Bar Distance :
760mm
Machine Weight :
12000 kg
Open Stroke :
600 mm
Power :
44.3 kW
Screw Stroke :
260mm
Opening Force :
22.4T
Rotary Table Diameter :
1500mm
Machine Dimensions :
3.0*2.2*3.6m
Description

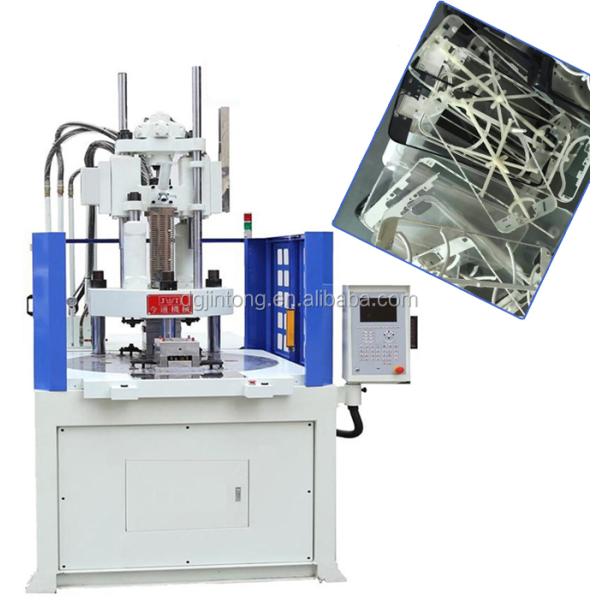

Rotary table vertical plastic injection moulding machine 200T JTT-2000R

Clamping Force: 200T

Injection Weight: 456-662g


Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor


Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
