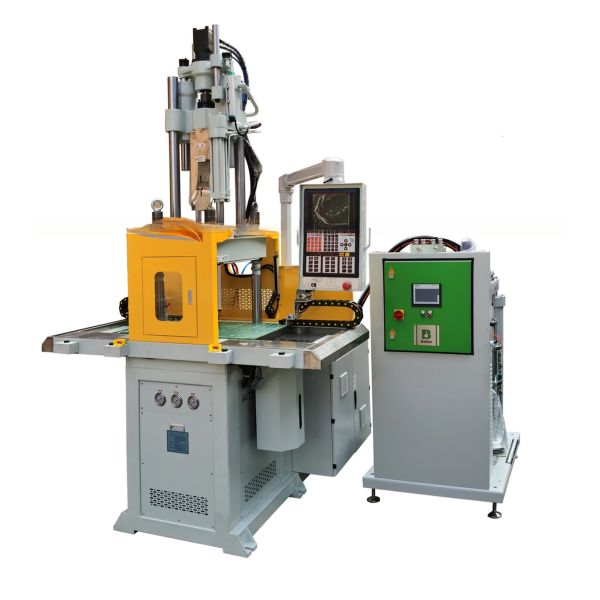

Liquid Silicone Rubber Injection Molding Machine
Liquid Silicone Rubber Injection Molding Machine
Specifications
Brand Name :
JINTONG
Model Number :
JTT-850DM LSR
Place of Origin :
DONGGUAN
MOQ :
1
Price :
USD41400--46000/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50PCS/MONTH
Delivery Time :
60 days
Packaging Details :
plywood case
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support
Power(Kw) :
21.6
Automatic :
yes, semi-auto
Certification :
CE ISO
Plastic type :
Termoplastic
Clamping force :
85T
Warranty :
1 year free spare parts, life-spen service
Keyword :
liquid silicone products, medical mask, switch
Description

LSR liquid silicone rubber double slide shuttle injection molding machine 85T JTT-850DM LSR

Clamping Force: 85T

Injection Weight: 165-272g


Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

　 Model 　 JTT-850DM
injection system Screw Diameter mm 35 40 45 50
Injection Pressure kg/cm2 2171 1663 1314 1064
Theoretical Shot Volume cm3 183 238 302 373
Injection Rate cm3/sec 82 107 135 167
Screw Stroke mm 190
Screw Speed rpm 0-200
Nozzle Contact Force tons 2.9
Nozzle Stroke mm 220
Number of Temperature Control - 4
Hopper Capacity L 30
clamping system Clamping Force tons 85
Opening Force tons 10.5
Platen Size mm 750x500
Distance Between Tie Bar mm 590x340
Min Mold Height mm 250
Opening Stroke mm 250
Max Open Daylight mm 500
Ejector Force tons 3.3
Ejector Stroke mm 75
sliding system Slide Stroke mm 500
Max Mold Weight kg 200
Station Clearance mm ±0.02
oil pressure system Max Hydraulic Pressure kg/cm2 140
Pump Output L/min 76
Oil Reservior Capacity L 180
Cooling Water Consumption /hr 1200-1500
Pump Moter Power KW 11
Barrel Heating Power kw 5.6
Total Power kw 16.6
other Machine Weight tons 3.8
Machine Dimension m 2.31*2.0*3.01
