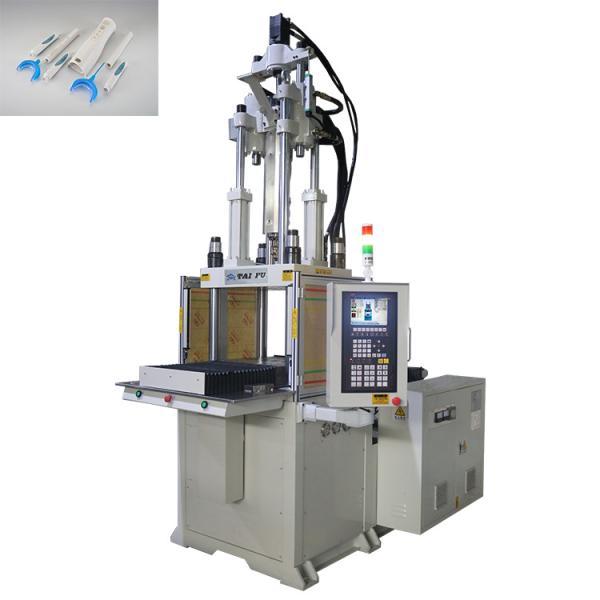

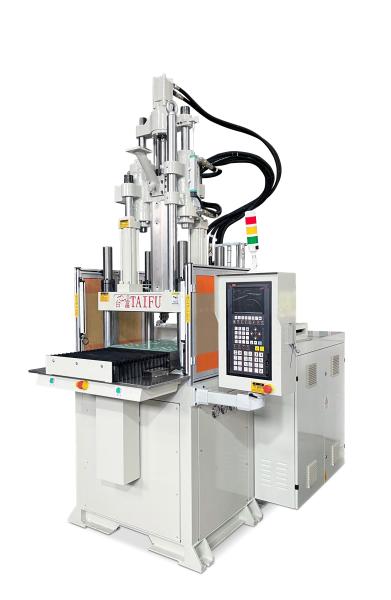

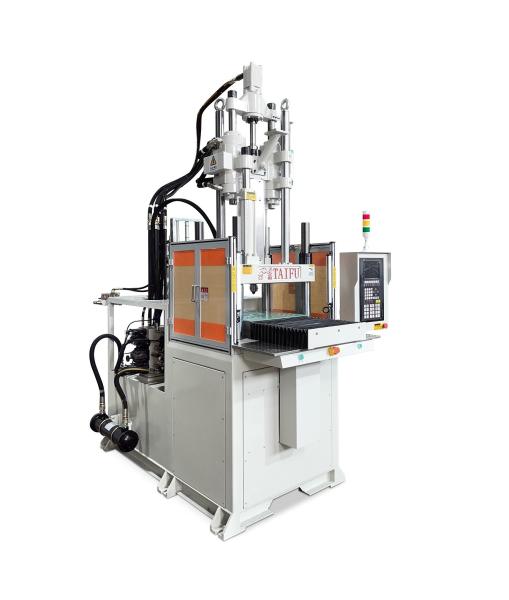

85 Ton Single Slide Vertical Injection Molding Machine For Making Key
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
Specifications
Brand Name :
TAIFU
Model Number :
TFV4-85S
Certification :
CE,ISO9001
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
220 sets/month
Delivery Time :
Negotiable
Packaging Details :
All the machines are fixed and well packaged in the plywood cases.
Model :
TFV4-85S
Product name :
85 Ton Single Slide Vertical Injection Molding Machine For Making Key
Clamping force :
85 Ton
Key selling points :
Easy operate
Function :
Making plastic product
Used for :
key
Warranty :
1 year
Description

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

It is available to customize machines to meet your...

We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The single slide vertical injection molding machine is one of our main products. The product models include 25-1800 tons, and the injection volume can be from 3 grams to 3000 grams.

Vertical mold clamping, vertical injection.

Direct pressure clamping, uniform stress distribution. It has the functions of fast mold clampng, low pressure and slow mold closing, and low pressure mold protection.

The single slide reciprocating design effectively improves the flexibility and safety of production.

We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

ITEMS UNIT TFV4-85S
Injection Unit
Screw Diameter mm 32 36 40
Injection Weight(PS) g 105 133 164
oz 3.69 4.67 5.77
Injection Pressure kgf/cm3 2331 1842 1492
Injection Rate cm3/s 100 126 156
Injection Speed mm/s 124
Screw Speed Rotation r.p.m 10-280
Nozzle Out From Platens mm ≥45
Claping Unit
Clamping Force tf 85/100
Clamping Stroke mm 250
Ejector Distance mm 100
Ejector Force tf 2.7
Others
System Pressure Mpa(kgf/cm3) 13.7(140)/17.2(145)
Oil Tank Capacity L 280
Machine Weight ton 3.9
Machine Dimensions m(L*W*H) 2.2*1.5

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

· WHO WE ARE

TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.


We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

· OFFICE AREA

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.

  • FACTORY AREA

· Parts processing center

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • Machine assembly workshop

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • Warehouse

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • Finished product machine shop

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • PHOTOS OF DIFFERENT EXHIBITIONS

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

  • CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.

  • COOPERATIVE CLIENTS

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • WHAT WE DO

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • GROUP PHOTO OF EMPLOYEES

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU

We are ready to provide a well-built, high-performance products. Contact Us Now!

85 Ton Single Slide Vertical Injection Molding Machine For Making Key

85 Ton Single Slide Vertical Injection Molding Machine For Making Key


Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery

Q2:How do you handle packaging and shipping?

A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.

Q3: What are your terms of payment?

A: 50%TT in advance, 50% balance before shipment. or L/C at sight.

Q4:What advantages of the single slide vertical injection molding machine?

A:It has the functions of fast mold clampng, low pressure and slow mold closing, and low pressure mold protection, and the product is taken out outside the mold clamping area, which is convenient and safe to operate.

Q5: What products can be produced by a single slide vertical injection molding machine?
A: It is suitable for injection molding and multi-purpose injection molding processes of products with inserts, such as filter, key, toothbrush, and other products.
