High-Efficeiency Silicone Strap LSR Injection Molding Machine
High-Efficeiency Silicone Strap LSR Injection Molding Machine
High-Efficeiency Silicone Strap LSR Injection Molding Machine
High-Efficeiency Silicone Strap LSR Injection Molding Machine
High-Efficeiency Silicone Strap LSR Injection Molding Machine
High-Efficeiency Silicone Strap LSR Injection Molding Machine
Specifications
Brand Name :
TAIFU
Model Number :
TFV4-85SD-LSR
Certification :
CE, ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
220 set per month
Delivery Time :
Negotiable
Packaging Details :
All the machines are fixed and well packaged in the plywood cases.
Drive Power :
11KW
Model :
LSR Silicone Injection Molding Machine
Usage :
Medical Parts
Application :
Silicone products
Heating Power :
6.4KW
Type :
Vertical
Injection Capacity :
53-254g
Mould Thickness :
230-480mm
Description

High-Performance Silicone Strap LSR Injection Molding Machine

LSR Silicone Injection Molding Machine is a vertical plastic injection molding machine that is automatic and specifically designed for LSR silicone products. It features a mould opening stroke of 480-680mm, heating power of 6.4-10.7KW, and voltage of 220V. The mould thickness of this machine ranges from 230-280mm. It is suitable for mass production of small and medium-sized precision products, such as mobile phone cases, baby nipples, etc. This machine is a reliable and efficient technology for producing precise and high-quality LSR silicone products.

1. Sepcifications:

UNIT TFV4-85S-LSR TFV4-85SD-LSSR TFV3-85R2-LSR
Injection Unit Screw stroke mm 140
Screw Diameter mm 22 26 28 30 32 36
Theoretical Injection Volume cm3 53 74 86 99 113 143
Injection Weight(LSR) g 59 82 95 109 124 157
oz 2.06 2.88 3.34 3.84 4.37 5.53
Max.Injection Pressure Mpa 248 178 153 133 117 93
kgf/cm2 2531 1812 1563 1361 1196 945
Injection Rate cm3/s 74 103 119 137 156 197
Max Injection Speed mm/s 194
Screw Speed Rotation r.p.m 0-280
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(ton) 833(85)
Clamping Stroke mm 250
Min.Mold Thickness mm 230(310)
Max.Opening mm 480(560)
(L*W)Distance Between Tie Bars mm 520*350 _
(L*W)Max.Mould Size mm 500*470 500*480 360*360
(L*W)Skate size mm 540*490 1120*500 φ1010
QTY of Ejector pcs 3
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 26.5(2.7) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 280 280 310
Electric Power KW 11 11+2.2 11+2.2
Reserved mold electric heating power KW 6*4 6*6 6*6
Machine Dimensions L*W*H m 2.2*1.5*2.8 2.1*1.9*2.8 2.3*1.8*2.7
Cooling water capacity L/min 40
Work Table Height mm 1140+(70) 1140+(70) 1150+(70)
Machine Weight ton 4.00 4.20 4.60

2. Features:

  • Optional adjustable vacuum device to prevent product bubbles, used in baby products, silicone diving products, waterproof accessories, rubber-coated USB connectors, headphone connectors, card trays and rubber-coated sheaths
  • LSR special material tube group, heat-insulating cold water plate, heat insulation
    Fiberglass panels
  • Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

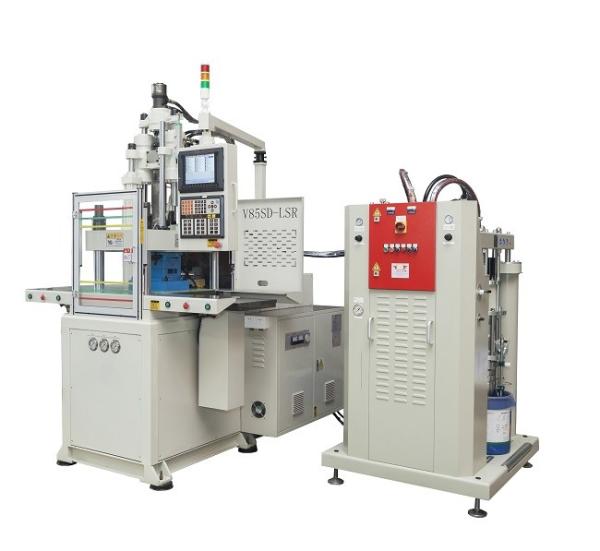

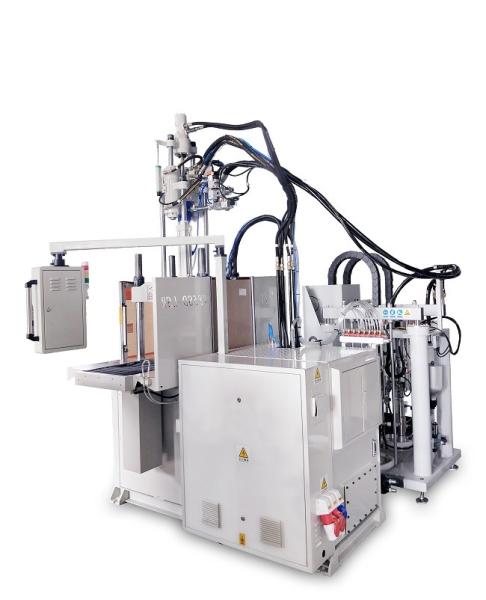

3. Machine Pictures:

High-Efficeiency Silicone Strap LSR Injection Molding Machine

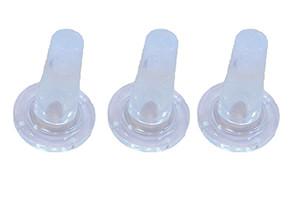

4. Applications:

High-Efficeiency Silicone Strap LSR Injection Molding Machine

5. FAQ:

Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.

Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.

Q: What temperature is liquid silicone rubber injection molding?

A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.

Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.

Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.

Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.

If you are interested in our machines, please do not hesitate to CONTACT US!
