Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Specifications
Brand Name :
TAIFU
Model Number :
H160S-2M-BMC
Certification :
ISO9001,CE
Place of Origin :
Dongguan, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
180 sets/month
Delivery Time :
Negotiable
Packaging Details :
All the machines are fixed and well packaged in the plywood cases.
Name :
Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
Model :
H160S-2M-BMC
Application :
Kitchen Utensil Handle
Advantage :
High Precision, Energy saving and Easy to Operate
Plastic Type :
BMC
Clamping Force :
160 Tons
Motor :
Servo Motor
After-sales Service Provided :
12 months
Description

Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle

It is available to customize machines to meet your...

We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.

Vertical Mold Clamping Horizontal Injection BMC Machine is suitable for

1. Overall packaging of electrical and electronic components
2. Automotive industry: automotive casings, bumpers, light frames, light bowls, trunks and other interior and exterior automotive parts and functional parts, etc.
3. Instrument industry: instrument frames, instrument cases, joysticks, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liners, audio products, etc.
5. Other aspects: electronic copy machines, printing machinery, structural components of office machinery, electronic computer parts, etc.

We can customize various models according to the characteristics of BMC materials

1. Sepcifications:

UNIT H120S-2M-BMC H160S-2M-BMC H220S-2M-BMC
Injection Unit Screw Diameter mm Φ85 Φ100 Φ100
Theoretical Injection Volume cm3 1500 2000 3000
Max.Injection Pressure Mpa(kgf/cm2) 63(639) 104(1060) 68(700)
Injection Rate cm3/s 207 230 305
Injection Speed mm/s 130 129 130
Barrel capacity L 35 45 45
Clamping Unit Clamping Force KN(tf) 1176(120) 1624(160) 2213(220)
Clamping Stroke mm 400 400 400
Open Force kN(tf) 130(13) 130(13) 130(13)
Min.Mold Thickness mm 350 350 350
Max.Opening mm 750 750 750
(L*W)Distance Between Tie Bars mm 525*375 760*380 760*380
(L*W)Max.Mould Size mm 500*580 560*670 560*670
(L*W)Platen Size mm 500*580 560*670 560*670
Ejector Distance mm 100 120 120
Ejector Force KN(tf) 87.7(8.6) 95(9.3) 106(10.4)
Others System Pressure Mpa(kgf/cm2) 17.2(175) 18.4(188) 20.6(210)
Oil Tank Capacity L 300 300 300
Electric Power KW(HP) 26 26 34
Machine Size L*W*H m 3385*126*2840 3385*1260*2840 3385*1260*2840
Machine Weight tf 19 20 22

2. Features:

 (1) Vertical mold clamping, horizontal injection; widely used in home appliance accessories, coils, stators, rotors, motor accessories and other products  (2)A special hydraulic feeding device is installed on the shooting cylinder and is directly connected to the feeding port of the feeding tube to ensure that the barrel will not be deformed due to the force of feeding.  (3)Using imported hydraulic parts, it has fast response, high precision, stability and durability.

3. Machine Pictures:

Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil HandleVertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle

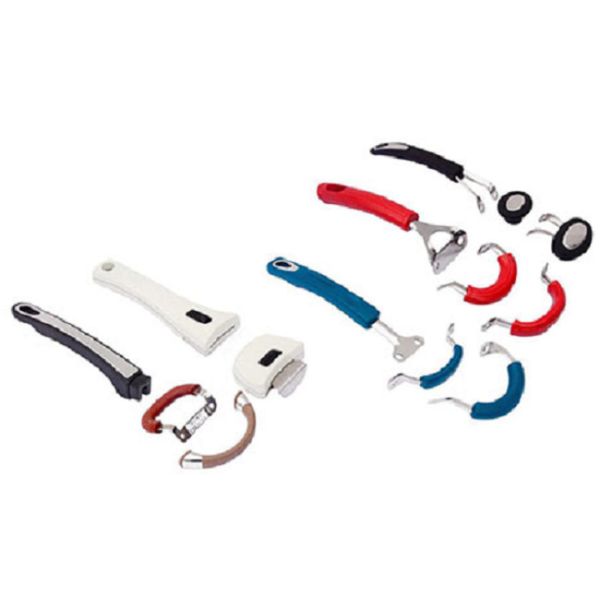

4. Applications:

Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle

5. FAQ:

Q: Injection molding process of BMC injection molding machine

A: Temperature: barrel temperature and mold temperature
During injection molding processing, BMC is required to maintain a low viscosity flow state for a long time under the barrel temperature; generally, the barrel temperature should be able to meet the lower limit of BMC.

Q: What is the injection pressure of BMC injection molding machine?
A: Since BMC has poor fluidity, fast solidification, and complex mold structure, the injection pressure should be higher, generally 80~16OMPa.

Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.

Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime.

Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.

If you are interested in our machines, please do not hesitate to CONTACT US!
