Specifications
Brand Name :
Hengcheng
Model Number :
PCD series
Certification :
ISO CE
Place of Origin :
China,Hefei
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5 sets\month
Delivery Time :
90 days
Packaging Details :
Standard shipping packaging
Name :
Positive pressure conveying pump
Material :
Carbon Steel, Stainless Steel 304
Capacity :
5-150 m³/h
Conveying Phase :
Dense Phase
Silo Body Material :
Carbon Steel (Q235), Stainless Steel (304/316)
Conveyed Materials :
ement, Fly Ash, Limestone Powder, Plastic Granules, Wheat Flour
Purpose :
Transporting powdered materials
Working Pressure :
0.2-0.6 MPa
Description
Product Overview
Pneumatic Conveying Pump or Dense Phase Pump is an industrial equipment that uses compressed air to densely transport powdered and granular materials in pipelines. It is commonly used for long-distance and large capacity transportation, such as cement, fly ash, chemical powders, etc.

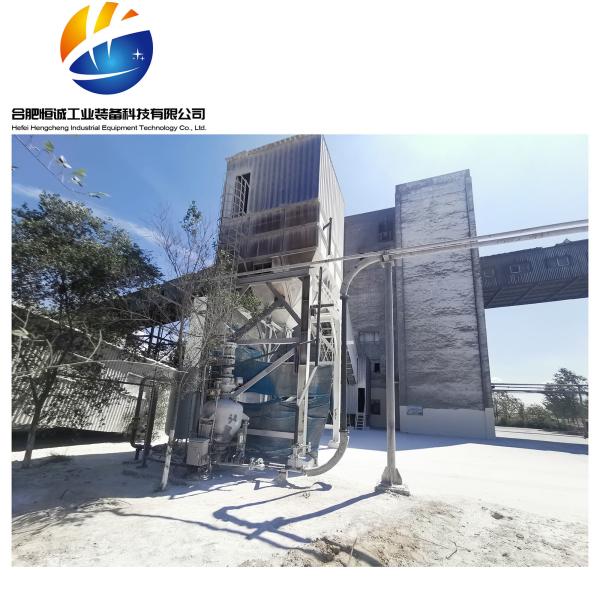

High-Quality Pneumatic Conveying Pump Air Conveying Pump For Bulk Material Handling

4. Core advantages
Efficient and energy-saving: Compared to mechanical conveying, energy consumption is reduced by 20% -40%.
Environmentally friendly and sealed: No dust leakage, in compliance with ISO environmental standards.
Low maintenance: No mechanical moving parts, reducing wear and tear.
Flexible layout: Pipelines can be arranged around obstacles to save space.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m³) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m³ 18~22m³ 20~27m³ 26~32m³ Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25


Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density(t/) Model PCD18/N PCD20/N PCD20/N Reference Conveying Distance
Specification 5.0~6.7 7.0~10.0 10.0~15.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 12~20 16~32 25~50 500 30
Fly Ash 0.75 18~32 25~48 35~70 50
Limestone Powder/Mineral Powder 0.8 20~35 26~51 38~75 500 30
Cement/Raw Meal 1.0 24~42 32~65 48~95 500 30
Silicon Powder 1.2 28~50 40~75 55~115 500 30


Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material Bulk Density(t/) Model PCD08/M PCD10/M PCD12/M PCD14/M Reference Conveying Distance
Specification 0.2~0.5 0.6~1.6 1.5~2.5 2.5~5.0 Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 0.5~1.8 1.5~5.5 5.0~9.0 8.0~18.0 100 20
Fly Ash 0.75 0.9~2.8 2.5~8.5 7.0~14.0 12.0~27.0 100 20
Limestone Powder/Mineral Powder 0.8 1.0~3.0 3.0~9.0 8.0~15.0 12.0~28.0 100 20
Cement/Raw Meal 1.0 1.2~3.5 3.5~11.5 10.0~18.0 16.0~36.0 100 20
Silicon Powder 1.2 1.5~4.0 4.5~13.5 12.0~20.0 19.0~43.0 100 20

High-Quality Pneumatic Conveying Pump Air Conveying Pump For Bulk Material Handling


The overseas after-sales service of pneumatic conveying bin pumps is a key link to ensure the long-term stable operation of the equipment, especially in cross-border business. Efficient after-sales service can improve customer satisfaction and reduce downtime losses.
1. Remote technical support
Fault diagnosis: Provide real-time guidance through phone, email, or video conferencing to help customers solve operational or technical problems.
Data analysis: Remote monitoring of equipment operating parameters (such as pressure, flow rate, energy consumption), analyzing the causes of abnormalities.
Operation training: Provide online training videos or documents to guide customers on the correct use and maintenance of equipment.

2. On site service
Installation and commissioning: Dispatch engineers to the customer's site to guide installation and commissioning, ensuring that the equipment meets the process requirements.
Regular maintenance: Provide preventive maintenance (such as valve seal inspection, pipeline wear assessment, control system calibration).
Emergency maintenance: Quickly respond to sudden malfunctions (such as pipe blockages, leaks, control system failures) and reduce downtime.

3. Spare parts supply
Provide a stock list to facilitate future spare parts procurement (such as wear-resistant elbows, filter cartridges, seals).
Customized spare parts: Provide durable customized components based on the characteristics of the materials being transported by the customer, such as abrasion and humidity.

4. Upgrades and renovations
Performance optimization: Upgrade the control system (such as PLC program) and carry out energy-saving renovations (such as replacing high-efficiency fans) according to customer needs.
Expansion service: System renovation that expands transmission capacity or extends transmission distance.

5. Training services
On site training: Provide practical training on equipment principles, safety regulations, and fault handling for operators and maintenance teams.

High-Quality Pneumatic Conveying Pump Air Conveying Pump For Bulk Material Handling
