Specifications
Brand Name :
Hengcheng
Model Number :
PCD24/H PCD26/H PCD28/H PCD30/H
Certification :
ISO Patent Certificate High-Tech Product Certificate
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets\month
Delivery Time :
60 days
Packaging Details :
Standard shipping packaging
Name :
Pneumatic Conveying Bin Pump
Type :
PCD18/N,PCD20/N,PCD22/N,PCD24/L,PCD26/L,PCD28/L,PCD30/L
Performance :
Wear resistant variable frequency explosion-proof
Conveying items :
Powder material
After-sales Service Provided :
Engineers available to service machinery overseas
Application scope :
Fly ash conveying
Scope of use :
Pneumatic conveying
Customizable :
Customizable
Purpose :
Pneumatic conveying of powder and particle materials
Description

Pneumatic Conveying Bin Pump Long-Distance Large Capacity Dense Phase Dilute Phase Bin Pump For Fly Ash
Pneumatic Conveying Bin Pump of description:

The bin pump type pneumatic conveying pump uses positive pressure pneumatic conveying to transport powdered materials, which is widely used in the transportation of materials such as fly ash, cement, cement raw materials, mineral powder, etc. in power plants. The transportation pipeline can be flexibly arranged according to the terrain conditions to achieve centralized, dispersed, high height, and long-distance transportation. The transportation process is not affected by natural conditions, ensuring that materials are not affected by moisture and environmentally friendly without pollution. This equipment adopts a PLC control system, which can be automatically or manually controlled. After long-term practical operation, it has been proven that the equipment has stable performance, reliable quality, and no dust pollution during transportation, making it an ideal pneumatic conveying equipment.

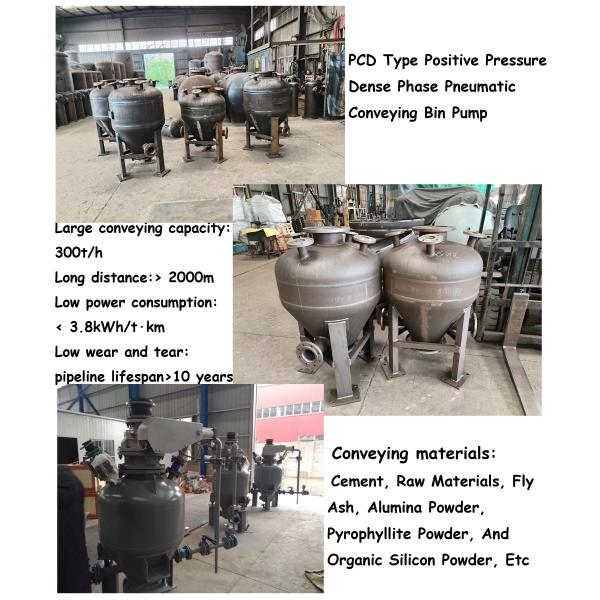

Main characteristics of pneumatic conveying bin pump:
① Large conveying capacity: 300t/h；
② Long distance:> 2000m；
③ Low power consumption:< 3.8kWh/t·km；
④ Low wear and tear: pipeline lifespan>10 years;
⑤ Low speed: Initial speed of 6-10m/s;
⑥ High mixing ratio:> 30kg/kg；
⑦ Flexible process layout, no dust, high operating rate, lower investment than mechanical conveying, and lower maintenance costs

Pneumatic Conveying Bin Pump Long Distance Large Capacity Dense Phase Dilute Phase Bin Pump For Fly Ash
Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m³) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density(t/m³) Model PCD18/N PCD20/N PCD20/N Reference Conveying Distance
Specification 5.0~6.7m³ 7.0~10.0m³ 10.0~15.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 12~20 16~32 25~50 500 30
Fly Ash 0.75 18~32 25~48 35~70 50
Limestone Powder/Mineral Powder 0.8 20~35 26~51 38~75 500 30
Cement/Raw Meal 1.0 24~42 32~65 48~95 500 30
Silicon Powder 1.2 28~50 40~75 55~115 500 30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material Bulk Density(t/m³) Model PCD08/M PCD10/M PCD12/M PCD14/M Reference Conveying Distance
Specification 0.2~0.5m³ 0.6~1.6m³ 1.5~2.5m³ 2.5~5.0m³ Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 0.5~1.8 1.5~5.5 5.0~9.0 8.0~18.0 100 20
Fly Ash 0.75 0.9~2.8 2.5~8.5 7.0~14.0 12.0~27.0 100 20
Limestone Powder/Mineral Powder 0.8 1.0~3.0 3.0~9.0 8.0~15.0 12.0~28.0 100 20
Cement/Raw Meal 1.0 1.2~3.5 3.5~11.5 10.0~18.0 16.0~36.0 100 20
Silicon Powder 1.2 1.5~4.0 4.5~13.5 12.0~20.0 19.0~43.0 100 20

Application Area

PCD type pneumatic conveying equipment and systems have been widely used in industries such as building materials, chemical, mining, power, metallurgy, etc. The conveyed materials include cement, raw materials, fly ash, hydrated lime, dry discharge calcium carbide slag, slag powder, steel slag powder, coal powder, alumina powder, bauxite powder, phosphorus powder, pyrophyllite powder, and organic silicon powder.
