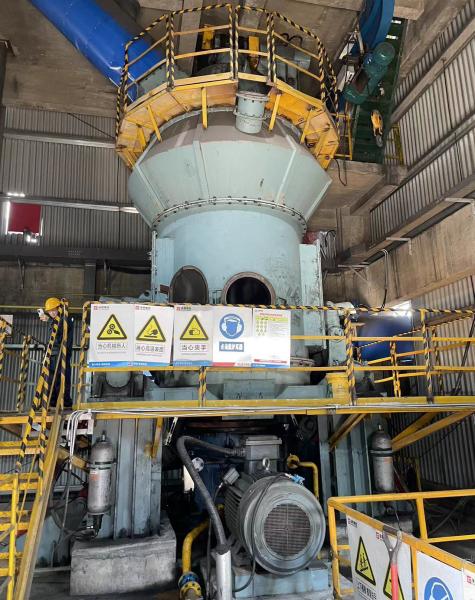

Hydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low Wear
Hydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low Wear
Specifications
Brand Name :
Hengcheng
Model Number :
HVM2500 HVM2800 HVM3400 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Certification :
ISO Patent Certificate High-Tech Product Certificate
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets/month
Delivery Time :
120 days
Packaging Details :
Standard shipping packaging
Name :
gypsum vertical roller mill
Applicable materials :
Limestone, calcite, coal powder, slag, etc
Negative pressure system :
＜ 500 Pa (to prevent dust overflow)
Noise control :
≤ 80 dB (customized soundproof cover)
After-sales Service Provided :
Engineers available to service machinery overseas, Online support
Degree Of Comminution :
fine grinding
Application Area :
Desulfurization, metallurgy, chemical industry, power, new energy
Installation :
Engineer Guide
Drive mode :
electrical machinery
Principle :
Vertical mill
Description
Hydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low Wear
The vertical gypsum mill is a key equipment used in gypsum grinding and processing. Its custom attributes mainly focus on production requirements, material characteristics, process parameters, and equipment adaptability, and can be flexibly adjusted according to specific application scenarios. The following are the common classifications of custom attributes and their specific contents:
I. Customization of basic parameters
- Specification and model
- Mill diameter: Designed according to production capacity requirements (such as φ2.4m, φ3.2m, etc.), which directly affects the grinding area and processing capacity.
- Grinding disc rotation speed: Can be adjusted according to gypsum hardness (such as natural gypsum, desulfurized gypsum), usually customized within the range of 20-60r/min.
- Installed power: The main motor power is matched according to production capacity and material hardness (such as 160kW-1000kW) to ensure sufficient power and energy saving.
- Production capacity design
- Hourly output: Customized according to production line requirements (such as 5-100t/h), which needs to be comprehensively calculated in combination with factors such as gypsum moisture content and finished product fineness.

【Working Principle】

The motor drives the grinding disc to rotate through the reducer, the material falls into the center of the grinding disc from the feed inlet, and the hot air enters the mill from the air inlet. Under the action of centrifugal force, the material moves to the edge of the grinding disc, and is crushed by the grinding roller when passing through the annular groove on the grinding disc. The crushed material is carried by the high-speed airflow at the air ring at the edge of the grinding disc, and the large particles fall directly on the grinding disc. Re-grinding, when the material in the airflow passes through the dynamic and static separator, under the action of the rotating rotor, the coarse powder falls on the grinding disc for re-grinding, and the qualified fine powder is ground together with the airflow and collected in the powder collecting device, which is product. Moisture-containing materials are dried during contact with hot gas to achieve the required product moisture.
Hydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low WearHydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low Wear


Specifications And Technical Parameters Of HVM Gypsum Vertical Mill

Model HVM2500 HVM2800 HVM3400 HVM3700 HVM4200 HVM4500 HVM4800 HVM5100 HVM5600
Grinding Table Median Diameter(mm) 2500 2800 3400 3700 4200 4500 4800 5100 5600
Capacity(t/h) 85-100 130-160 190-240 240-300 320-400 400-500 440-550 550-670 600-730
Raw Material Moisture ＜10%
Raw Meal Fineness R0.08＜12% R0.08＜14%
Raw Meal Moistrue ≤1%
Main Motor Power(kW) 800/900 1120/1250 1800/2000 2500/2800 3150/3350 3800/4200 4200/4500 5000/5400 5600/6000
Illustrate

Re:Raw materials bond index≤13kWh/t

Hydraulic Gypsum Vertical Roller Mill | Best Gypsum Vertical Roller Mill Manufacturer High Grinding Efficiency & Low Wear

Typical Application Scenarios

Production of Building Gypsum Powder Grind and calcine natural gypsum

or desulfurized gypsum into β-hemihydrate gypsum (building gypsum powder), which is used in gypsum boards, putty, etc.

Resource Utilization of Desulfurized Gypsum Desulfurized gypsum from power plants has high moisture content. The vertical mill

can simultaneously dry and grind it to produce raw materials for building materials.

Phosphogypsum Treatment Grind and modify phosphogypsum, a by-product of phosphochemical industry, for use as cement retarders

or subgrade materials.

FAQ
Q: What’s the difference between your mill and Raymond mill?
*A: 30% higher output & 50% less wear parts with roller-grinding technology*
Q: Can it connect with existing calcination system?
A: Yes! Flue gas duct & material feed chutes can be customized
Q: Do you provide wear parts replacement?
*A: Yes!
