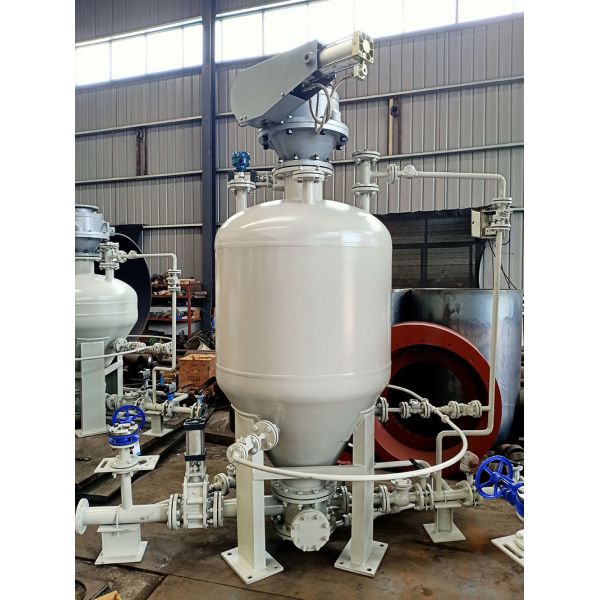

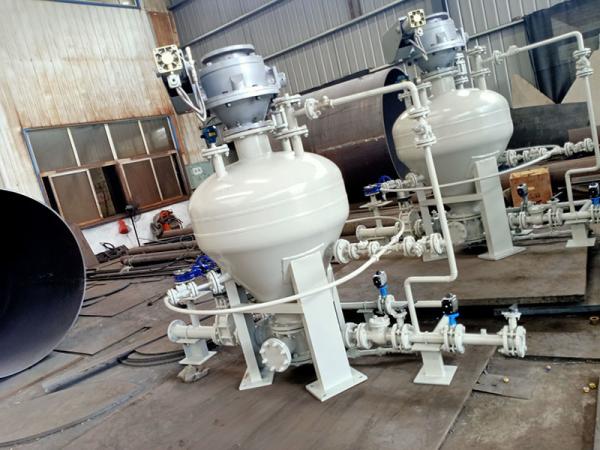

PLC Control Dense Phase Conveying Equipment System Powder Pneumatic Conveying Pump

Description

The silo pneumatic conveying pump adopts the positive pressure pneumatic conveying method to convey the powder materials, which is widely used in the conveying of fly ash, cement, cement raw meal, mineral powder and other materials in power plants. The transportation pipeline can be flexibly arranged according to the terrain conditions to realize centralized, decentralized, high-altitude and long-distance transportation. The transportation process is not affected by natural conditions, and can ensure that materials are not affected by moisture and environmental protection. The equipment adopts PLC control system, which can be controlled automatically or manually. After long-term practice, it has been proved that the equipment has stable performance, reliable quality, and no dust pollution during transmission. It is an ideal pneumatic conveying equipment.

According to the specifications and performance of powder materials, conveying distance, conveying capacity and geographical conditions provided by customers, we have formulated the best scheme for pneumatic conveying, including the calculation of air volume, the proportion of pipes, the dust collection treatment in the receiving bin and the after-sales plan.

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Principle
There are two ways to discharge the bin pump, of which the bottom discharge is the most common way. The materials in the tank can be fluidized by means of gas filling in the conical aerator, nozzle jet or other methods; A fluidization aerating plate (layer) is arranged at the bottom to discharge materials at the upper part of the tank. The distribution of the transported gas on different input planes in the tank depends on the nature of the transported material.

Main features of the product
① Large conveying capacity: ＞ 300t/h;
② Long distance: ＞ 2000m;
③ Low power consumption: ＜ 3.8kWh/t · km;
④ Small wear: pipe life>10 years;
⑤ Low speed: initial speed 6~10m/s;
⑥ High mixing ratio: ＞ 30kg/kg;
⑦ Flexible process layout, no dust, high operation rate, lower investment than mechanical transmission, and less maintenance costs

Application Area
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical, mining, electric power, metallurgy and other industries. Conveying materials include cement, raw meal, fly ash, slaked lime, dry discharged carbide slag, slag powder, steel slag powder, pulverized coal, aluminum oxide powder, bauxite powder, phosphate powder, pyrophyllite powder and organic silicon powder.
