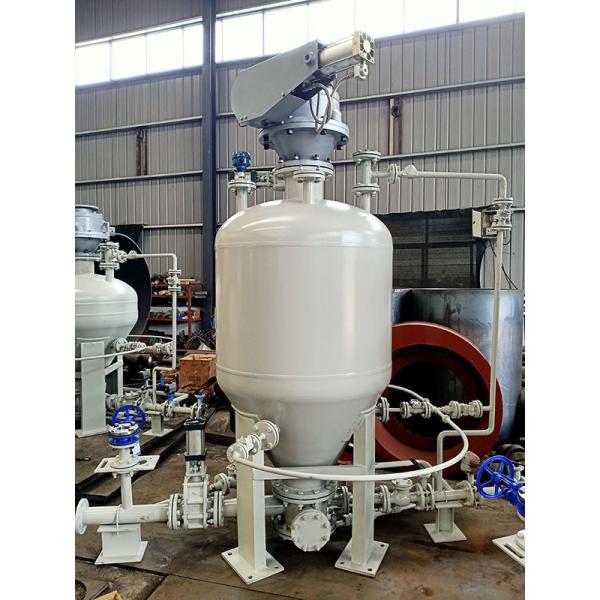

Positive Pressure Silo Pneumatic Conveying Pump Low Power Consumption
Positive Pressure Silo Pneumatic Conveying Pump Low Power Consumption
Specifications
Brand Name :
Hengcheng
Model Number :
PCD18/N PCD20/N PCD22/N PCD08/M PCD10/M PCD12/M PCD14/M
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 sets\month
Delivery Time :
60 days
Packaging Details :
Standard shipping packaging
Name :
Low Power Consumption Positive Pressure Silo Pneumatic Conveying Pump
Type :
Pneumatic Conveying
Material Feature :
Heat Resistant
Core Components :
PLC, Pressure vessel
Work Principle :
PLC automatic control
Conveying Material :
Coal Powder, Fly Ash, Limestone Powder/Mineral Powder, Cement/Raw Meal, Silica Fume
Material :
Carbon steel
Application :
Manufacturing Plant, Energy & Mining
After Warranty Service :
Engineers available to service machinery overseas, Free spare parts
Description

Low Power Consumption Positive Pressure Silo Pneumatic Conveying Pump/ Bin Pump

Description

4 Key Reasons to choose pneumatic conveying system:

1. Pneumatic conveying system are totally enclosed and if required can operate entirely without moving parts coming into contact

2. Pneumatic conveying system are relatively economical to install and operate with the conveyed material. Being enclosed there are hygiene & cleanlinesss benefits.

3. Pneumatic conveying system offer greatly reduced capital cost for long distance conveying.

4. A pneumatic conveying system can convey a product to any place with a pipeline. its flexible.

Main features of the product

① Large conveying capacity: ＞ 300t/h;

② Long distance: ＞ 2000m;

③ Low power consumption: ＜ 3.8kWh/t · km;

④ Small wear: pipe life>10 years;

⑤ Low speed: initial speed 6~10m/s;

⑥ High mixing ratio: ＞ 30kg/kg;

⑦ Flexible process layout, no dust, high operation rate, lower investment than mechanical transmission, and less maintenance costs

Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/H PCD26/H PCD28/H PCD30/H Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 50~80 60~90 65~110 80~130 200 20
Fly Ash 0.75 75~125 85~130 95~160 125~190 200 20
Limestone Powder/Mineral Powder 0.8 80~130 90~140 100~170 130~200 200 20
Cement/Raw Meal 1 100~150 115~175 130~215 165~260 200 20


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density (t/m3) Model PCD24/L PCD26/L PCD28/L PCD30/L Conveying Distance
Specification 16~20m3 18~22m3 20~27m3 26~32m3 Level (m) Level (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 20~40 25~45 30~55 45~65 1000 25
Fly Ash 0.75 35~60 45~65 45~80 65~95 1000 25
Limestone Powder/Mineral Powder 0.8 40~65 45~70 50~85 70~100 1000 25
Cement/Raw Meal 1 50~80 55~90 65~110 90~120 1000 25

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying Material Bulk Density(t/m3) Model PCD18/N PCD20/N PCD20/N Reference Conveying Distance
Specification 5.0~6.7m3 7.0~10.0m3 10.0~15.0m3 Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 12~20 16~32 25~50 500 30
Fly Ash 0.75 18~32 25~48 35~70 50
Limestone Powder/Mineral Powder 0.8 20~35 26~51 38~75 500 30
Cement/Raw Meal 1.0 24~42 32~65 48~95 500 30
Silicon Powder 1.2 28~50 40~75 55~115 500 30

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

Material Bulk Density(t/m3) Model PCD08/M PCD10/M PCD12/M PCD14/M Reference Conveying Distance
Specification 0.2~0.5m3 0.6~1.6m3 1.5~2.5m3 2.5~5.0m3 Level (m) Vertical (m)
Pulverized Coal 0.5 Delivery Volume (t/h) 0.5~1.8 1.5~5.5 5.0~9.0 8.0~18.0 100 20
Fly Ash 0.75 0.9~2.8 2.5~8.5 7.0~14.0 12.0~27.0 100 20
Limestone Powder/Mineral Powder 0.8 1.0~3.0 3.0~9.0 8.0~15.0 12.0~28.0 100 20
Cement/Raw Meal 1.0 1.2~3.5 3.5~11.5 10.0~18.0 16.0~36.0 100 20
Silicon Powder 1.2 1.5~4.0 4.5~13.5 12.0~20.0 19.0~43.0 100 20

Positive Pressure Silo Pneumatic Conveying Pump Low Power Consumption

Principle
There are two ways to discharge the bin pump, of which the bottom discharge is the most common way. The materials in the tank can be fluidized by means of gas filling in the conical aerator, nozzle jet or other methods; A fluidization aerating plate (layer) is arranged at the bottom to discharge materials at the upper part of the tank. The distribution of the transported gas on different input planes in the tank depends on the nature of the transported material.

Application Area
PCD pneumatic conveying equipment and systems have been widely used in building materials, chemical, mining, electric power, metallurgy and other industries. Conveying materials include cement, raw meal, fly ash, slaked lime, dry discharged carbide slag, slag powder, steel slag powder, pulverized coal, aluminum oxide powder, bauxite powder, phosphate powder, pyrophyllite powder and organic silicon powder.
