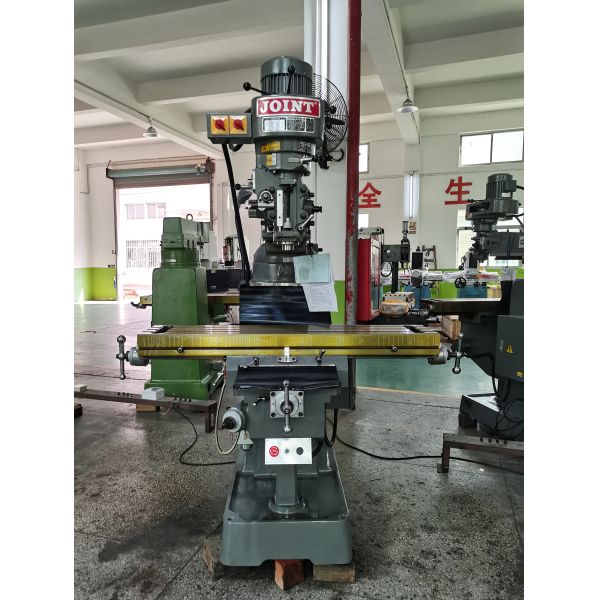

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head
R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head
Specifications
Brand Name :
JOINT
Model Number :
4VA
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
L/C, T/T
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
Wooden pallet/ wooden case
Working table size :
1270*254*90mm
Three axes travel :
900/405/350mm
Max distance from the spindle nose to table :
450mm
Spindle rotation speed :
80-5440rpm(60HZ)
Package way :
Plywood case
Name :
Benchtop Milling Machine
Description

Product main advantages:

1. Spindle tolerance: 2μ.
2. Twice precision scraping can ensure processing quality.
3. Taiwan original milling head, Japan NSK P4 precision spindle bearing.

4. We are a manufacturer of turret milling machine since 1995. We started at the very first begining of it.

And we were once honored by Ten Top Brand.

It is suitable for precision electronic machinery, presicion electronic devices, mold parts and other precision parts of the hole, groove, frame.

Specification:

Model 4VA
Table size mm 1270*254*90
Travel X axis mm 900
Y axis mm 405
Z axis mm 350
Travel of spindle quill mm 127
Maximum distance from spindle nose to table mm 450
Spindle Rotation speed
(Step speed milling head)		 50HZ rpm 60-4530 (16 grade)
60HZ rpm 80-5440 (16 grade)
Rotation speed
(Variable speed milling head)		 50HZ rpm 50-3500
60HZ rpm 60-4200
Rotation speed
(Inverter speed milling head)		 50HZ rpm 0-4200
60HZ rpm 0-4200
Taper R8 (NT30)
Rated power HP 3HP
Tilt angle Forward and Backward ±45°
Left and Right ±90°
Dimension mm 1500*1700*2200
Net weight kg 1400

VA series standard accessorie:

1. Taiwan original step milling head

2. Working light

3. Guideway cover

4. M12 clamping kit

5. R8 collet (7 pcs)

6. Draw bar

7. Manual oil pump

8. Accompanied toolbox

Optional accessories:

1. 6'' or 8'' vise

2. Electric power feed (2 axis and 3 axis)

3. Mechnical power feed (2 axis and 3 axis)

4. Water pump+water tray

5. Dro(2 axis or 3 axis)

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head

Overview:

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head

Package:

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head

R8 Spindle Turret Milling Machine 5440rpm 4VA With Orignal Head
