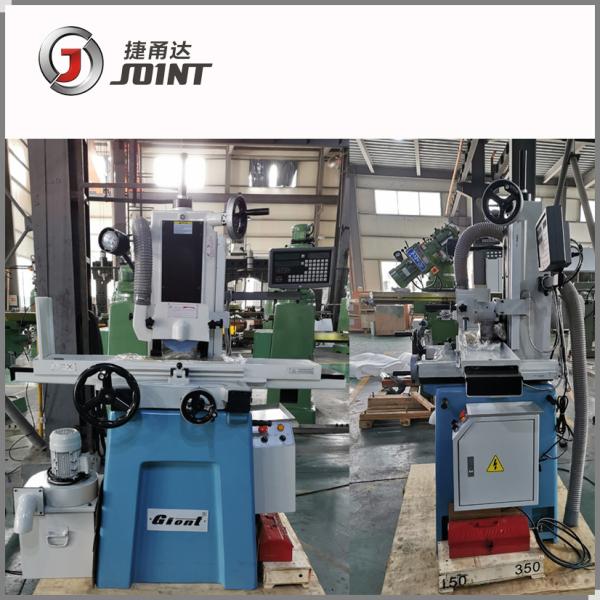

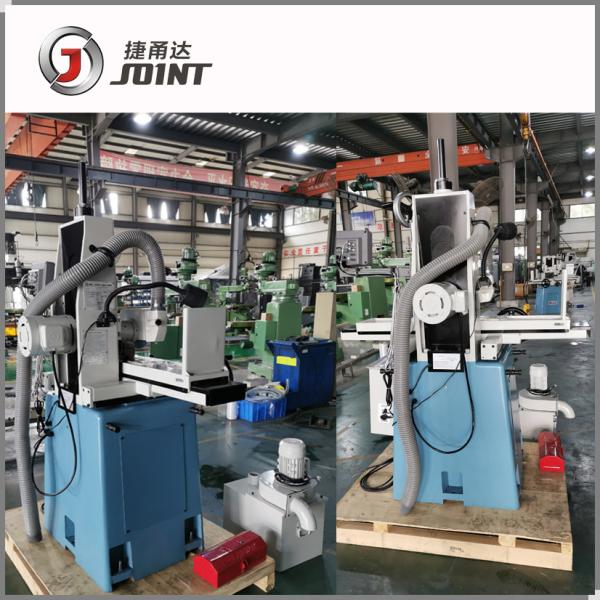

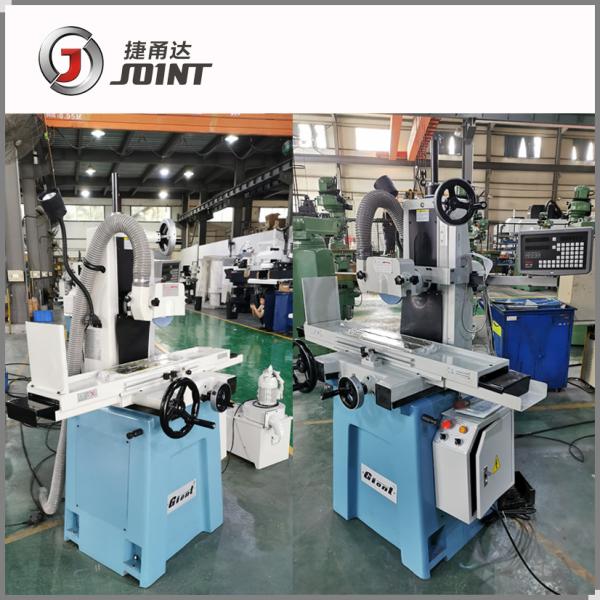

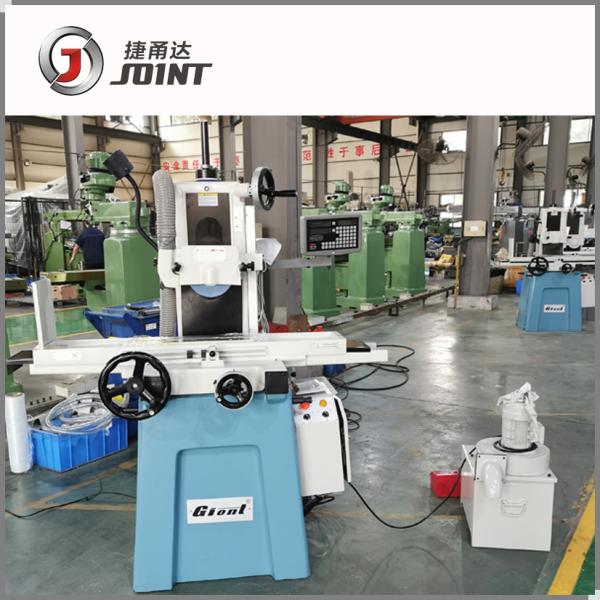

2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
2800rpm Manual Surface Grinding Machine 460*150mm Table 618M Slide Way
Specifications
Brand Name :
GIONT
Model Number :
618M
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 sets per months
Delivery Time :
15-20 working days
Packaging Details :
Wooden package
Condition :
New
Weight :
850kg
Cnc or not :
Normal
Spindle motor :
2*2
After-sales service provided :
No overseas service provided
Warranty :
1 Year
Color :
Customizable
Table size :
460*150mm
Description

Suitable for high precision manufacturing industry

1. Durable, high precision and high quality.

2. Imported high accuracy grinding head.

3. High quality resin, ageing treatment.

4. Taiwan high quality hydraulic system and high precision grinding head.

Specification

Model 618M
Table size mm 460*150
X axis travel mm 470
Y axis travel mm 160
Table side way Slide way
Max distance from spindle center to working table mm 410
Crossward feed of hand wheel 1 Rev 5
1 Div 0.02
Vertical feed of hand wheel 1 Rev 1
1 Div 0.005
Rotation speed rpm 2800
Grinding wheel size mm Ø180*(3-13)*Ø31.75
Spindle motor 2*2
Coolant pump motor 0.12*2
Dust-clean motor 0.75*2
Dimension (L*W*H) mm 1490*1100*2060
Weight kg 850

Standard accessories

1. Magnet chuck

2. Dust clean/ Coolant system

3. Grinding wheel

4. Oil pump

5. Working light

6. Wheel balance arbor

7. Wheel flange and extractor

8. Wheel dressing diamind tip and holder

9. Tool and tool box

10. Operation manual
