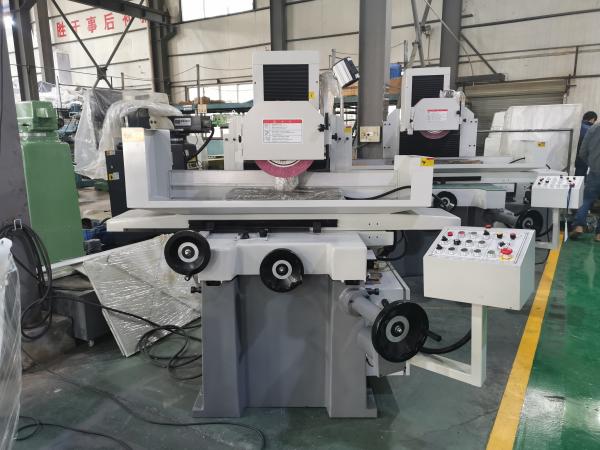

Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way
Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way
Specifications
Brand Name :
JOINT
Model Number :
250AH
Certification :
ISO 9001:2015
Place of Origin :
China
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
T/T, L/C
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEOGIATION
Packaging Details :
Wooden pallet/ wooden case
X/Y axis trval :
540/270mm
Rotation speed :
2800rpm (50HZ)/3360RPM(60HZ)
Table Side Way :
Ball Slide Way
Spindle Motor :
1.5*2
Hydraulic Motor :
1*4
Net Weight :
1250kgs
Description

Product Characteristics:

1. Machine reasonable structure, good rigidity, good looks, easy to operate.
2. Table movement in longitudinal is the hydraulic transmission.
3. Spindle motor no vibration and low noise.
4. AH: Longgitudinal and cross ward automatic.

Specification sheet:

Model 250M
Table size mm 460*200
X axis travel mm 540
Y axis travel mm 240
Table side way Slide way
Max distance from spindle center to working table mm 460
Crossward feed of hand wheel 1 Rev 4
1 Div 0.02
Vertical feed of hand wheel 1 Rev 1/2*0.2(Microfeed)
1 Div 0.005/0.01*0.001(Microfeed)
Rotation speed rpm 2800
Grinding wheel size Φ250×6-20×Φ31.75
Spindle motor HP 2*2
Hydraulic motor 1*4
Crossward driven motor 0.05*4*
Vertical driven motor 0.5*4*
Coolant pump motor 0.12*2
Dust-clean motor 0.75*2
Dimension (L*W*H) mm 1800*1400*1775
Weight kg 1250

Standard Accessories:

1. Magnet chuck
2. Dust clean / Coolant system
3. Grinding wheel
4. Oil pump
5. Working light
6. Wheel balance arbor
7. Wheel flange and extractor
8. Wheel dressing diamond tip and holder
9. Tool and toolbox
10. Operation manual

Optional Accessories:

1. Two axis DRO
2. Coolant system + Dust suction
3. Balancing bracket
4. Inverter
5. Demagnizer
6. Vice
7. Punch dressor
8. Universal dressor

Overview:

Cross Ward Automatic Surface Grinding Machine 2800rpm Ball Slide Way
