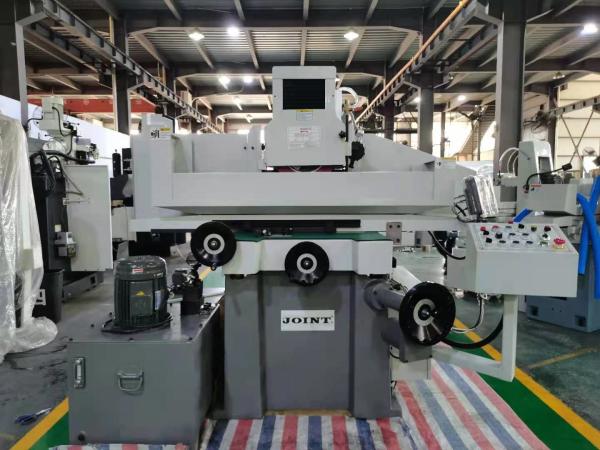

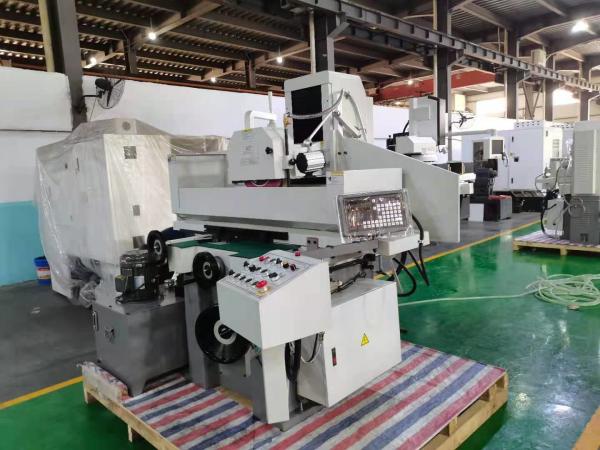

2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator
2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator
2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator
2800rpm 460*200mm Table Metal Surface Grinder Z Axis With Elevator
Specifications
Brand Name :
JOINT
Model Number :
250AHR
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Table size :
460*200mm
Auto vertical feed :
0.002-0.02
Coolant pump motor :
0.12*2
Z axis :
with elevating motor
Dimension :
1800*1400*1775mm
Grinding wheel size :
F205*(6-20)*F31.75
Description

460*200 table size F205*(6-20)*F31.75 Grinding wheel size longitudial and cross ward automatically, z axis with elevator

Product Details:

1. Durable, high precision and high quality. Imported high accuracy grinding head.

2. Hydraulic system ensure high precision of machine and high stability of operational.

3. High precision and corrosion resisting.

4. Our custom-made machines with competitive price and the excellent service have gained us a great reputation from domestic and foreign customers.

5. Suitable to grinding surface and complex form surface by form dressed whell.

2.Specification:

Model 250AHR
Table size 460*200mm
Travel ( Longitude ) 540mm
Travel ( Crossward ) 240mm
Table side way Slide way
Max.distance from spindle center to working table 460mm
Auto crossward feed -
Crossward feed of hand wheel ( 1Rev ) 4
Crossward feed of hand wheel ( 1Div ) 0.02
Auto vertical feed 0.002-0.02
Vertical rapid moving feed -
Vertical feed of hand wheel ( 1Rev ) 1/2*0.2(Microfeed)
Vertical feed of hand wheel ( 1Div ) 0.005/0.01*0.001(Microfeed)
Rotation speed 2800rpm
Grinding wheel size Ø205*(6-20)*Ø31.75
Spindle motor 2*2
Hydraulic motor 1*4
Crossward driven motor 0.05*4
Vertical driven motor 0.5*4
Coolant pump motor 0.12*2
Dust-clean motor 0.5*2
Dimension ( L*W*H ) 1800*1400*1775mm
Net weight 1250kg

Our Services:

1. Technical support online service provided, question will be replied within 24 hours.

2. During warranty period, if the grinding machine is damaged by non-human reasons, we will replace the parts free of charge.

3. After the warranty, we charge only cost price for maintaining the grinding machines.

4. We have a professional after-sales service team who are ready to serve.
