600 * 400 * 420mm BT40 7.5kilowatt CNC Moulding Machine With 24 Tools ATC
600 * 400 * 420mm BT40 7.5kilowatt CNC Moulding Machine With 24 Tools ATC
Specifications
Brand Name :
JOINT
Model Number :
V65
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC/DA/DP
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Name :
Vertical Machining Center
Table size :
700*420mm
X/Y/Z Axis Travel :
600*400*420mm
Distance between spindle and table :
170-590mm
Spindle taper :
BT40-120
T-Slot :
3-18-125
ATC Type :
24 tool arm type tool magazine
Application :
Processing parts
Description

BT40 7.5KW Vertical Machining Center Processing Parts V65 with 24 tools ATC​

Product features:

1. The feed axis machining center for X, Y, Z coordinate control, spindle servo motor powered, magazine capacity of 24 tools.

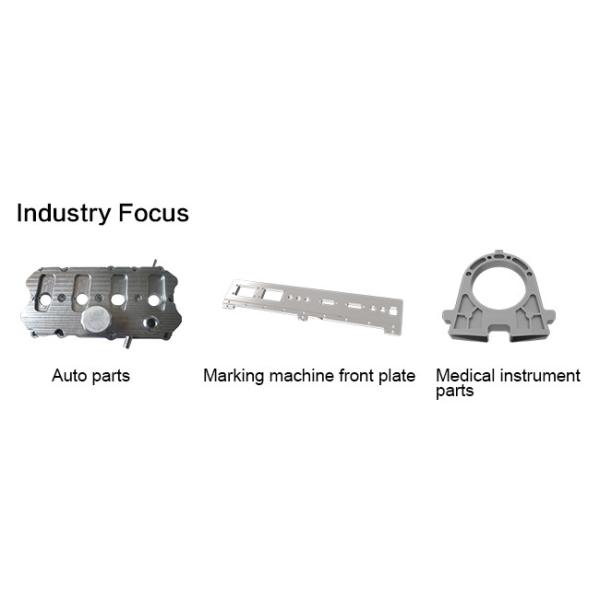

2. V65 Can achieve a variety of disc-type, plate type, shell, cam, mold and other complex parts in a single setup, complete the drilling, milling and processing a variety of processes, boring, expanding, reaming, tapping, etc.

3. V65 is Suitable for varieties of small batch production of complex, high-precision machining of parts to better show its superiority.

Product advantage:

1. Finite Element Analysis

The structural parts are analyzed and designed by the advanced Finite Element Analysis. It provides a detailed analysis for structural stress / strain conditions, and ensures excellent machine rigidity and lifetime stability.

2. Pretensioned ballscrews on X, Y, Z axes ensure accuracy and eliminate positioning error.


3. The endface of spindle stock, screw support faces and block contact faces are fully hand scraped to increase machining accuracy and feeding smoothness.

4. The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision.
.
5. Over sized column and bed, assuring extra high rigidity of machine frame.

Specification Of Vertical machine center V65

Model Unit V65
Travel X axis mm 600
Y axis mm 400
Z axis mm 420
Distance between spindle and table mm 170-590
Working table Table size mm 700*420
Max. Load of table Kg 300
T slot Pcs－mm-mm 3-18-125
Positioning accuracy X/Y/Z axis mm 0.006/0.006/0.006
Repeated positioning accuracy X/Y/Z axis mm 0.005/0.005/0.005
Spindle Spindle rotation speed Rpm 10000
Spindle taper BT40
Diameter mm Φ140
Rivet model BT40 45°
Rapid feed X/Y/Z axis m/min 48/48/48
Cutting feed X/Y/Z axis m/min 15
Tool magazine Arm type Size Tools 24
Tool changing time (T-T) sec 2.5s
Max. diameter/ /length/weight of tool mm 80/250/8
Max tool diameter (no tool adjacent) mm 150
Total capacity of electric KVA 15
Weight of machine

Kg

 3500
Dimension mm 2350*2100*2600

Standard Accessories

Fanuc Controller system

10000Rpm spindle

24tools arm type tool magazine

Spindle oil cooler

Heat exchanger

Full enclosed cover

Spindle encoder position system

Three axis inner encoder feedback system

Auto lubrication system

Pneumatic system

RS 232 Interface

Operation unit

RS232 Interface +working light

Tool and tool box

600 * 400 * 420mm BT40 7.5kilowatt CNC Moulding Machine With 24 Tools ATC
