4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
Specifications
Brand Name :
RATEE
Model Number :
6E
Certification :
ISO 9001:2015
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIATION
Payment Terms :
TT/LC
Supply Ability :
1000 SETS/YEAR
Delivery Time :
NEGOTIATION
Packaging Details :
WOODEN PALLTES / WOODEN CASE
Working Table size :
1370*308*85mm
X/Y/Z axis travel :
950/415/330mm
Max distance from spindle nose to table :
400mm
DRO :
Optional
Milling head :
NT40
Spindle motor :
5HP
Description

Product Characteristics:

1. High cost performance with Taiwan parts assembled in China with strict inner standard

2 This series of machine is suitable for household appliances, daily necessities mold processing.

3. Wide model range can meet different customers requirements.

Parameters Sheet:

Model6 6E
Table size mm 1370*305*85
Travel (Longitude X) mm 950
Travel (Crossward Y) mm 415
Travel (Vertical Z) mm 330
Travel of spindle quill mm 127
Max distance from spindle nose and table mm 400
Spindle Rotation speed Step speed milling head 50HZ 66-4530
60HZ 80-5440
Variable speed milling head 50HZ 40-3125
60HZ 503750
Inverter speed milling head 50HZ 0-4200
60HZ 0-4200
Spindle taper NT40
Spindle rated motor 5HP
Tilt angle (Forward and backward) ±45°
Tilt angle (Left and right) ±90°
Dimension mm 1600*1850*2400
Net weight kg 1900

Standard Accessories:

1. Working light

2. Way cover

3. NT40/5HP spindle step speed milling head

4. NT40 inch draw bar

5. Technical document

6. Accompanied toolbox

Optional accessories:

1. R8 (7 pcs) milling chuck

2. M12 clamping kits

3. 6' vise

4. Power feed

5. 2 axis/3 axis DRO

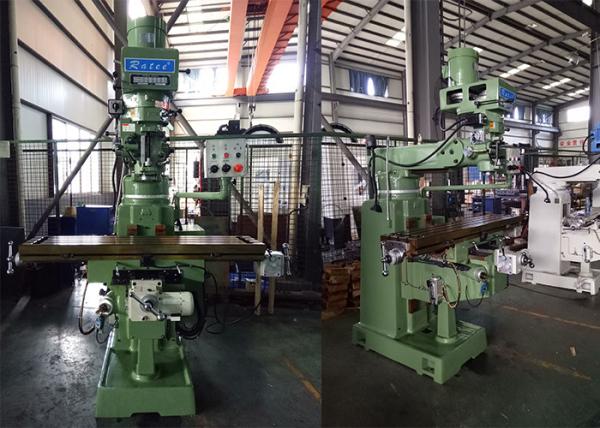

Overview:

4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
Package:
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
4530rpm Rotation Speed Manual Turret Milling Machine 5HP With 1370*305mm Table
