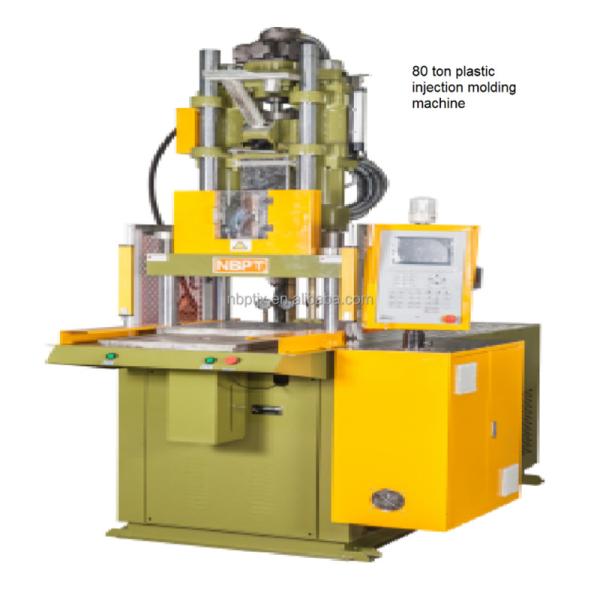

VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
Specifications
Brand Name :
NING BO PENG TAI
Model Number :
PT-450
Certification :
CE ISO9001
Place of Origin :
Zhejiang, China
Supply Ability :
300 Set/Sets per Month 80 ton plastic injection molding machine
MOQ :
1 Set
Packaging Details :
80 ton plastic injection molding machineWooden case packing, fumigation treatment
Condition :
New
Style :
VERTICAL
Clamping Force :
450KN
Type :
Tube Head Injection
After-sales Service Provided :
Engineers available to service machinery overseas
Plastic Type :
Thermoplastic
Power :
7.5KW
Injection Rate :
36cm3/sec-71cm3/sec
Automatic :
Yes
Opening Stroke :
200mm
Injection Weight :
54g-105g
Screw Diameter :
25-35mm
Screw Stroke :
120mm
Screw Speed Max :
0-205rpm
Injection pressure :
1742kg/cm2
Investment Size :
390*430mm
Machine dimension(L*W*H) :
2.35m*1.1m*2.2m
Platen Size :
580*430mm
Machine weight :
1.5T
Keyword :
80 ton plastic injection molding machine
Warranty :
1 Year
Description

80 ton plastic injection molding machine

VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001

Characteristic:

Injection can be divided into fast and slow injection , injection pressur of three stroke control ,

time control, can be adjusted, convenient and accuracy.

The lower mould is fixed , the upper die is closed , the sealing is good for the inserted articles ,

and the finished product is pushed out.

Low pressure die closing device protects die and prolongs die life.

Compute control , with Hao screen, simple operation, convenient and intuitive.

The heating plate can be added according to the requirement.

VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001VERTICAL 80 Ton Plastic Injection Molding Machine CE ISO9001
