Features

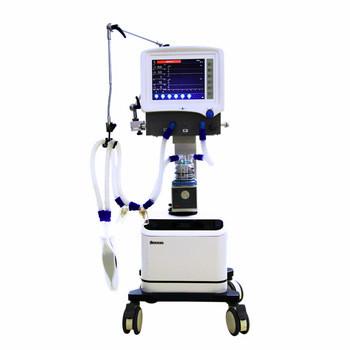

The 700B

SPECIFICATIONS

PRODUCT FEATURES

Common Features

• Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
• Pneumatically driven electrically controlled ventilator, can be used for emergency clinical resuscitation and respiratory therapy
• Display: Built-in 10.4 inch color TFT fully adjustable display, able-display Pressure-Time, Frequency-Time, Pressure-Volume, Frequency-Volume and any two waveforms simultaneously on screen
• Trigger Types: Pressure trigger, Flow trigger
• Sigh: Ability to insert 1-8 sigh breaths in every 100 breaths, ventilation should be no less than 1.5 the tidal volume
• Features built-in dual electronic flow sensors and dual respiratory modules
• Power Failure Support Functions: Automatically converts-standby mode during AC power outages
• Monitor Parameters: tidal volume, respiration rate, airway pressure, I:E ratio, inspiratory & expiratory status, inspiratory trigger and others
• Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
• 9 Level adjustable humidifier
• Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
• Alarms: Audible and/or visual alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, power failure and other alarms, also features a alarm history query function
• Advanced Model Exclusive Features
• Equipped with professional medical grade air compressor tailored for long clinical times and low noise requirements
• Air Compressor
• Air Compressor: 220V AC±10%, 50±1Hz, 700VA, also features good protective grounding against electrical activity
• Output Gas Pressure: 0.4MPa±20%
• Continuous output gas flow greater than or equal to 20L/min
• Instantaneous output gas flow great than equal to 60L/min
