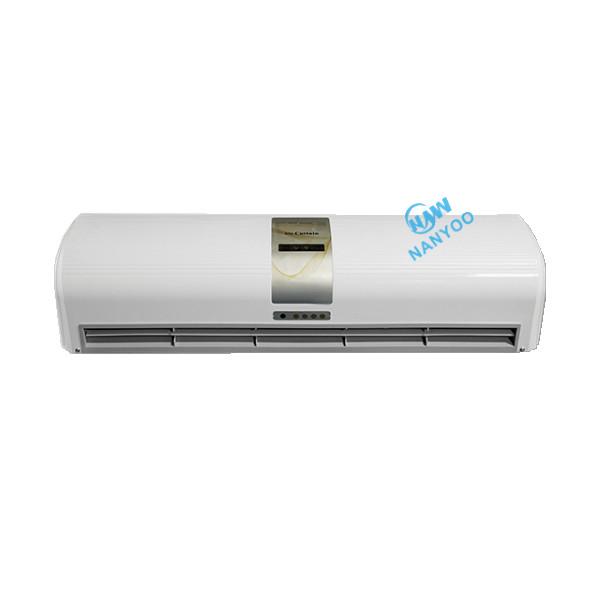

Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier
Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier
Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier
Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier
Specifications
Brand Name :
NANYOO / OME / ODM
Model Number :
FM-3512QS-L/Y(X)
Certification :
CE &CB &ROHS
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/P
Supply Ability :
15000 pcs per month
Delivery Time :
30-35 work days
Packaging Details :
Carton With Foam Protection
Product name :
Commercial Air Curtain / Door Air Barrier
Motor Type :
Centrifugal Flow Air Curtains
Mounting :
Door/ Wall/ Window Mount,door air curtain
Size :
90cm/120cm/150cm/180cm/200cm for options
Material :
Plastic
Operating voltage :
220V-240V/50HZ, 110V/50HZ
Noise :
Low Noise , contact for details
Color :
White, or Customization
Application :
Keep the clean air indoor
Warranty :
5 years for motor, 1 year for main parts
Description

Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier

30 years of experience in motor development and manufacturing

Delicate motor , Strong wind volume

Power is enough , Strong torsional force , High speed , Ensure strong power

Exquisite workmanship , Make sure that it is steady and noiseless for a long time service

Voltage/Frequency 220-240V/50Hz , or 110V/60Hz , 110V/50Hz , 220V/60Hz are all available

Model Input Power (W) Air
Velocity (m/s)		 Air Volume (m³/h)/CFM Noise (dB) Unit Size Mounting Height
H M L H M L H M L H M L (mm) (m)
FM-3509QS-L/Y(X) 200 180 150 15.5 14.3 12.5 1080/635 996/586 870/512 ≤44 ≤42 ≤41 900x230x220 3-3.5
FM-3512QS-L/Y(X) 250 225 185 15.5 14.3 12.5 1450/853 1337/786 1168/687 ≤45 ≤43 ≤42 1200x230x220 3-3.5
FM-3515QS-L/Y(X) 325 290 240 15.5 14.3 12.5 1800/1059 1600/941 1398/822 ≤48 ≤46 ≤44 1500x230x220 3-3.5
FM-4509QS-L/(Y)(X) 350 260 200 19 16 12.5 1320/776 1100/647 860/506 ≤46 ≤44 ≤42 900x230x220 4-4.5
FM-4512QS-L/(Y)(X) 440 320 225 19 16 12.5 1770/1041 1455/856 1150/676 ≤47 ≤45 ≤43 1200x230x220 4-4.5
FM-4515QS-L/(Y)(X) 575 435 330 19 16 12.5 2200/1294 1850/1088 1450/853 ≤50 ≤47 ≤45 1500x230x220 4-4.5
FM-5509QS-L/(Y)(X) 440 325 250 22 18.5 14.5 1520/894 1270/747 1000/588 ≤52 ≤50 ≤47 900x230x220 5-5.5
FM-5512QS-L/(Y)(X) 530 385 270 22 18.5 14.5 2027/1192 1670/1044 1330/782 ≤54 ≤52 ≤50 1200x230x220 5-5.5
FM-5515QS-L/(Y)(X) 710 535 405 22 18.5 14.5 2543/1496 2135/1256 1680/988 ≤55 ≤53 ≤51 1500x230x220 5-5.5

Plastic air curtain with exquisite appearance / low noise suitable for your home and office

Door air curtain plastic appearance with special and elegant design

With filter and easy cleaning

Four control models to meet different clients needs and loactions Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier

Door Air Barrier suitable for many kinds of places

Mounting height for 3 m - 5.5 m

Factories / Shopping Mall / Warehouse / Hotels / Super market and so on

Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier

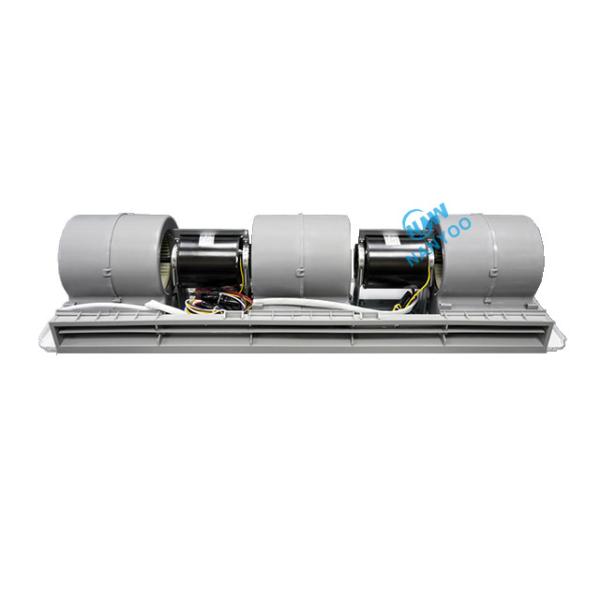

Motor : Mute Centrifugal - Flow wheel

Higher air pressure , Stronger air velocity , Lower noise

Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier

Product Specification

Good Quality Centrifugal Flow Copper Motor ABS Plastic Door Air Barrier

Working principle : SAVING 90% ENERGY

Door Air Curtain also known as Air door, Air Barrier ,

widely used in Factories / Shops / Restaurants / Pharmacies

Cold storage / Hotels / Hospitals / Airports / Stations and other environments and all air-conditioned place

Function Use the blower to generate a powerful airflow, effectively keep the indoor air clean,

prevent air circulating Indoor and Outdoor air , reduce energy consumption , prevent the intrusion of dust,

insects and harmful gases, and provide a comfortable working, shopping and leisure environment.

What is the main functions of Air Curtain?
1. Energy conservation
2. Isolate the smell
3. Dust-proof, insect prevention

How to choose suitable air curtain?

There are many factors that must be taken into account when selecting an air curtain,
some of which are listed below:
1. Door height and width
2. Air curtain size
3. Noise level
4. Door structure
5. Power consumption
6. External wind
7. Air curtain design and appearance
8. Building static pressure
9. Ambient temperature
