Specifications
Brand Name :
Sainpoly
Model Number :
01
Certification :
CE certificate
Place of Origin :
Qingzhou City, Shandong Province
MOQ :
1000sqm
Price :
$20-50/sqm
Payment Terms :
T/T
Supply Ability :
1000000 hectare
Delivery Time :
30 days
Packaging Details :
in bulk
Assembly Required :
Yes
Roof Type :
Sloped
Ventilation :
Automatic
Frame Material :
Aluminum
Shape :
Venlo
Uv Protection :
Yes
Door Type :
Sliding
Insulation :
Double Layer
Material :
Polycarbonate
Foundation Type :
Concrete
Size :
Customizable
Gutter System :
Included
Description

Greenhouse Commercial Greenhouse Multi-span Vegetable Seeding Agricultural Frame Venlo Polycarbonate Greenhouse



Greenhouse Commercial Greenhouse Multi-span Vegetable Seeding Agricultural Frame Venlo Polycarbonate Greenhouse



Introduction

‌

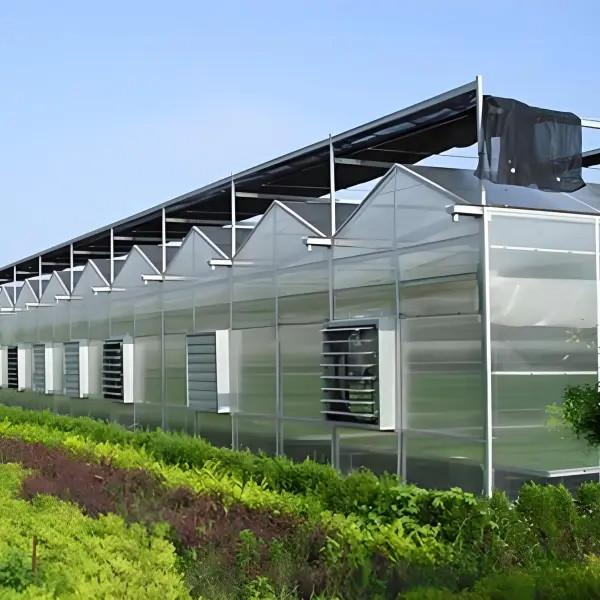

Polycarbonate greenhouses usually adopt a double-ridge Venlo structure type, with 8 mm high-quality double-layer polycarbonate panels on the top and sides, and a hot-dip galvanized rectangular tube as the frame.


The greenhouse configuration includes natural ventilation system, external shading system, wet curtain/fan cooling system, inverted micro-spray system, lighting system and power distribution system, etc.


Polycarbonate cover has the characteristics of high light transmittance, impact resistance, heat insulation, fire resistance, etc., and is suitable for use in extreme climate conditions.


The light transmittance of polycarbonate can reach more than 85%, and it has good heat insulation performance.



Specifications


Wind load of the greenhouse is 0.55 KN/㎡


Snow load is 0.3 KN/㎡


Hanging load is 0.1 KN/㎡


Maximum rainfall is 140mm/h




Greenhouse Commercial Greenhouse Multi-span Vegetable Seeding Agricultural Frame Venlo Polycarbonate Greenhouse



Main structure


The main structure of the greenhouse adopts a light steel structure to bear the load, and the main materials include hot-dip galvanized rectangular columns, truss beams, gutters, surrounding beams, herringbone beams, purlins and longitudinal pull rods. The span of the greenhouse is 9.6 meters/10.8 meters/12 meters.


The foundation adopts an independent point foundation under the column, and the indoor floor is hardened with concrete.


The polycarbonate greenhouse has a beautiful appearance, remarkable thermal insulation effect and a long service life, more and more people prefer use it for farm industry.
