VFD550I series electro-hydraulic servo drive 0.75-200kw
VFD550I series electro-hydraulic servo drive 0.75-200kw
Specifications
Brand Name :
VEIKONG
Model Number :
VFD550I
Certification :
CE IEC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
Carton and Wooden Box
Warranty :
24 months
Input voltage :
Three phase 380V model: 380-480V
Power :
0.75kw-200kw
Display :
LED digital keyboard as standard, double-line display LED and LCD as optional
Support :
MFD series AC permanent magnet synchronous servo motor
Speed range :
1:100 (V/f)；1:200 (SVC)；1:1000 (VC)
Description

VFD550I series electro-hydraulic servo drive 0.75-200kw



1. FEATURES

Tailor-made for hydraulic control applications

Excellent energy saving effect: 20%-60% energy saving rate

Independent duct design

Excellent algorithm, fast, accurate and stable pressure control

All-wheel drive, supports multiple motors

Supports multiple communication interfaces

LED digital keyboard as standard, dual-display keyboard and LCD with colorful screen as optional

Supports multi-pump applications

Supports multiple mainstream encoders

Overload performance under extreme loads

VFD550I series electro-hydraulic servo drive 0.75-200kw

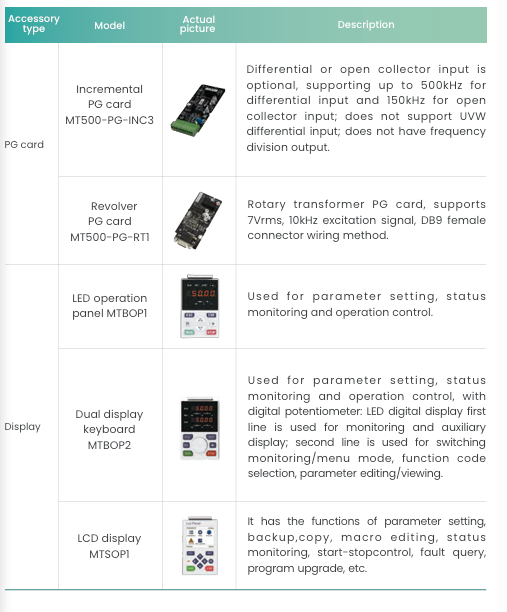

2.Rich optional accessories

VFD550I series electro-hydraulic servo drive 0.75-200kw

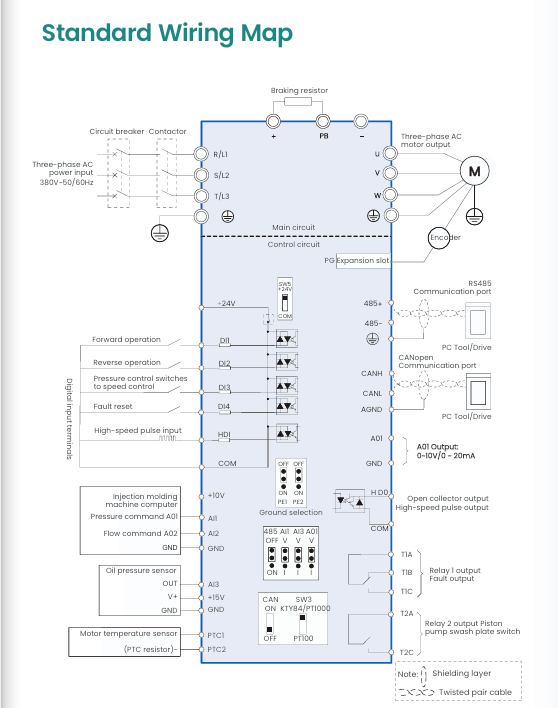

3.Standard wiring Map

VFD550I series electro-hydraulic servo drive 0.75-200kw


4.Application:

supports electro-hydraulic servo systems, delivering millisecond-level pressure response, high-precision flow control


5.Why chose VEIKONG?


1. Infineon brand IGBT/Fuji IGBT, enduree temperature 175°C
2. Two-lines LED keypad/LCD kaypad
3. Fan: 70 000 hours using life
4. Capacitor: 50 000 hours using life
5. Input phase lacking protection
6. Output short circuit protection
7. Overvoltage protection
9. 10 000-15 000pcs per month production ability
10. 500pcs stock below 90KW
11. CE ISO certification, TUV SGS authority
12. Strong RD department, can update software
