VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500
Certification :
CE IEC ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
Western Union,T/T,L/C,D/A,D/P,PayPal
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
Carton and Wooden Box
Product Name :
VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities
Voltage :
380V
Output :
3 Phase
Application :
Textile,packaging,extruder,fans,pumps,CNC,hoist And Crane,etc
Control Mode :
VF,SVC,VC,torque Control
Starting Torque :
0.25HZ/150% SVC ,0HZ/180%FVC
Highlight :
Veikong VFD 500, 45kw Variable Frequency Inverters, Veikong 3 Phase Ac Drive
Description

VEIKONG VFD500 Inverter for Motor Speed Control with Built-in PID and PLC Capabilities


Product Name Inverter 30KW 37KW 45KW 55KW 440V 480V Current Depend On Model
Voltage 380V-480V Frequency 50HZ-60HZ
Weight Depend On Model Warranty 24 Months
Brand VEIKONG Original China
Color Dark Blue And White Protection level IP20
GPRS Support Remote Control

Highlight

STO(Safe Torque off)function

TCP protocol

Fire mode in urgent situations

Rich communication card for options


PID Function Variable Frequency Inverters 30KW 37KW 45KW 55KW 440V 480V


VEIKONG Variable Speed Drive Inverter 30KW 37KW 45KW 55KW 440V 480V


Product Feature

1. VFD500 product feautures

1)Use IGBT module design instead of single tube igbt.
2)Support LED, optional dual display keypad, optional LCD keypad.
3)open loop and close loop control
4)optional STO function.
5)Fire mode function.
6)Modbus RTU, optional Modbus TCP, Can-Open, Profinet , Ethercat communications.
7)high frequency up to 3000Hz.
8)PC TOOL software.
9)Energy-savinig function
10)OEM / Customized solution.



VFD500 series frequency inverter is a powerful high-performance current vector inverter, which can realize the
control of the asynchronous motor, V/F control mode, one machine with multiple functions, can realize
multiple frequency switching, and can be used for textile, Drives for automated production equipment
such as papermaking, wIre drawing, machine tools, packaging, and food.

VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC

General Technical Data

Type Termina symbol Terminal name Terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Ananog ground Internal isolation from COM
Analog input voltage

AI1

 Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Ananog ground Internal isolation from COM


Company Profile

VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC

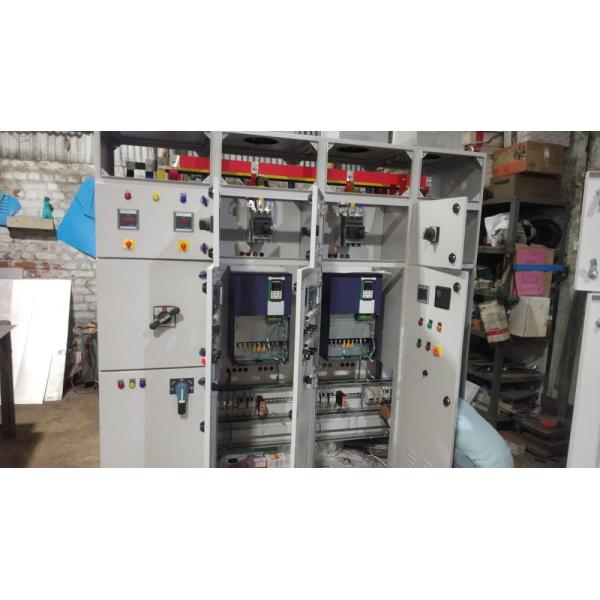

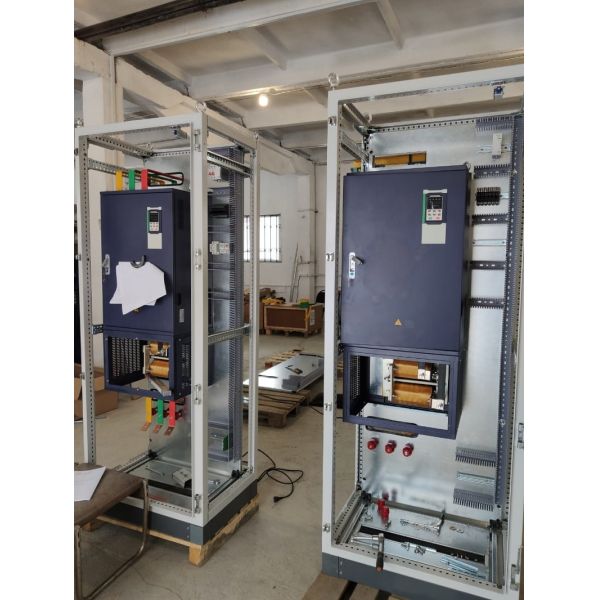

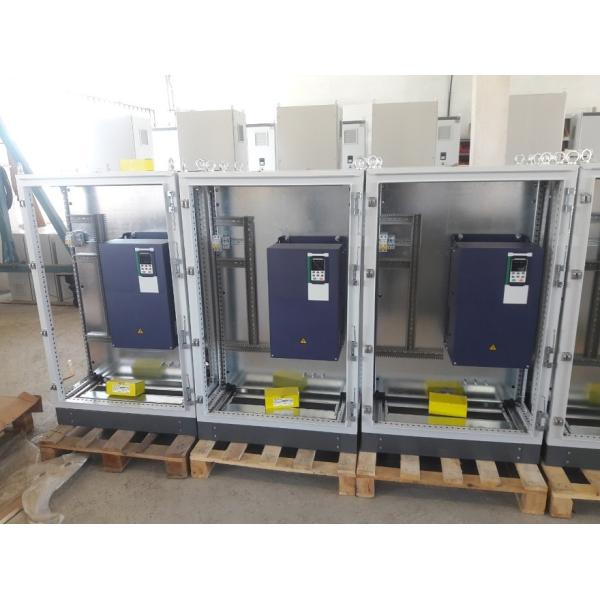

Production Application



VEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLCVEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLCVEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLCVEIKONG VFD500 45KW Variable Frequency Inverter with PID and PLC



3-phase inverter drive


sensorless vector VFD


smart inverter
