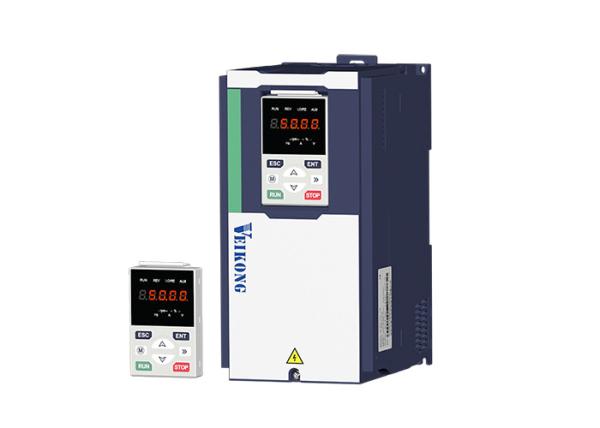

220v Single Phase Solar Pump Inverter 2.2kw 3hp 4kw 5hp
220v Single Phase Solar Pump Inverter 2.2kw 3hp 4kw 5hp
Specifications
Brand Name :
VEIKONG
Model Number :
VFD500-PV
Certification :
CE
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000pcs per Month
Delivery Time :
3 days, depend on the order quantity
Packaging Details :
the power less than 45kw use Carton, starting from 45kw use Wooden case
Product Name :
solar pump controller
Output type :
single phase or three Phase
Voltage :
220v 380v
Efficiency :
99%
IP LEVEL :
IP20 IP55
Rated power :
1hp 2hp 3hp 5hp 10hp
Description

220v Single Phase three phase Solar Pump Inverter 2.2kw 3hp 4kw 5hp

Veikong is solar pump inverter manufacturer

Key Advantages:

1, VEIKONG SOLAR PUMP INVERTER support 220V 0.75kw to75kw, and 380v 0.75kw to 710kw.

2, MPPT 99%, adjust the output frequency to the appropriate frequency in real-time.

3, Light weak protection, dry run and low voltage,full water warning, overvoltage and overtemperature protection.

4, New keyboard design, support optional LCD keypad, simple appearance, and easy operation.

5, Automatic running without any commisioning in keypad control and GPRS monitoring option(as option).

6, Support AC pump and PMSM pump.

7, VFD500-PV series solar water pump controller integrates the latest MPPT technology, high-quality IGBT solutions,

high efficiency, stability and sustainability.

Electrical Specifications and Power degree

220V 380V
Max input DC voltage 450V 810V
DC voltage range 150~450VDC 300~810VDC
Normal working DC voltage 260V-400V 400V-650V
Recommended input mppt voltage 330V 550V
MPPT efficiency >99%
Rated output voltage 1/3-phase 220VAC 3-phase 380-480VAC
Output frequency range 50/60Hz
Max efficiency of the machine 99%
Power range 220v 0.75kw to 75kw, 380v 1.5kw-160kw
Cooling method Air cooling
Protection degree IP20/IP65
Altitude Below 1000m; above 1% for every additional 100m.
Standard CE/ROHS

Product Application

220v Single Phase Solar Pump Inverter 2.2kw 3hp 4kw 5hp

Accessories:

1. GPRS (support 2g/3g/4g internet)

2. LCD keypad

3. Output reactor

For 220V single phase motor connection

1: Single phase asynchronous motor wiring method (without starting capacitor):

Notice: U is connected to the common end of the starting winding and the working winding, V is connected to the starting winding, and W is connected to the working winding;

Single-phase asynchronous motor if the rotary steering is not correct, you can change the V and W wiring or set P22.13=1.

First solution: Set parameter P11.01=1 (Single phase motor type without capacitor) or second solution: set P00.11=31 if your motor frequency is 50 hz or set P00.11=32 if your motor frequency is 60HZ

For 220V single phase motor connection

2: Single-phase asynchronous motor wiring method (with capacitor)

Notice1: First solution: Connect motor cable to power terminal U and V and enter BSC mode to Set parameter P23.15=0(output phase loss shielding protection) or second solution: set macro P00.11=21 if your motor frequency is 50HZ or set P00.11=22 if your motor frequency is 60HZ

Product tags

3 phase solar pump inverter

,

single phase solar pump inverter

,

solar pump inverter
