Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
HT-780
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Negotiable
Model :
HT-780
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
7300W
Cooling Capacity(-18℃) :
4350W
Application Box Volume :
≤32 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Guangyu
Compressor Mode :
GY21
Compressor Displacement :
209 CC
Condenser :
Parallel Flow Condenser
Evaporator :
Inner grooved copper tube&aluminum Fin
Description
HT-780 Refrigeration Unit for Cold Transportation Trucks & Vans
The HT-780 refrigeration unit is engineered for reliable temperature control in refrigerated trucks, vans, and lorries. Designed specifically for volumes up to 32m³, this system ensures optimal preservation of chilled and frozen goods during transport.
Key Advantages
  • Direct engine drive system for efficient operation
  • Specifically designed for 40m³ refrigerated transport vehicles
  • Ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
  • OEM customization services available
  • Low operational and maintenance costs
  • Easy installation process
  • Suitable for long-distance transportation requirements
Technical Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion-resistant, high-strength FRP canning material
  • Aluminum fin parallel flow condenser - lightweight, compact design with superior heat exchange
  • Inner grooved copper tube evaporator with large airflow and enhanced coil protection
  • Robust, reliable compressor specifically engineered for R404a systems
  • Digital display control panel for minimal operation complexity
  • High and low pressure switch safety protection
  • Large cooling capacity with dependable performance

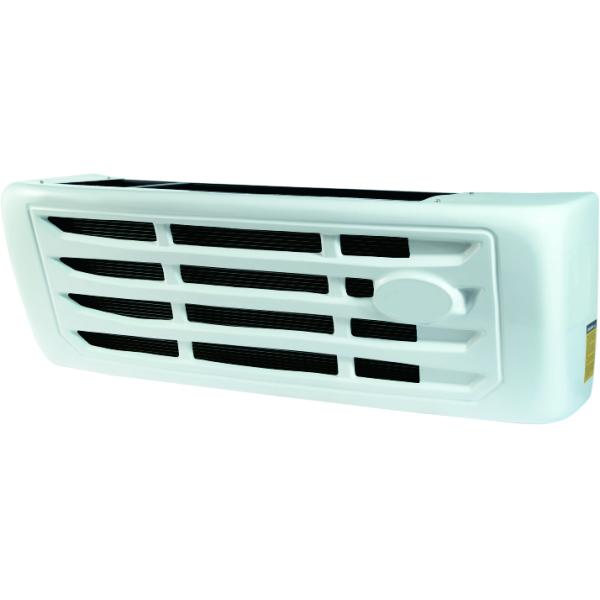

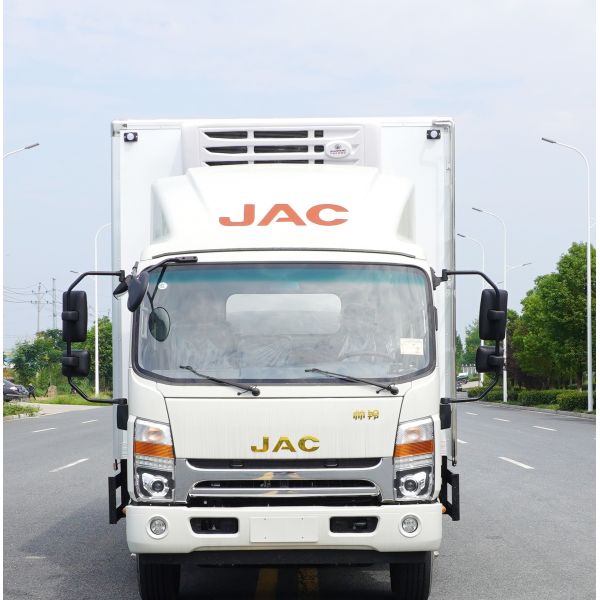

Product Images
Refrigeration Unit for Cold Transportation HT-780 Refrigeration Unit for Cold Transportation HT-780
Refrigeration Unit for Cold Transportation HT-780 Technical Specifications
Unit Model HT-780
Applicable Temperature -25°C To +25°C
Box Volume ≤32m³
Cooling Capacity (0℃/+30℃) 7300 W
Cooling Capacity (-18℃/+30℃) 4350 W
Compressor Model GY21
Compressor Capacity 209 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 3 PCS
Condenser Material Parallel flow condenser
Condenser Fans 2 PCS
Refrigerant R404a
Refrigerant Charge 3.0KG
Temperature Control Electronic digital display
Safety Protection High and low pressure switch
Defrosting System Hot gas defrost automatically
Evaporator Weight 33 KG
Condenser Weight 55 KG
Evaporator Dimensions 1240×600×345
Condenser Dimensions 1480×500×510
Drive Model Non-independent engine driven
