Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
Specifications
Brand Name :
Yinhuasheng/OEM
Model Number :
HT-380
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
TT/LC
Supply Ability :
1000 sets per month
Delivery Time :
Negotiable
Packaging Details :
Customized packaging
Model :
HT-380
Temperature Range :
-25°C To +25°C
Cooling Capacity(0℃) :
3510W
Cooling Capacity(-18℃) :
1970W
Application Box Volume :
≤14 m3
Outside Temperature :
30°C To 50 °C
Compressor Brand :
Dayin
Compressor Mode :
5H14
Compressor Displacement :
135 CC
Description
Truck Refrigeration Unit for Cooling Transportation Box Volume ≤14m³ HT-380
The HT-380 Lorry Refrigeration Unit is an ideal solution for refrigerated trucks, designed for maximum performance and reliability. Featuring a white finish and 220V/50Hz voltage specification, this unit combines advanced engineering with efficient cooling technology. The evaporator coil is optimized for maximum efficiency, while the R134a refrigerant ensures reliable operation and peak cooling performance.
Technical Parameters
Parameter Specification
Unit Model HT-380
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤14m³
Cooling Capacity
0℃
3510 W
-18℃
1970 W
Compressor
Model
5H14
CC
138 CC
Lubricating Oil
PAG 68
Evaporator
Material
Inner grooved copper tube
Number of Fans
2 PCS
Condenser
Material
Parallel flow condenser
Number of Fans
2 PCS
Refrigerant R404a
Refrigerant Charge 1.3KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight & Dimensions
Evaporator Weight
17 KG
Condenser Weight
26 KG
Evaporator Dimensions
1010×580×210 mm
Condenser Dimensions
1040×470×310 mm
Drive Model Non-independent engine driven

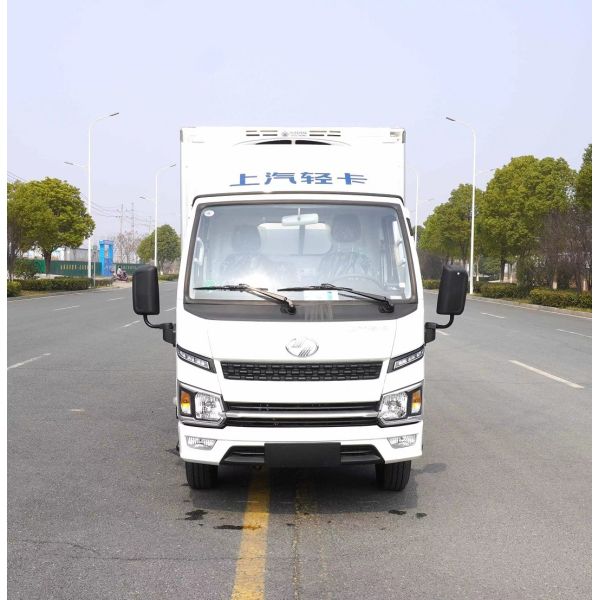

Installation Pictures


Truck Refrigeration Unit for cooling transportation box volume ≤14m³ HT-380
