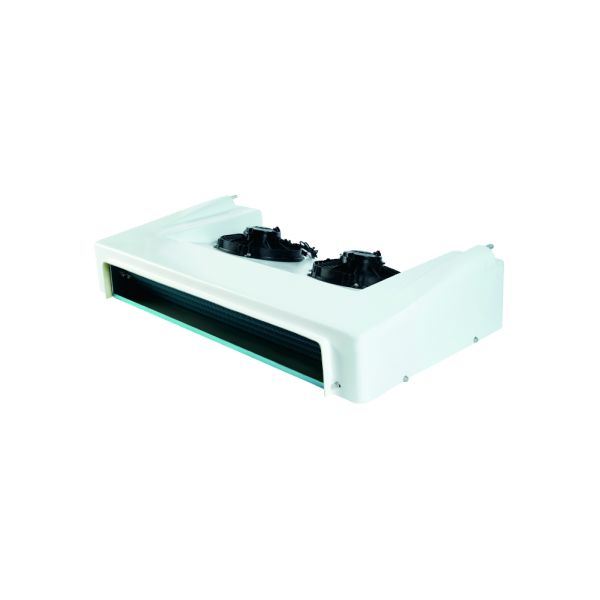

X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks
X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks
X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks
X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks
Specifications
Brand Name :
YINHUASHENG
Model Number :
X-58
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CAGE/CARTOON
Unit Model :
X-58
Applicable Temperature (℃) :
-25℃ ~ +25℃
Box Volume (m³) :
≤14m³
Refrigerant :
R404a
Refrigerant Charge :
1.2KG
Safety Protect :
High and low pressure switch
Applicable Temperature :
-25℃ ~ +25℃
Box Volume :
≤14m³
Cooling Capacity :
3250 W @ 0℃, 1830 W @ -18℃
Description
X-58 Top Mounted Vehicle Refrigeration System for Truck
Product Overview
The X-58 is a top-mounted refrigeration system designed for refrigerated trucks and vans. This direct-drive system is engineered for 14m³ vehicles and is ideal for transporting chilled and frozen foods, medical supplies, fruits, vegetables, ice cubes, seafood, and other temperature-sensitive goods.
  • Top-mounted installation on refrigeration vans and trucks
  • Direct drive by vehicle engine
  • OEM customized services available
  • Low operational and service costs
  • Easy installation process
  • Suitable for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion resistant and high strength FRP canning material
  • Aluminium fin parallel flow condenser, light and compact with excellent heat exchange
  • Inner grooved copper tube with strong evaporator, large airflow and superior evaporator coil protection
  • Strong, reliable and stable compressor specially designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Technical Specifications
Parameter Specification
Unit Model X-58
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤14m³
Cooling Capacity 3250 W @ 0℃
1830 W @ -18℃
Compressor Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 2 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 2 PCS
Refrigerant R404a
Refrigerant Charge 1.2KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator: 15 KG
Condenser: 27 KG
Evaporator: 910*570*210 mm
Condenser: 1150*690*250 mm
Drive Model Non-independent engine driven
Product Images
X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks X-58 Top Mounted Vehicle Refrigeration System with Parallel Flow Condenser and Inner Grooved Copper Tube for Trucks
