X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport
X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport
X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport
X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport
Specifications
Brand Name :
YINHUASHENG
Model Number :
X-28
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CAGE/CARTOON
Unit Model :
X28
Applicable Temperature (℃) :
-25℃ ~ +25℃
Box Volume (m³) :
≤6m³
Refrigerant :
R404a
Refrigerant Charge :
0.8KG
Applicable Temperature :
-25℃ ~ +25℃
Box Volume :
≤6m³
Cooling Capacity :
2150 W @ 0℃, 1130 W @ -18℃
Compressor Model :
5H14
Description

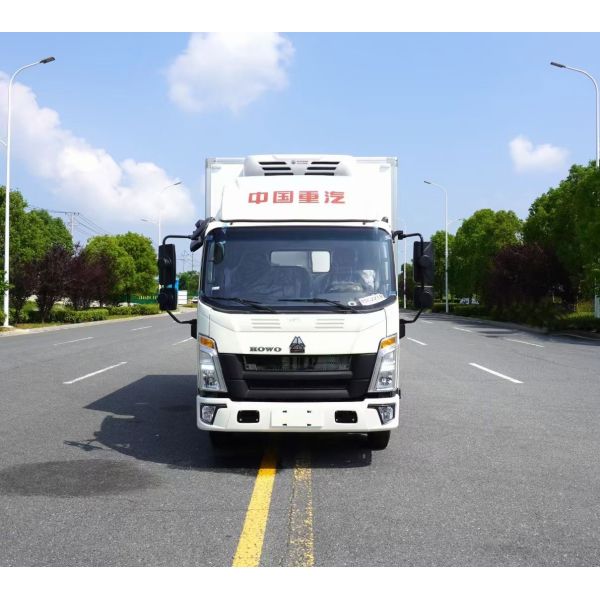

X-28 Van Refrigeration System (Top-mounted)
Product Overview
The X-28 is a direct engine-driven refrigeration system designed for 40m³ refrigerated trucks. This top-mounted unit provides reliable temperature control for transporting chilled and frozen goods across long distances.
  • Direct engine drive system
  • Ideal for 40m³ refrigerated trucks
  • Suitable for chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
  • OEM customization services available
  • Low operational and service costs
  • Easy installation process
  • Optimized for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion-resistant, high-strength FRP canning material
  • Aluminum fin parallel flow condenser - lightweight, compact, with excellent heat exchange performance
  • Inner grooved copper tube with powerful evaporator - large airflow with superior coil protection
  • Strong, reliable compressor specifically designed for R404a systems
  • Digital display control panel with minimal operation steps
  • HP (High Pressure) and LP (Low Pressure) switch safety protection
  • Large cooling capacity and reliable overall performance
Technical Specifications
Parameter Specification
Unit Model X28
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤6m³
Cooling Capacity 2150 W @ 0℃
1130 W @ -18℃
Compressor Model: 5H14
CC: 138 CC
Lubricating Oil: PAG 68
Evaporator Material: Inner grooved copper tube
Number of Fans: 1 PCS
Condenser Material: Parallel flow condenser
Number of Fans: 1 PCS
Refrigerant R404a
Refrigerant Charge 0.8KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Weight/Dimensions Evaporator Weight: 13 KG
Condenser Weight: 21 KG
Evaporator Dimensions: 780×580×210 (mm)
Condenser Dimensions: 960×690×250 (mm)
Drive Model Non-independent engine driven


X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport


X-28 Van Refrigeration System with Direct Engine Drive R404a Refrigerant and Parallel Flow Condenser for Long-Distance Transport
