HT-1390 Engine-Driven Refrigeration Unit for 60m³ Refrigerated Trucks with 11500W Cooling Capacity and Corrosion Resistant FRP Canning
HT-1390 Engine-Driven Refrigeration Unit for 60m³ Refrigerated Trucks with 11500W Cooling Capacity and Corrosion Resistant FRP Canning
Specifications
Packaging Details :
WOODEN CASE/CARTOON
Cooling Capacity (-18℃/+30℃) :
6300 W
Box Volume :
≤60m³
Compressor CC :
380/313 CC
MOQ :
1PCS
Brand Name :
YINHUASHENG
Applicable Temperature(℃) :
-25℃ ~ +25℃
Unit Model :
HT-1390
Supply Ability :
1000
Compressor Model :
JS38/QP31
Certification :
CE/ISO
Price :
negotiation
Model Number :
HT-1390
Delivery Time :
20
Box Volume (m³) :
≤60m³
Place of Origin :
CHINA
Cooling Capacity (0℃/+30℃) :
11500 W
Cooling Capacity (0℃) :
11500 W
Payment Terms :
L/C,T/T
Applicable Temperature :
-25℃ ~ +25℃
Cooling Capacity (-18℃) :
6300 W
Description
HT-1390 Engine-Driven Refrigeration Unit for 60m³ Refrigerated Trucks
Product Overview
  • Direct engine drive system
  • Designed for 60m³ refrigerated trucks, powered by vehicle engine
  • Ideal for transporting chilled & frozen foods, medical supplies, fruits, vegetables, ice cubes, and seafood
  • OEM customization services available
  • Low operational and service costs
  • Easy installation process
  • Suitable for long-distance transportation
Key Features
  • Eco-friendly refrigerant R404A (R134a system also available)
  • Corrosion-resistant, high-strength FRP canning material
  • Aluminum fin parallel flow condenser - lightweight, compact design with excellent heat exchange
  • Inner grooved copper tube evaporator with strong construction, large airflow, and superior coil protection
  • Strong, reliable, and stable compressor specifically designed for R404a systems
  • Digital display control panel for minimal operation
  • HP and LP switch safety protection
  • Large cooling capacity with reliable performance
Technical Specifications
Unit Model HT-1390
Applicable Temperature -25℃ ~ +25℃
Box Volume ≤60m³
Cooling Capacity (0℃/+30℃) 11500 W
Cooling Capacity (-18℃/+30℃) 6300 W
Compressor Model JS38/QP31
Compressor CC 380/313 CC
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Evaporator Fans 3 PCS
Condenser Material Parallel flow condenser
Condenser Fans 3 PCS
Refrigerant R404a
Refrigerant Charge 4.8KG
Box Temperature Adjustment Electronic digital display
Safety Protection High and low pressure switch
Defrosting Hot gas defrost automatically
Evaporator Weight 43 KG
Condenser Weight 65 KG
Evaporator Dimensions 1510*670*350
Condenser Dimensions 1920*410*400
Drive Model Non-independent engine driven

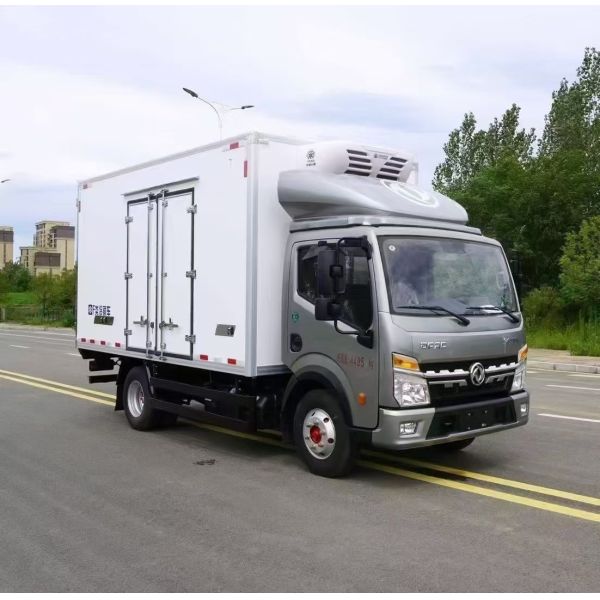

Product Images
HT-1390 Engine-Driven Refrigeration Unit for 60m³ Refrigerated Trucks with 11500W Cooling Capacity and Corrosion Resistant FRP Canning HT-1390 Engine-Driven Refrigeration Unit for 60m³ Refrigerated Trucks with 11500W Cooling Capacity and Corrosion Resistant FRP Canning
