EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant
EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant
EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant
EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant
Specifications
Brand Name :
YINHUASHENG
Model Number :
EV-600
Certification :
CE/ISO
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotiation
Payment Terms :
L/C,T/T
Supply Ability :
1000
Delivery Time :
20
Packaging Details :
WOODEN CASE/CARTOON
Unit Model :
EV-600
Applicable Temperature (℃) :
-25℃ ~ +25℃
Box Volume (m³) :
≤22m³
Refrigerant :
R404a
Refrigerant Charge :
1.8KG
Applicable Temperature :
-25℃ ~ +25℃
Box Volume :
≤22m³
Cooling Capacity :
5750 W at 0℃, 3380 W at -18℃
Evaporator Dimensions :
1130*650*220 (mm)
Condenser Dimensions :
1500*650*530 (mm)
Description
Refrigerated Truck Refrigeration Unit (Model: EV-600)
Product Overview

Powered by the vehicle battery, our EV-600 unit is specially designed for NEV (New Energy Vehicle) full electric trucks. It is widely used for refrigerated truck boxes with a size of 22m³. The embedded evaporator does not occupy the interior space of the carriage, maximizing the loading capacity.

Standard Features
  • Applicable for small and medium-sized new energy vehicles
  • High-grade (IP67) waterproof and insulation design, equipped with AC-DC interlock and four-in-one integrated design for enhanced safety and stability
  • Ultra-slim fiberglass evaporator or aluminum alloy evaporator, featuring large air flow for efficient and uniform cooling
  • Fully enclosed electric compressor: high efficiency, eco-friendly, and not affected by vehicle speed, ensuring stable cooling performance during driving
  • The compressor is built into the condenser unit, adopting a compact design to save installation space
  • Multi-functional LCD controller with precise temperature control, full data display and easy operation, equipped with fault codes and alarm functions for timely troubleshooting
  • No interference between charging and unit operation, which saves charging time and extends the service life of the vehicle battery
  • HP (High Pressure) and LP (Low Pressure) switch safety protection to prevent equipment damage due to abnormal pressure
  • Standard AC220V standby function for parking cooling, meeting the temperature control needs when the vehicle is stationary
Technical Specifications
Parameter Category Details Specification
Basic Information Unit Model EV-600
Applicable Temperature (℃) -25℃ ~ +25℃
Box Volume (m³) ≤22m³
Cooling Capacity (W) At 0℃ 5750 W
At -18℃ 3380 W
Compressor Model /
Lubricating Oil PAG 68
Evaporator Material Inner grooved copper tube
Number of Fans 2 PCS
Condenser Material Parallel flow condenser
Number of Fans 2 PCS
Voltage High Voltage DC250V-DC450V / DC380V-DC750V
Low Voltage Power DC-DC
Control Voltage DC12V (9-16V) / DC24V (16-32V)
Refrigerant & Control Refrigerant R404a
Refrigerant Charge 1.8KG
Refrigerant & Control Box Temperature Adjustment Electronic digital display
Safety & Defrosting Safety Protect High and low pressure switch
Defrosting Hot gas defrost automatically
Weight & Dimensions Evaporator Weight 24.5 KG
Condenser Weight ＜90 KG
Evaporator Dimensions 1130*650*220 (mm)
Condenser Dimensions 1500*650*530 (mm)
Drive Model - Full electric driven
Product Images

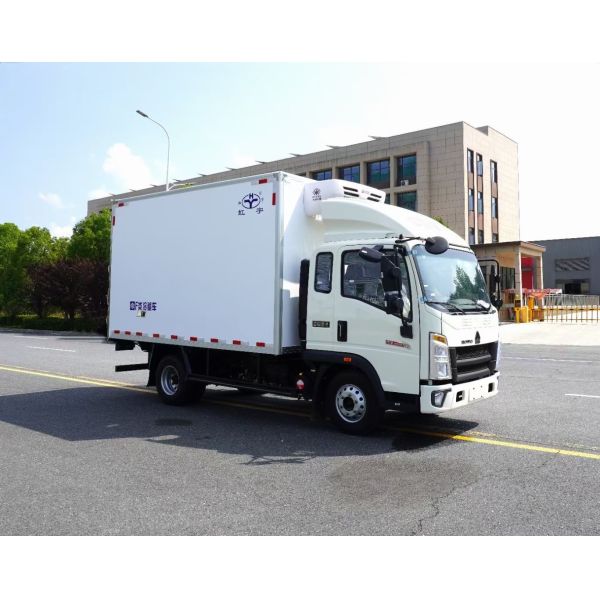

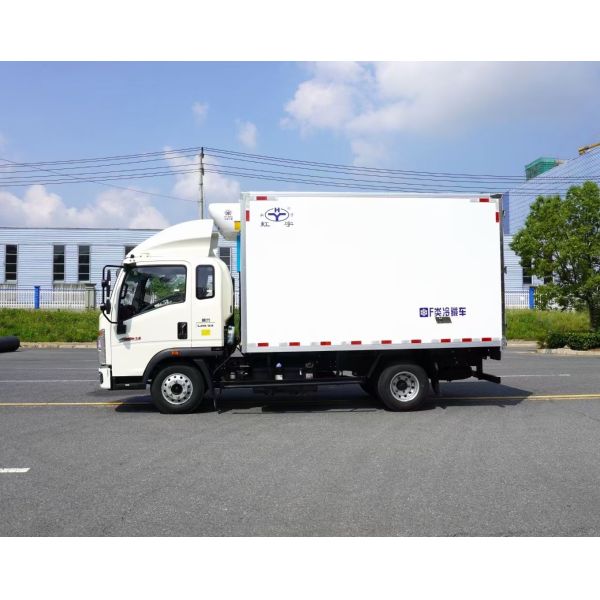

EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant EV-600 Refrigeration Unit for NEV Trucks with IP67 Waterproof Design and ≤22m³ Box Volume Using R404a Refrigerant
